Figure 5-18. Ready Signal Programming For A "Green Quick Check" Sensor - Wintriss SmartPAC2 User Manual

SmartPAC 2 User Manual
Green Quick Check Sensors
A sensor input set to "green quick check" must turn on, at least momentarily, within the
Ready signal and may not turn off outside the Ready signal (see Figure 5-18). In other words,
the sensor must turn on and turn off within the Ready signal.
KEY
OK
= Ready
Signal
= Sensor
ON
Sensor goes ON
Green
only inside ready
Quick Check
Sensor signal.

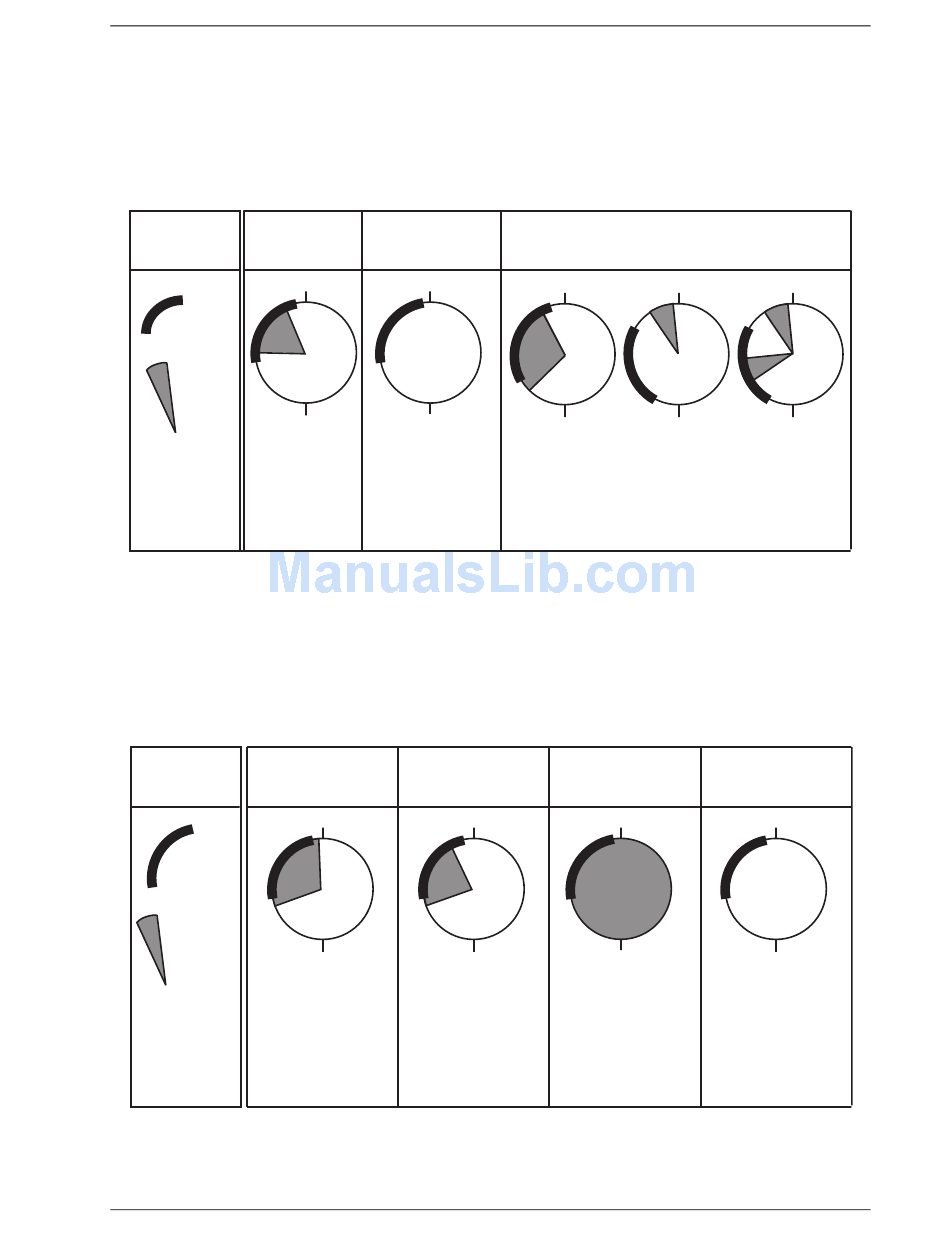

Figure 5-18. Ready Signal Programming for a "Green Quick Check" Sensor

Green Constant Sensors
When you set a sensor input to "green constant," the sensor must turn on before the Ready
signal begins and turn off after the Ready signal ends, remaining actuated continuously during
the entire Ready signal (see Figure 5-19).
KEY
= Ready
Signal
= Sensor
ON
Sensor staysON
during entire ready
Green
signal and goes OFF
Constant
at least momentarily
Sensor
outside the ready
signal.
Figure 5-19. Ready Signal Programming for a "Green Constant" Sensor
Program Mode
not allowed
(press stops)
TDC TDC
BDC BDC
Sensor never goes
ON.
Stop signal sent at
end of ready signal.
not allowed
OK
(press stops)
TDC TDC
BDC BDC
Sensor goes OFF
before ready signal
ends.
Stop signal sent
immediately.
not allowed
(press stops)
TDC TDC
BDC BDC
Sensor is ON outside ready signal.
Stop signal sent when sensor is ON outside ready
signal.
not allowed
(press stops)
TDC
BDC
Sensor never goes
OFF outside ready
signal.
Stop signal sent at
beginning of ready
signal.
1126700
TDC
BDC
not allowed
(press stops)
TDC
BDC
Sensor never goes
ON.
Stop Signal sent at
end of ready signal.
