3.2 Programming Cable

The RCM2200 is automatically in program mode when the
gramming cable is attached, and is automatically in run mode when no programming cable
is attached.
The DIAG connector of the programming cable may be used on header J5 of the RCM2200
with the board operating in the run mode. This allows the programming port to be used as an
application port. See Appendix E, "Programming Cable," for more information.
Program Mode
To PC COM port

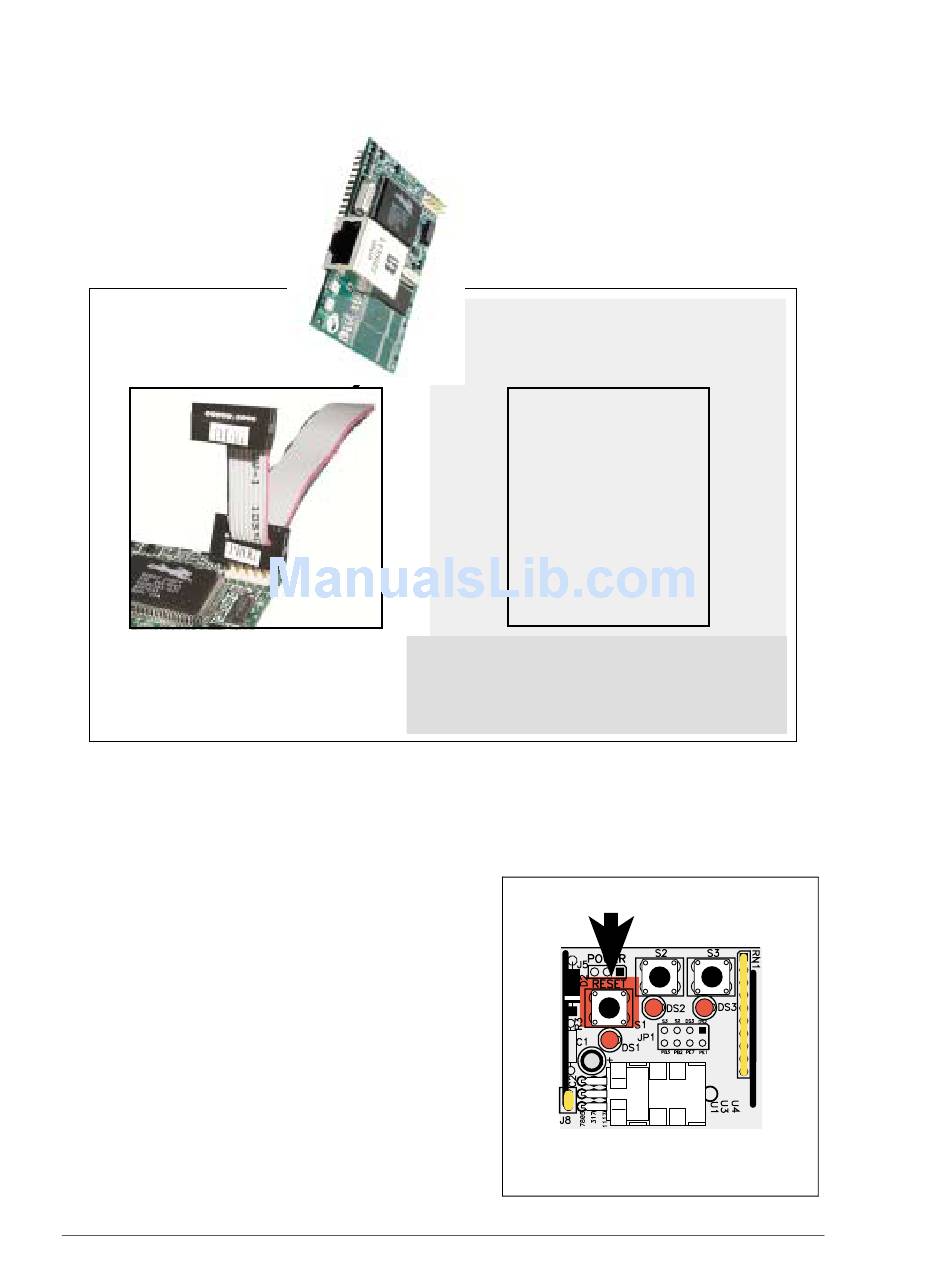

Figure 5. Switching Between Program Mode and Run Mode

3.2.1 Changing from Program Mode to Run Mode

1. Disconnect the programming cable from header J5 of the RCM2200.
2. Reset the RCM2200. You may do this as
explained in Figure 5.
The RCM2200 is now ready to operate in the run
mode.
3.2.2 Changing from Run Mode to
Program Mode
1. Attach the programming cable to header J3 on
the RCM2200.
2. Reset the RCM2200. You may do this as
explained in Figure 5.
The RCM2200 is now ready to operate in the
program mode.
14
PROG
Run Mode
RESET RCM2200 when changing mode:
Short out pins 9 and 26 on header J5,
Press RESET button (if using Prototyping Board),
Remove, then reapply power
after removing or attaching programming cable.
Figure 6. Location of Reset Button
on Prototyping Board
connector on the pro-
OR
OR
