It is recommended that you allow for an "exclusion zone" of 0.04" (1 mm) around the
RCM2200 in all directions when the RCM2200 is incorporated into an assembly that
includes other printed circuit boards. This "exclusion zone" that you keep free of other
components and boards will allow for sufficient air flow, and will help to minimize any
electrical or EMI interference between adjacent boards. An "exclusion zone" of 0.12"
(3 mm) is recommended below the RCM2200 when the RCM2200 is plugged into
another assembly using the shortest connectors for headers J4 and J5. Figure A-2 shows
this "exclusion zone."
User's Manual
2.38
(60.4)
2.300
(58.4)
1.80
(45.7)
J5
1.600
(40.6)

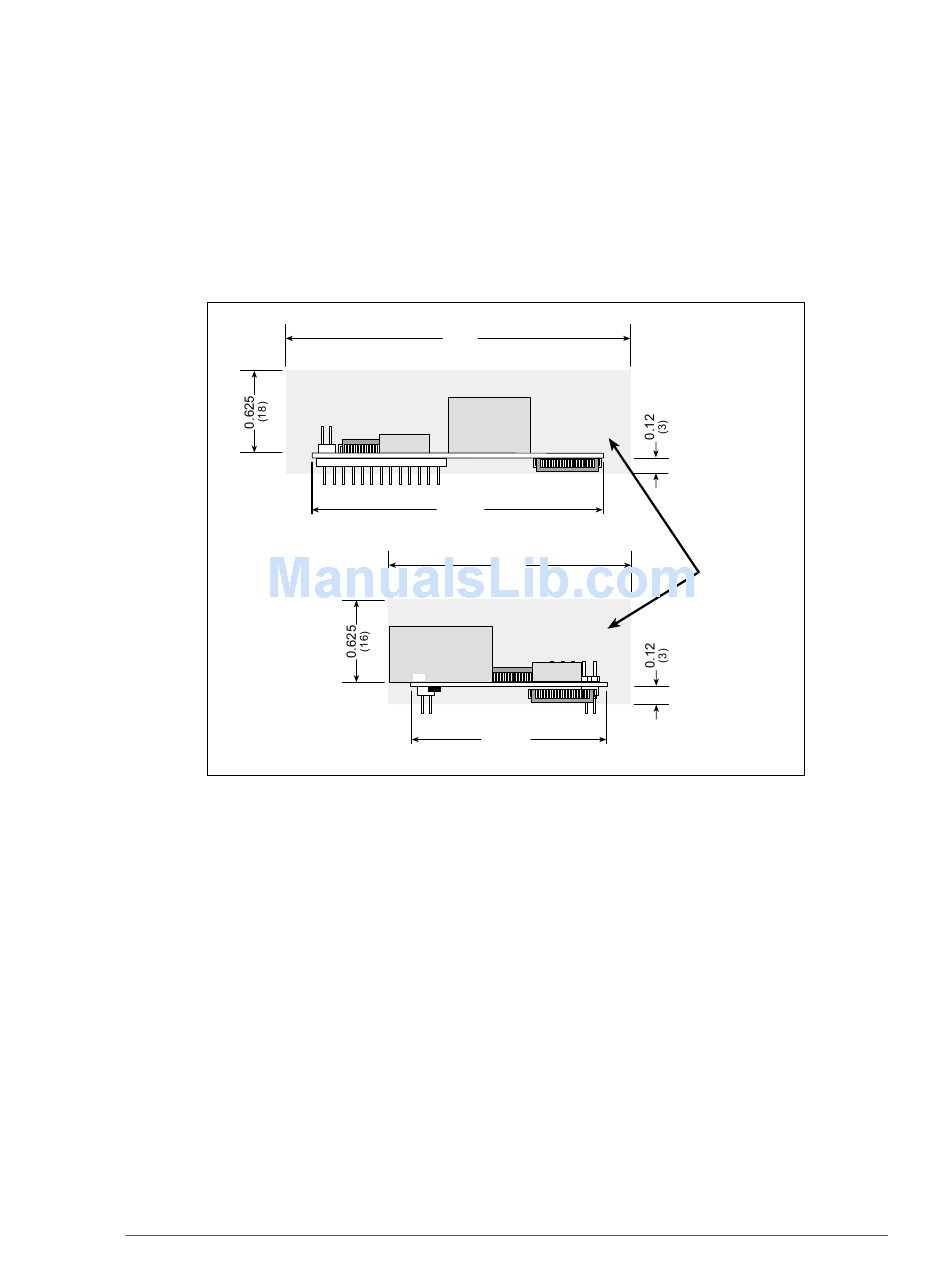

Figure A-2. RCM2200 "Exclusion Zone"
Exclusion
Zone
J4
23
