2.2.3 Step 3 — Connect Programming Cable
The programming cable connects the module to the PC running Dynamic C to download
programs and to monitor the module during debugging.
Connect the 10-pin connector of the programming cable labeled
the RCM4100 as shown in Figure 4. Be sure to orient the marked (usually red) edge of the
cable towards pin 1 of the connector. (Do not use the
normal serial connection.)
2
Programming
Cable

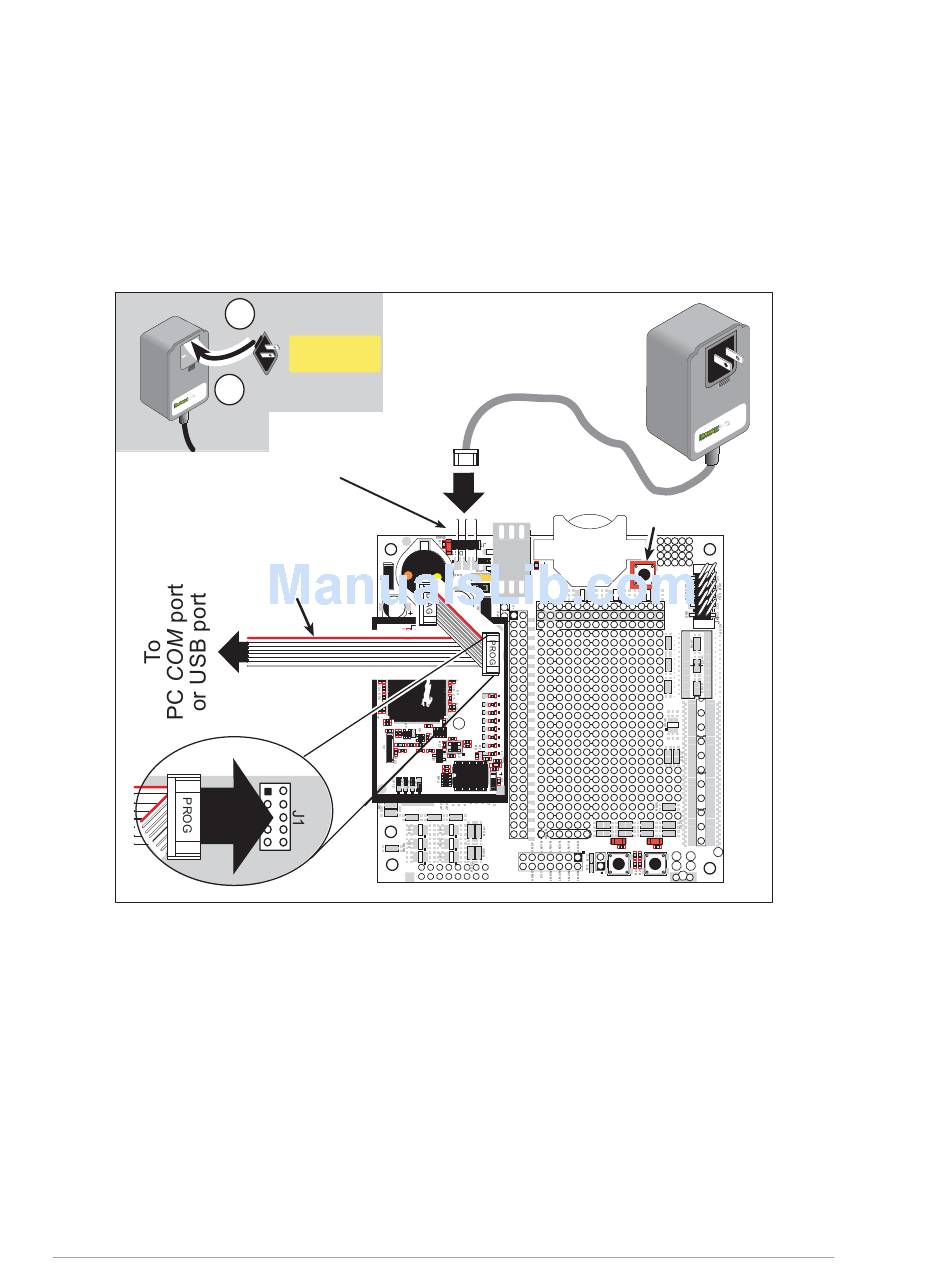

Figure 4. Connect Programming Cable and Power Supply
NOTE: Never disconnect the programming cable by pulling on the ribbon cable.
Carefully pull on the connector to remove it from the header.
NOTE: Either a serial or a USB programming cable was supplied with this Development
Kit. If you have a serial programming cable, an RS-232/USB converter (Rabbit Part
No. 20-151-0178) is available to allow you to use the serial programming cable with a
USB port.
Depending on the programming cable, connect the other end to a COM port or a USB port
on your PC.
