B.1 Mechanical Dimensions and Layout

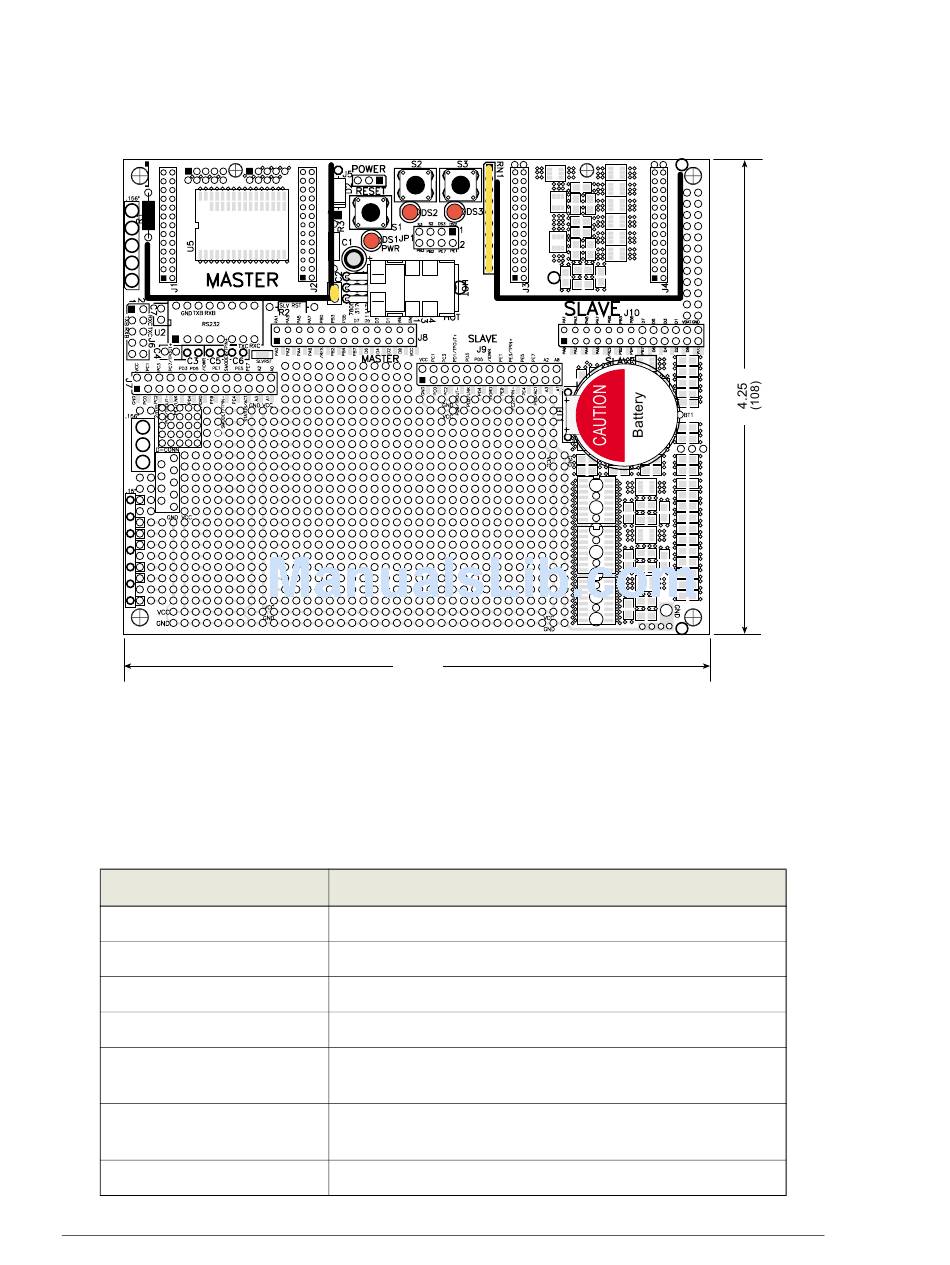

Figure B-1 shows the mechanical dimensions and layout for the RCM2200 Prototyping Board.
Figure B-1. RCM2200 Prototyping Board Dimensions
Table B-1 lists the electrical, mechanical, and environmental specifications for the Proto-
typing Board.
Table B-1. RCM2200 Prototyping Board Specifications
Parameter
Board Size
Operating Temperature
Humidity
Input Voltage
Maximum Current Draw
(including user-added circuits)
Prototyping Area
Standoffs/Spacers
34
5.25
(133)
Specification
4.25" × 5.25" × 1.00" (108 mm × 133 mm × 25 mm)
–40°C to +70°C
5% to 95%, noncondensing
7.5 V to 25 V DC
1 A at 12 V and 25°C, 0.7 A at 12 V and 70ºC
2.4" × 4.0" (61 mm × 102 mm) throughhole, 0.1" spacing,
additional space for SMT components
4, accept 6-32 × 3/8 screws
