prototyping area and the holes at locations J7 and J8. The holes are spaced at 0.1" (2.5 mm),
and 40-pin headers or sockets may be installed at J7 and J8. The pinouts for locations J7 and
J8, which correspond to headers J1 and J2, are shown in Figure B-4.
TPOUT-
/IORD
TPIN-
The small holes are also provided for surface-mounted components that may be installed
to the right of the prototyping area.
There is a 2.4" × 4" through-hole prototyping space available on the Prototyping Board.
VCC and GND traces run along the edge of the Prototyping Board for easy access. A
GND pad is also provided at the lower right for alligator clips or probes.
VCC trace
GND trace

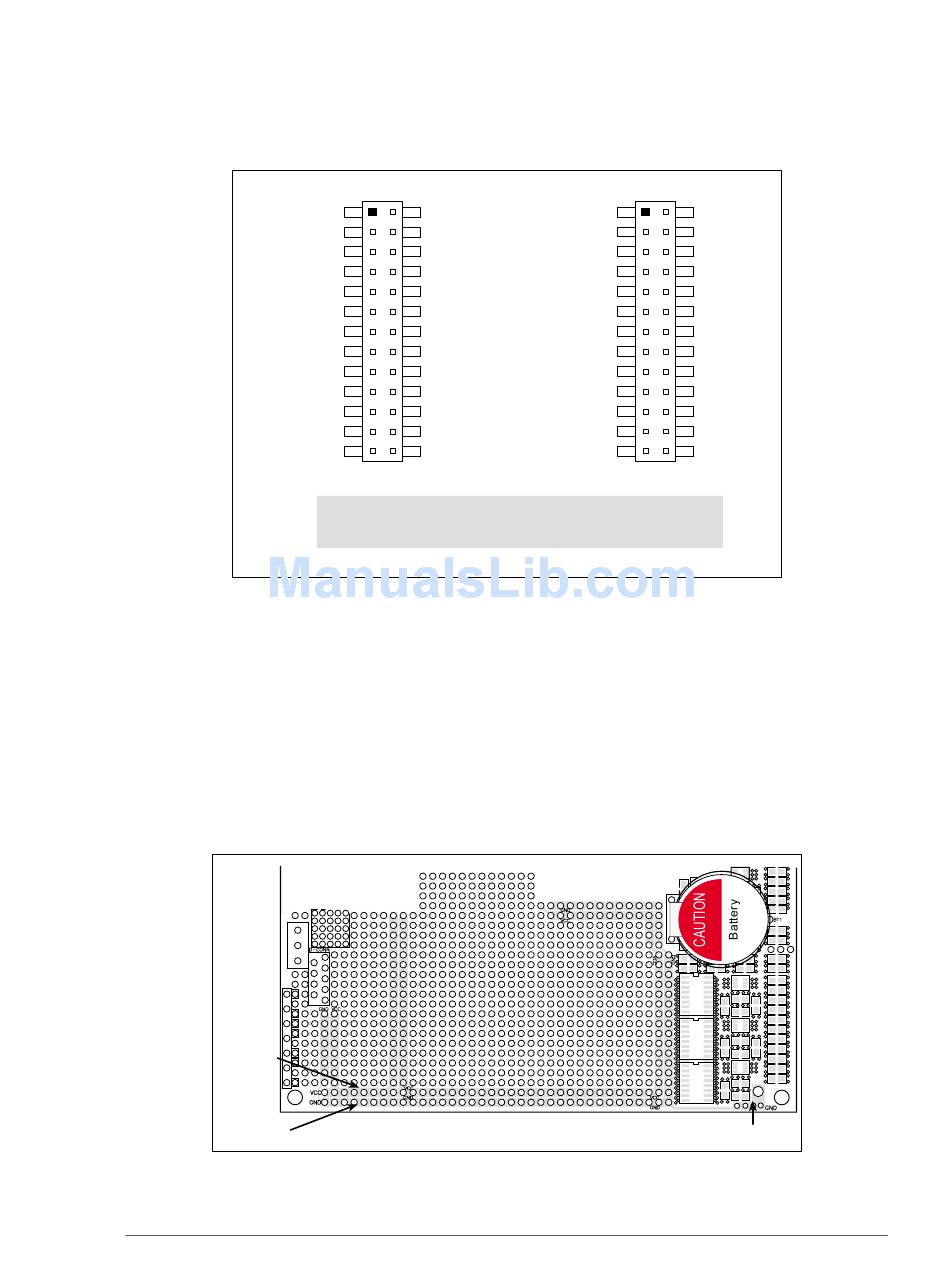

Figure B-5. VCC and GND Traces Along Edge of Prototyping Board
User's Manual
J7/J9
GND
VCC
PC0
PC1
PC2
PC3
TPOUT+
LNK
PD3
PD4 PD5
/IOWR
PE0
PE1
TPIN+
PE4
PE5
ACT
PE7
A3
A2
A1
A0
Note: These pinouts correspond to the
MASTER/SLAVE positions respectively.
Figure B-4. RCM2200 Prototyping Board Pinout
(Top View)
J8/J10
PA0 PA1
PA2 PA3
PA4 PA5
PA6 PA7
/RES PB0
PB2 PB3
PB4 PB5
PB7 D7
D6 D5
D4 D3
D2 D1
D0 VBAT
VCC GND
GND pad
