B.3.2 Attach Modules to Prototyping Board

Turn the RCM2200 module so that the Ethernet connector end of the module extends to

the right, as shown in Figure B-7 below. Align the module headers J4 and J5 into sockets

J1 and J2 (the

MASTER

into the Prototyping Board headers.

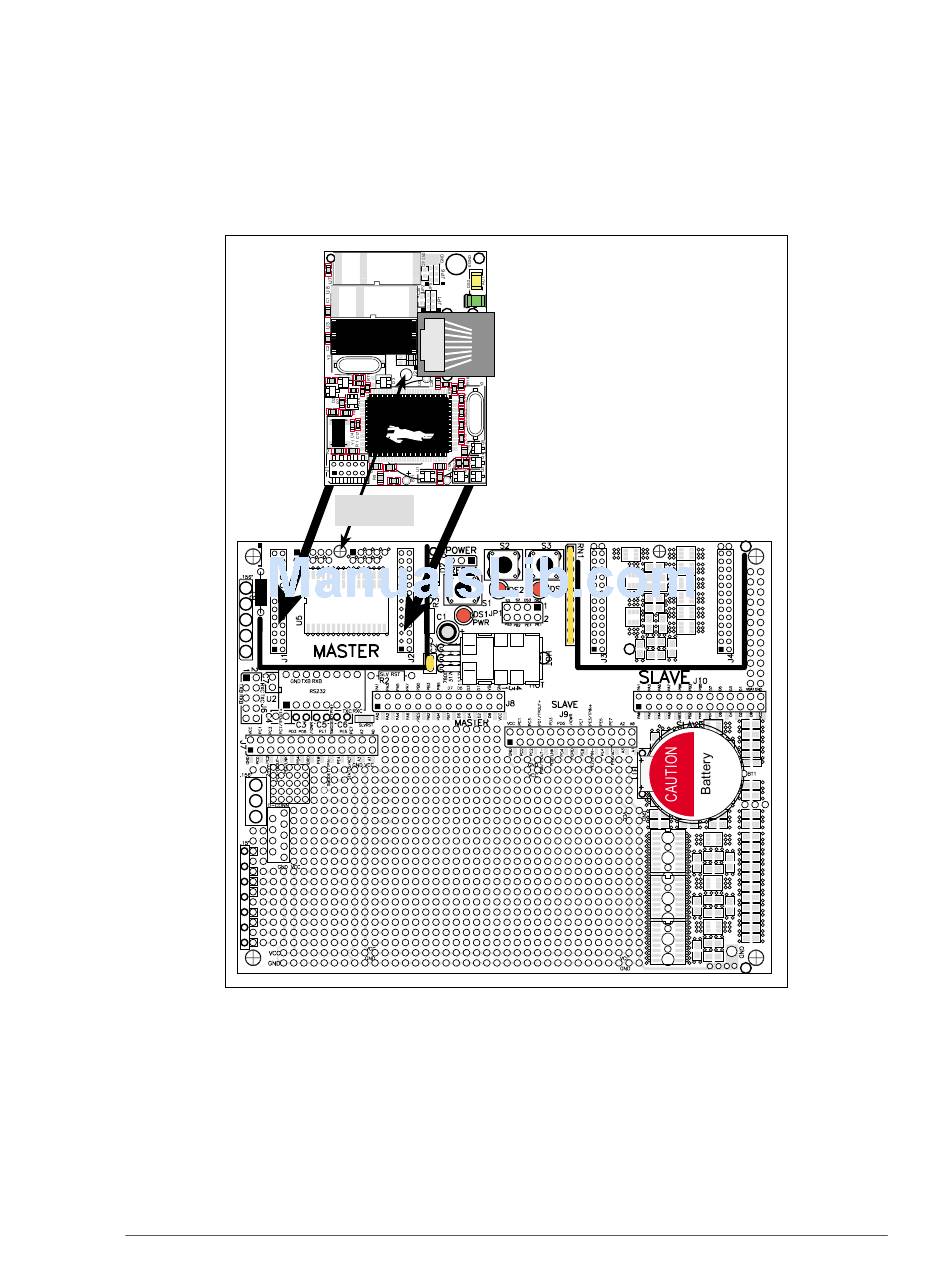

Figure B-7. Install the RCM2200 on the Prototyping Board

NOTE: It is important that you line up the pins of the module headers exactly with the

corresponding pins on the Prototyping Board. The header pins may become bent or

damaged if the pin alignment is offset, and the module will not work. Permanent elec-

trical damage to the module may also result if a misaligned module is powered up.

User's Manual

slots) on the Prototyping Board. Press the module's pins firmly

RCM2200

LNK

DS1

JP3

JP4

R41

R39

C25

R38

C27

R11

R13

Line up the

mounting holes
