CYP SY-4KS4K22 Operation Manual

Hdmi 4k scaler with dual outputs & hdcp converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
-4K22
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-4KS4K22 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP SY-4KS4K22

Summary of Contents for CYP SY-4KS4K22

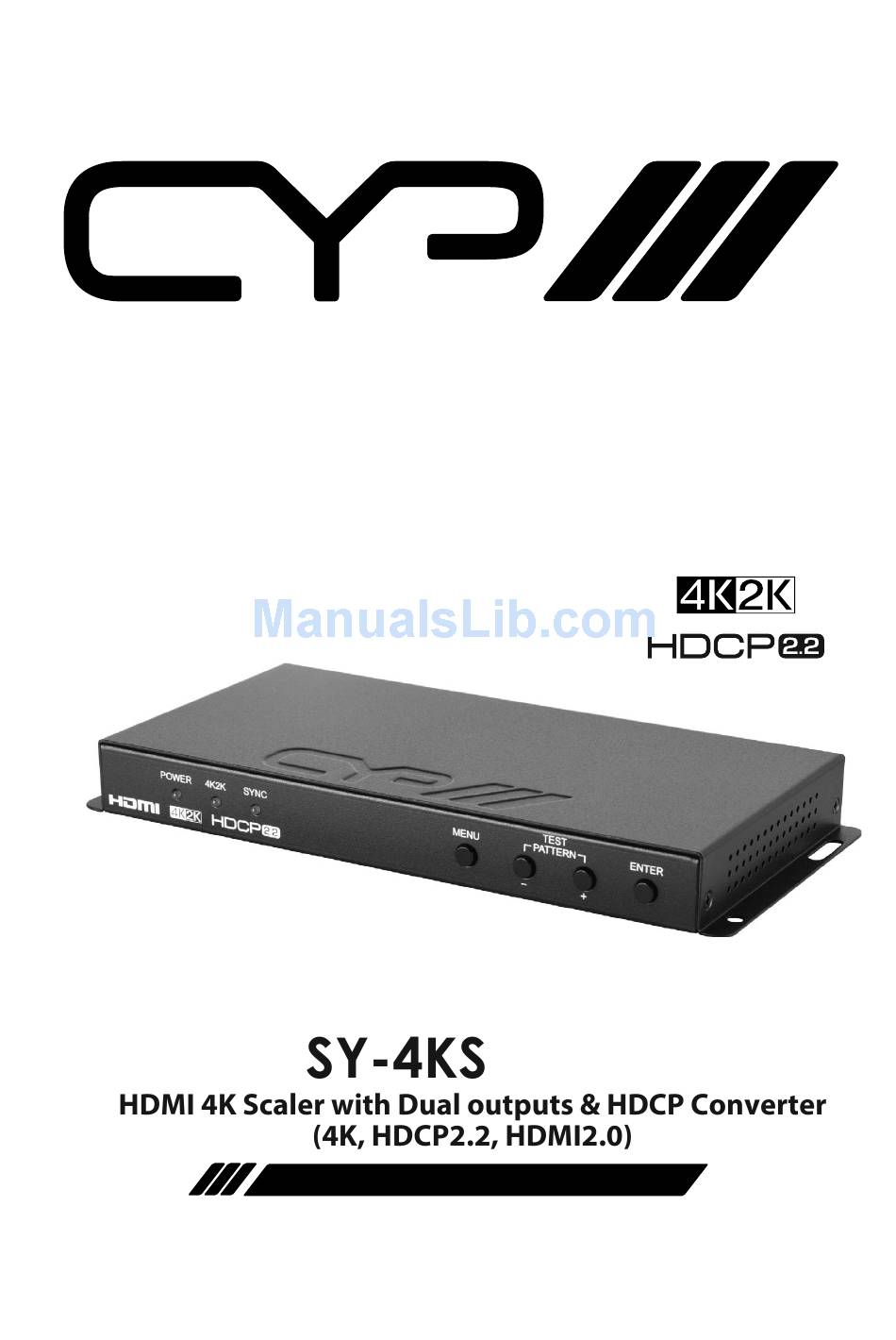

  • Page 1 -4K22 OPERATION MANUAL...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • electrical shock and injury to persons. •...

  • Page 3: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7.

  • Page 4: Introduction

    1. INTRODUCTION The 1 by 2 UHD Scaler with Audio De-Embedded is designed to upscale 1080p signal into 4K2K 6G or downscale 4K2K 6G signal into and simple design that allow user with direct viewing on input HDMI content and OSD that ease user with output settings/selection. Scaling signal up to 2 simultaneous HDMI output with two different resolutions or generate patterns to output display with assigned resolution between your HD and UHD signal.

  • Page 5: Features

    5. FEATURES • • Supports HDMI signal bypass on both outputs or upscale 1080p signal into 4K2K on output B and downscale 4K2K signal into 1080p on output A • Supports 4K2K@50/60 (4:4:4) to 4K2K@50/60(4:2:0) conversion • Supports auto pattern generation with assigned resolution for on-site display testing •...

  • Page 6: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel TEST TEST POWER POWER 4K2K 4K2K SYNC SYNC MENU MENU PATTERN PATTERN ENTER ENTER – – POWER LED: This LED will illuminate when the device is connected with power supply. 4K2K LED: This LED will illuminate when the input source contains 4K2K signal.

  • Page 7: Rear Panel

    6.2 Rear Panel AUDIO OUT DC 5V HDMI IN HDMI OUT SERVICE HDMI IN: This slot is to connect with source equipment such as PS3 or Blu-ray player. HDMI OUT: These slots are to connect with UHD display/TV for images display. Each output can be displaying with different timing and pattern and image.

  • Page 8: Osd Menu

    6.3 OSD Menu LEVEL LEVEL LEVEL LEVEL PASS THROUGH DOWN 1080P OUTPUT A INPUT 4K2K FIX 4K2K(420) FIX 8 BITS PASS THROUGH INPUT 1080P OUTPUT UP 4K2K UP 4K2K(420) OUTPUT B PASS THROUGH INPUT 4K2K FIX 4K2K(420) FIX 8 BITS YES/NO YES/NO YES/NO...
  • Page 9 LEVEL LEVEL LEVEL LEVEL REFER TO REFER TO DISPLAY DISPLAY INFO. OSD TIME OUT 40 SEC. MODE AUTO PATTERN AUTO TIMING WHITE COLOR TEST PATTERN A MEGENTA PATTERN...
  • Page 10 LEVEL LEVEL LEVEL LEVEL RAMP TOGGLE 720X480P@60 720X576P@50 1280X720P@50 1280X720P@60 1920X1080P@50 RESOLUTION 1920X1080P@60 3840X2160P@24 3840X2160P@25 3840X2160P@30 4096X2160P@24 4096X2160P@25 4096X2160P@30 DISABLE ENABLE 10 SEC. 1 MIN. 2 MIN.
  • Page 11 LEVEL LEVEL LEVEL LEVEL TEST PATTERN A 3 MIN. 5 MIN. 720X480P@60 YES/NO 720X576P@50 YES/NO 1280X720P@50 YES/NO 1280X720P@60 YES/NO 1920X1080P@50 YES/NO 1920X1080P@60 YES/NO AUTO TIMING NEXT PAGE 3840X2160P@24 YES/NO 3840X2160P@25 YES/NO 3840X2160P@30 YES/NO 4096X2160P@24 YES/NO 4096X2160P@25 YES/NO 4096X2160P@30 YES/NO PREVIOUS PAGE MODE AUTO PATTERN AUTO TIMING...
  • Page 12 LEVEL LEVEL LEVEL LEVEL MEGENTA PATTERN TEST PATTERN B RAMP TOGGLE 720X480P@60 720X576P@50 1280X720P@50 1280X720P@60 1920X1080P@50 1920X1080P@60 3840X2160P@24 3840X2160P@25 RESOLUTION 3840X2160P@30 4096X2160P@24 4096X2160P@25 4096X2160P@30 3840X2160P@50 3840X2160P@60 4096X2160P@50 4096X2160P@60 10 SEC.
  • Page 13 LEVEL LEVEL LEVEL LEVEL 1 MIN. 2 MIN. TEST PATTERN B 3 MIN. 5 MIN. DISABLE ENABLE 720X480P@60 YES/NO 720X576P@50 YES/NO 1280X720P@50 YES/NO 1280X720P@60 YES/NO 1920X1080P@50 YES/NO 1920X1080P@60 YES/NO NEXT PAGE 3840X2160P@24 YES/NO AUTO TIMING 3840X2160P@25 YES/NO 3840X2160P@30 YES/NO 4096X2160P@24 YES/NO 4096X2160P@25 YES/NO...
  • Page 14 LEVEL LEVEL LEVEL LEVEL PREVIOUS PAGE INPUT INFORMATION RESOLUTION OUTPUT A OUTPUT B OUTPUT A DISABLE/ENABLE OUTPUT B DISABLE/ENABLE FIRMWARE VERSION VX.XX FIRMWAR UPDATE SETTING Default settings are in Italian bold font Note:...

  • Page 16: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI IN HDMI OUT AUDIO OUT DC 5V SERVICE USB Flash Disk Active Speakers TV or Monitor...

  • Page 17: Specifications

    8. SPECIFICATIONS VideoBandwidth Output ports 15 m@1080p/8-bit, 10 m@1080p/12-bit, HDMI Cable Length 5 m@4K Power Supply Human body model: ESD Protection ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions Jack Included 616g Weight Metal Chassis Material Black Silkscreen Color Operating Temperature Storage Temperature 20~90% RH (no condensation) Relative Humidity...
  • Page 18 DVI and HDMI Supported Input Output...

  • Page 19: Acronyms

    Input Output Frequence Output THD+N Level Level/Freq Terminal Response HDMI HDMI 0dB~-1dB <0.01% ±1dB >80dB <-80dB 0dBFS 20、 Vrms±10% <0.1% ±3dB >70dB <-60dB 1K、 9. ACRONYMS ACRONYM COMPLETE TERM...
  • Page 20 CIE-Group, 3 Widdowson Close, Blenheim Industrial Estate, Nottingham NG6 8WB Tel: +44 (0)115 9770075 | Fax: +44 (0)115 9770081 Email: info@cie-group.com www.cie-group.com v1.00...
