SY-P293
PC to HDMI Converter and Scaler with Audio
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-P293 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP SY-P293

Summary of Contents for CYP SY-P293

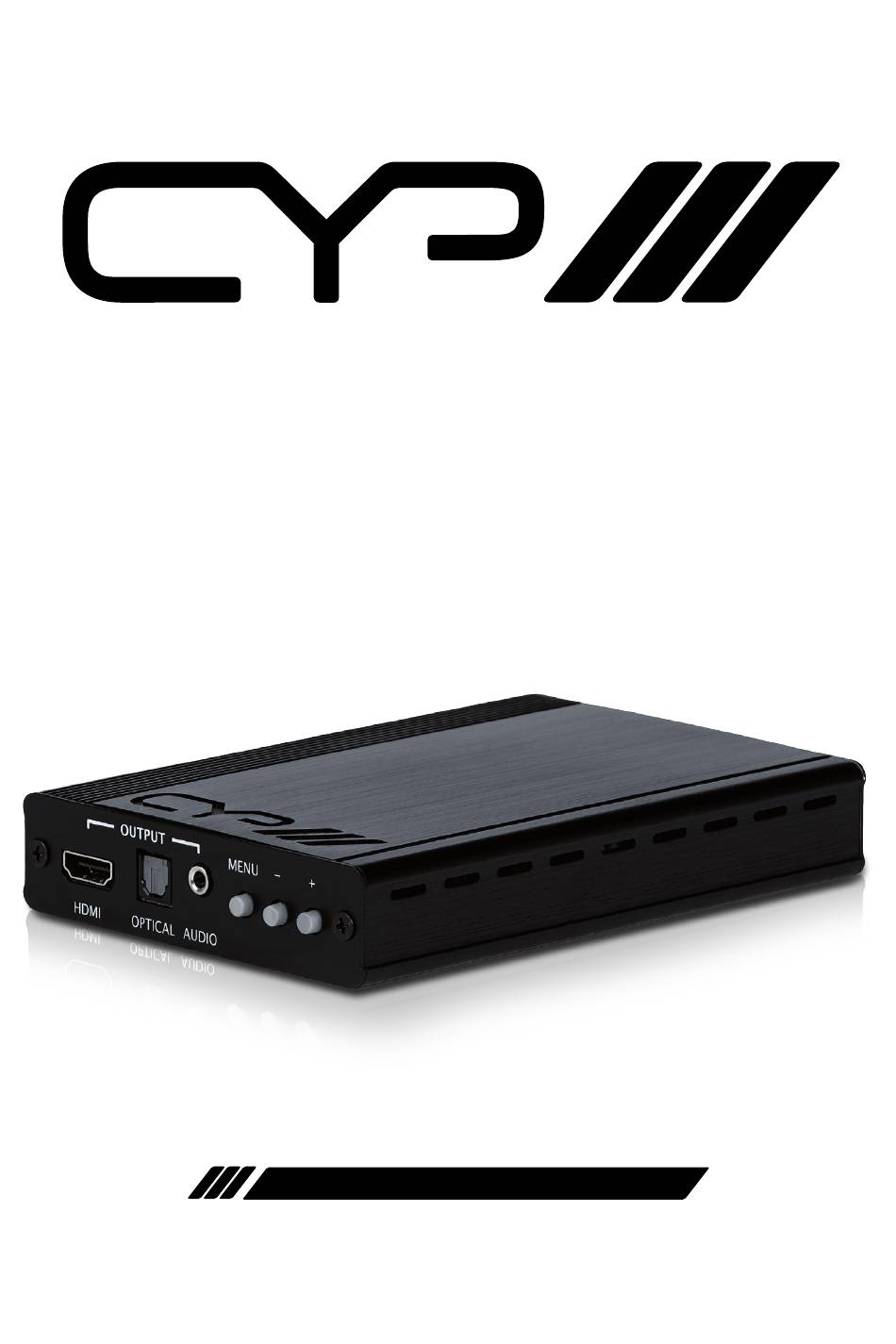

  • Page 1 SY-P293 PC to HDMI Converter and Scaler with Audio OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1.Introduction ..........6 2. Applications ...........6 3. Package Contents ........6 4. SYSTEM REQUIREMENTS .......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 OSD Menu Operations ......10 6.4 Supported Resolutions ......12 7.

  • Page 6: Introduction

    1.INTRODUCTION The SY-P293 is designed to scale analogue video signal from a PC source to a digital HDMI output boasting a wide-range of HDTV and PC resolutions. Audio is combined with HDMI video output. This unit offers a selection of colour space and adjustment to obtain the best picture quality.

  • Page 7: Features

    5. FEATURES  v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant  PC to HDMI Scaler Converter with Audio  Scales any PC resolutions to PC or HDTV resolutions  Resolutions Supported: PC - VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT DC 5V AUDIO OPTICAL PC Input: Connect the PC input D-Sub (15-pin) port to the D-Sub output port of your source equipment such like PC. Audio Input: Connect the PC 3.5mm phone jack input port to the analogue audio output port of your source equipment.

  • Page 9: Rear Panel

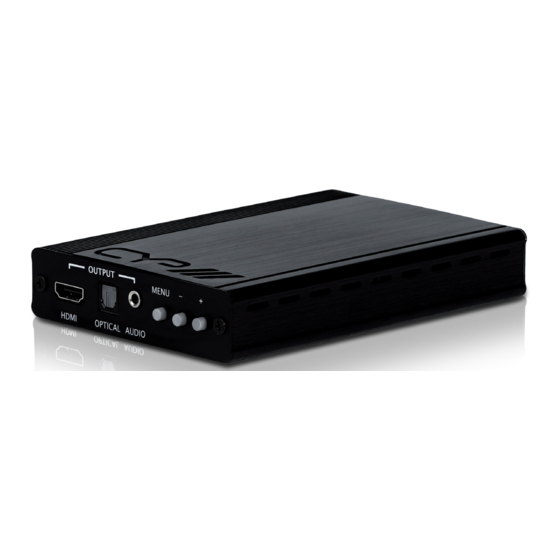

    6.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO HDMI Output: Connect the HDMI output port to the HDMI input port of your display such like HDTV. Optical Output: Connect the optical output port to the digital audio input port of your amplifier. Audio Output: Connect the PC 3.5mm phone jack output port to the analogue audio input port of your equipment.

  • Page 10: Osd Menu Operations

    6.3 OSD Menu Operations 1st Tier Option 2nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level FINETUNE - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT...
  • Page 11 1st Tier Option 2nd Tier Option Adjustment INFORMATION SOURCE (Input Interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close OSD Menu Note: Finetune function works differently under component and VGA input therefore, Hue, Saturation and Sharpness are only adjustable when input signal is component.

  • Page 12: Supported Resolutions

    6.4 Supported Resolutions HDMI OUTPUT Resolutions PC INPUT SD/HD 480i/576i (NTSC/PAL)  480p/576p  720p@50/60  1080i@50/60  1080p@50/60  VGA@60/72/75/85   SVGA@56/60/72/75/85   XGA@60/70/75/85   SXGA@60/75/85   UXGA@60   WXGA@60 (1280x800)   WSXGA@60 (1680x1050) ...

  • Page 13: Connection And Installation

    7. CONNECTION AND INSTALLATION PC/Laptop D-Sub/ Analogue Optical Audio Digital Input Input Audio Input Power Supply INPUT DC 5V AUDIO OPTICAL OUTPUT MENU HDMI OPTICAL AUDIO HDMI Output Optical Analogue Digital Audio Audio Output Output HDTV AV Receiver...

  • Page 14: Specifications

    8. SPECIFICATIONS 1 x VGA (15 PIN DSUB) PC Input Port v1.1 HDCP Version 1 x HDMI HDMI Output Port v1.2 HDMI Specification Analogue Audio Input 3.5mm Stereo Jack Analogue Audio Output 3.5mm Stereo Jack Digital Audio Inputs 1 x Optical (Toslink) Digital Audio Outputs 1 x Optical (Toslink) Power Supply...

  • Page 15: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking)
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
