Summary of Contents for CYP SY-300H-4K22

  • Page 1 SY-300H-4K22 HDMI to HDMI Scaler with Audio Embedding & De-Embedding OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 OSD Menu ..........10 7. Connection Diagram ......20 8.
  • Page 6: Introduction

    1. INTRODUCTION This compact yet versatile HDMI to HDMI UHD Scaler accepts and outputs a wide range of resolutions up to 4K@60Hz (4:4:4, 8-bit) with simultaneous audio embedding and de-embedding of digital (HDMI or optical) or analog audio. Integrated EDID and HDCP management options allow for control over the way connected sources and displays detect the unit.
  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS  HDMI input source equipment such as a media player, video game console or set-top box.  HDMI receiving equipment such as an HDTV, monitor or audio amplifier.  The use of “Premium High Speed HDMI” cables is highly recommended.
  • Page 8: Operation Controls And Functions

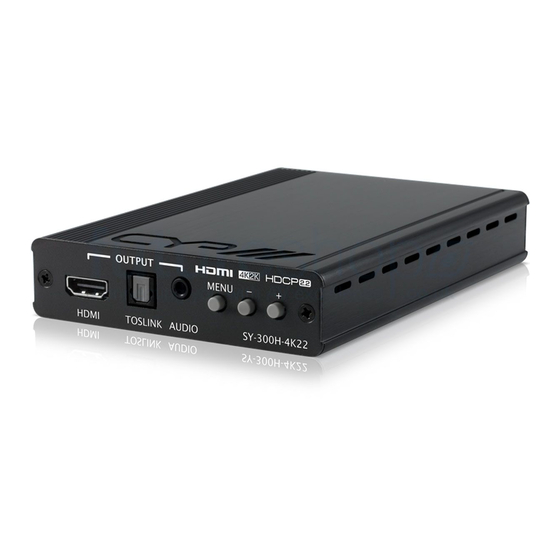

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OUTPUT MENU UHD+ SCALER HDMI TOSLINK AUDIO HDMI OUTPUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output. TOSLINK INPUT: Connect to powered speakers or an amplifier for digital audio output using an appropriate optical cable.
  • Page 9: Rear Panel

    6.2 Rear Panel INPUT DC 5V SERV. AUDIO TOSLINK HDMI SERV.: This port is reserved for firmware update use only. AUDIO INPUT: Connect to the stereo analog output of a device such as an audio player or PC. TOSLINK INPUT : Connect to the optical audio output of a device such as a media player or game console using an appropriate optical cable.
  • Page 10: Osd Menu

    6.3 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (Plus), − (Minus), and MENU buttons to navigate the OSD menu.
  • Page 11 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Output (cont.) 1680×1050 60 1920×1200 60 RB 2560×1600 60 1920×1080 60 1280×720 60 2048×1080 50 2048×1080 60 2560×1440 60 RB 720×480P 60 1280×720P 60 1920×1080P 60 720×576P 50 1280×720P 50 1920×1080P 50 1920×1080P 24 1920×1080P 25 1920×1080P 30 2560×1080P 50...
  • Page 12 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Aspect Over Scan FULL Best Fit Pan Scan Letter Box Under 2 Under 1 Follow In Zoom Mode 60~180 (100) Zoom Mode Ratio HDCP Refer to Source REFER TO DISPLAY BLACK No Signal Color White Blue Green...
  • Page 13 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Output Setting (cont.) Output 4K(6G) YUV420 EXIT Exit 1) Output: Selects the output resolution to use. Selecting “Native” will make the unit automatically select an output resolution based on the detected EDID of the connected display. 2) Aspect: Selects the aspect ratio to use when outputting the source.
  • Page 14 When this is enabled, the video signal will be passed without modification. ■ Output 4K(6G) YUV420: Enables or disables the 4K@50/60 4:4:4 to 4K@50/60 4:2:0 color space conversion function. Note: Enabling Bypass mode will grey-out/disable the following Video Menu sections: Aspect, Zoom Mode Ratio, Freeze, Blank, and the entire Picture Menu section.
  • Page 15 green, and blue color offset level of the scaled output. 3) Brightness: Provides control over the overall brightness of the scaled output image. 4) Contrast: Provides control over the overall contrast of the scaled output image. 5) Hue: Provides control over the hue shift of the scaled output image. 6) Saturation: Provides control over the color saturation level of the scaled output image.
  • Page 16 will automatically switch to the analog input. Note: If “Auto” is selected, and there is no video source, the analog audio will be heard while the free run color is displayed. 2) Volume: Provides control over the audio source's volume level. Note: HDMI to HDMI audio is bypass only and the volume can not be adjusted.
  • Page 17 2ND LEVEL 3RD LEVEL Display Reset OSD Exit 1) H Position: Set the horizontal position of the OSD menu. 2) V Position: Set the vertical position of the OSD menu. 3) Timer: Set the length of time to wait before automatically turning off the OSD menu if there is no user interaction.
  • Page 18 EDID 2ND LEVEL 3RD LEVEL FHD 2CH HDMI EDID FHD MCh UHD 2Ch UHD MCh UHD+ 2Ch UHD+ MCh Output Auto Output Exit 1) HDMI EDID: Select the EDID to use with the HDMI input. Selecting “Output” will copy and use the current sink’s EDID but will not re- copy the EDID if the sink is changed.
  • Page 19 INFORMATION 2ND LEVEL 3RD LEVEL Input Format Input Color Input Resolution Input HDCP Output Format [Current Status Details] Output Color Output Resolution Output HDCP Sink HDCP Version 1) Information: This screen displays information about the unit’s current state, input and output status, as well as the current firmware version.
  • Page 20: Connection Diagram

    7. CONNECTION DIAGRAM Media Player Digital/Analog HDMI Audio Input Input Power Supply INPUT DC 5V SERV. AUDIO TOSLINK HDMI OUTPUT MENU HDMI TOSLINK AUDIO UHD+ SCALER HDMI Digital/Analog Output Audio Output UHDTV AV Receiver...
  • Page 21: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 1×HDMI 1×Stereo (3.5mm) 1×S/PDIF (TOSLINK) Output Ports 1×HDMI 1×Stereo (3.5mm) 1×S/PDIF (TOSLINK) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions 102mm×25mm×147mm (W×H×D) [Case Only]...
  • Page 22: Video Specifications

    8.2 Video Specifications Supported PC Resolution (Hz) HDMI Input HDMI Output 640×480@60/72/75/85 60Hz  800×600@56/60/72/75/85 60Hz  1024×768@60/70/75/85 60Hz  1280×720@50/60 60Hz  1280×768@60/75/85 60Hz  1280×800@60/60 (RB) 60Hz  1280×1024@60   1360×768@60   1400×1050@60/60 (RB) 60Hz  1440×900@60/60 (RB) 60Hz ...
  • Page 23 Supported TV Resolution (Hz) HDMI Input HDMI Output 1920×1080i@50/60   1920×1080p@24/25/30/50/60   2560×1080p@50/60   3840×2160p@24/25/30/50/60   4096×2160p@24/25/30/50/60  ...
  • Page 24: Audio Specifications

    8.3 Audio Specifications Analog Input Max Audio Level 2Vrms Impedance 499kΩ Type Unbalanced Analog Output Max Audio Level 2Vrms THD+N < −80dB@0dBFS 1kHz (A-wt) > 70dB@0dBFS Frequency Response < ±3dB@20Hz~20kHz Crosstalk < −70dB@10kHz Impedance 499Ω Type Unbalanced Digital (S/PDIF) Input Sampling Rate (kHz) 32, 44.1, 48, 82, 88.2, 96, 176.4, 192 Digital (S/PDIF) Output...
  • Page 25: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television LPCM Linear Pulse-Code Modulation On-Screen Display Personal Computer S/PDIF Sony/Philips Digital Interface Format Signal-to-Noise Ratio...
