Summary of Contents for CYP SY-298H24

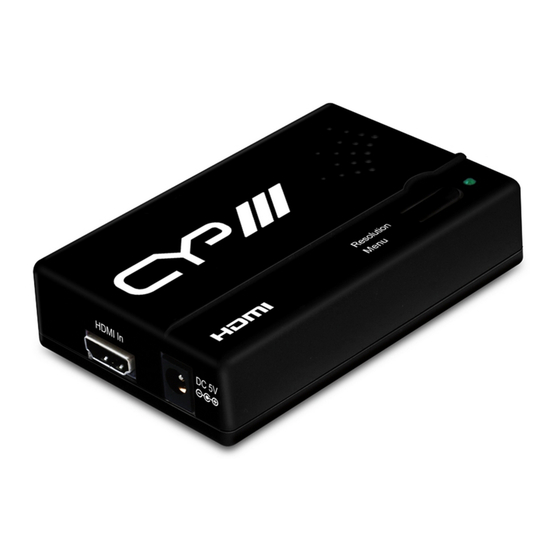

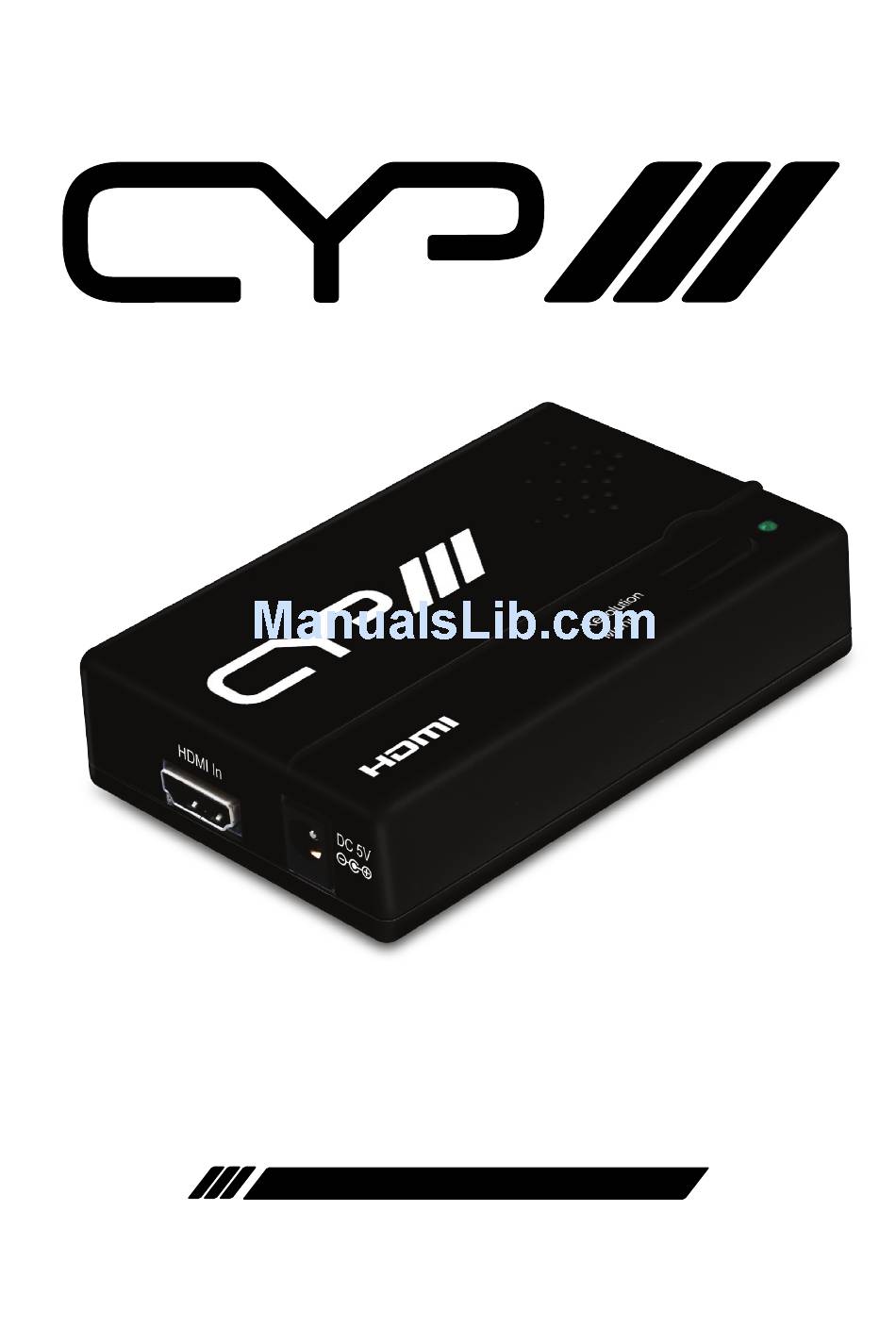

- Page 1 SY-298H24 HDMI to HDMI Up & Down Scaler Including 24fps input support OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Top Panel ............10 7. Connection and Installation ....11 8. Specifications ........12 9. -
Page 6: Introduction
1. INTRODUCTION The SY-298H24 will allow a HDMI source signal to be up or down scaled according to the screen specifications required. Any HDMI signal inputted can be scaled up or down to between 480i to 1080p, plus PC output resolutions of VGA or UXGA. This device accepts 1080p24 input resolutions enabling content filmed at 24 frames per second displayed. -
Page 7: Features
5. FEATURES HDMI, HDCP1.1 and DVI compliant Upscale video signal from HDMI source between 480i and 1080p@50/60, including 1080p24 Supports a wide range of output resolutions from 480i to 1080p and PC from VGA to SXGA Supports audio sampling rate up to 192kHz Supports Dolby &... -
Page 8: Front Panel
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI In This slot is where you plug in your input source device such as PC/ laptop or Blu-ray player with an HDMI cable. DC 5V This slot is where you plug the 5V DC power supply included in the package into the unit and connect the adaptor to an AC outlet. -
Page 9: Rear Panel
6.2 Rear Panel Service Only HDMI Out This slot is specifically made for factory usage. It does not support any signal transmission or power supply. HDMI Out This slot is to connect to an HD TV/display with a HDMI cable for displaying your sources content. -
Page 10: Top Panel
6.3 Top Panel Resolution Menu Timing button Press this button once to show the output displays resolution and while OSD is still on press it again to select the output resolution from 480p ~ 1920 × 1200RB or Native. Power LED This LED will illuminate when the device is connected with power supply. -
Page 11: Connection And Installation
7. CONNECTION AND INSTALLATION... -
Page 12: Specifications
8. SPECIFICATIONS Maximum Pixel Rate 165MHz Input Ports 1 x HDMI, 1 x USB (for service only) Output Ports 1 x HDMI Input / Output VGA~UXGA, 480i~1080p Resolution Audio Sampling Rate 32~192kHz HDMI Cable In 1080p 8-bit/ M HDMI Cable Out 1080p 8-bit/ M ESD Protection Human body model: ±... -
Page 13: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com V1.01...
