Summary of Contents for CYP SY-298H

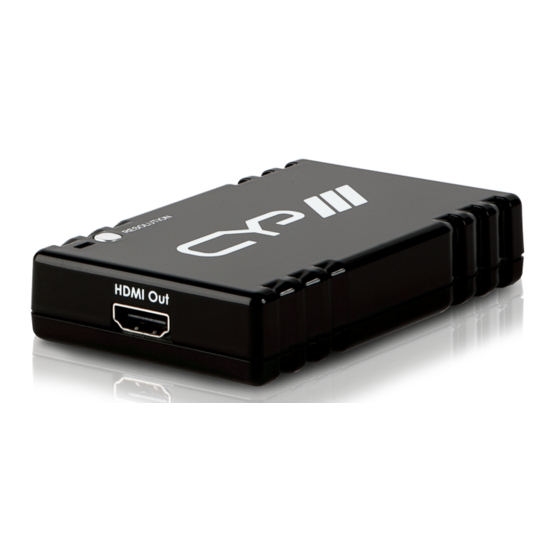

- Page 1 SY-298H HDMI to HDMI Up & Down Scaler OPERATION MANUAL...
-
Page 2: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Hardware Description………………...……..….....…… Front Panel ................Rear Panel …………………………………………..…….… Top Panel ………………………….………………..…….… 8. Connection and Installation....…………..…..…..…... Acronyms …….………....…………..…..…...…... -
Page 4: Introduction
1. Introduction This Scaler Box is design to display your HD images on the HDTV with better view- ing image. It can upscale HDMI input sources to HDMI output for wide-range of HD resolutions; the resolution supports XGA/UXGA/720p/1080p/1366 x 768/1440 x 900/1400 x 1050. -
Page 5: Specifications
6. Specifications TMDS Clock Frequency 225MHz Input port 1 x HDMI Output port 1 x HDMI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 114 (W) x 65 (D) x 26 (H) Weight(g) Chassis Material Plastic Silkscreen Color Black Power Consumption 2.7W... -
Page 6: Hardware Description
7. Hardware Description The following sections describe the hardware components of the unit. 7.1 Front Panel ① HDMI IN: This slot is where you plug your input source equipment with HDMI cable for source signal sending. ② DC 5V: This slot is where you plug the 5V DC power supply into the unit and connect the adaptor to an AC wall outlet. -
Page 7: Top Panel
7.3 Top Panel RESOLUTION Power LED: This LED will illuminate when power is connected. ① ② Timing button: Press this button once to show both input and output dis play resolution and while OSD is still on press it again to select output resolution from 720p to 1080p/1280 x 800/1366 x 768/1920 x 1200(RB). -
Page 8: Connection And Installation
8. Connection and Installation Blu-ray Player HDMI SY-298H SY-298H HDMI Displays... -
Page 9: Acronyms
Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 10 www.cypeurope.com...
