CYP SY-P290 Operation Manual

Pc/dvi to hdmi converter
Hide thumbs Also See for SY-P290:
Table of Contents

Advertisement

Quick Links

Download this manual

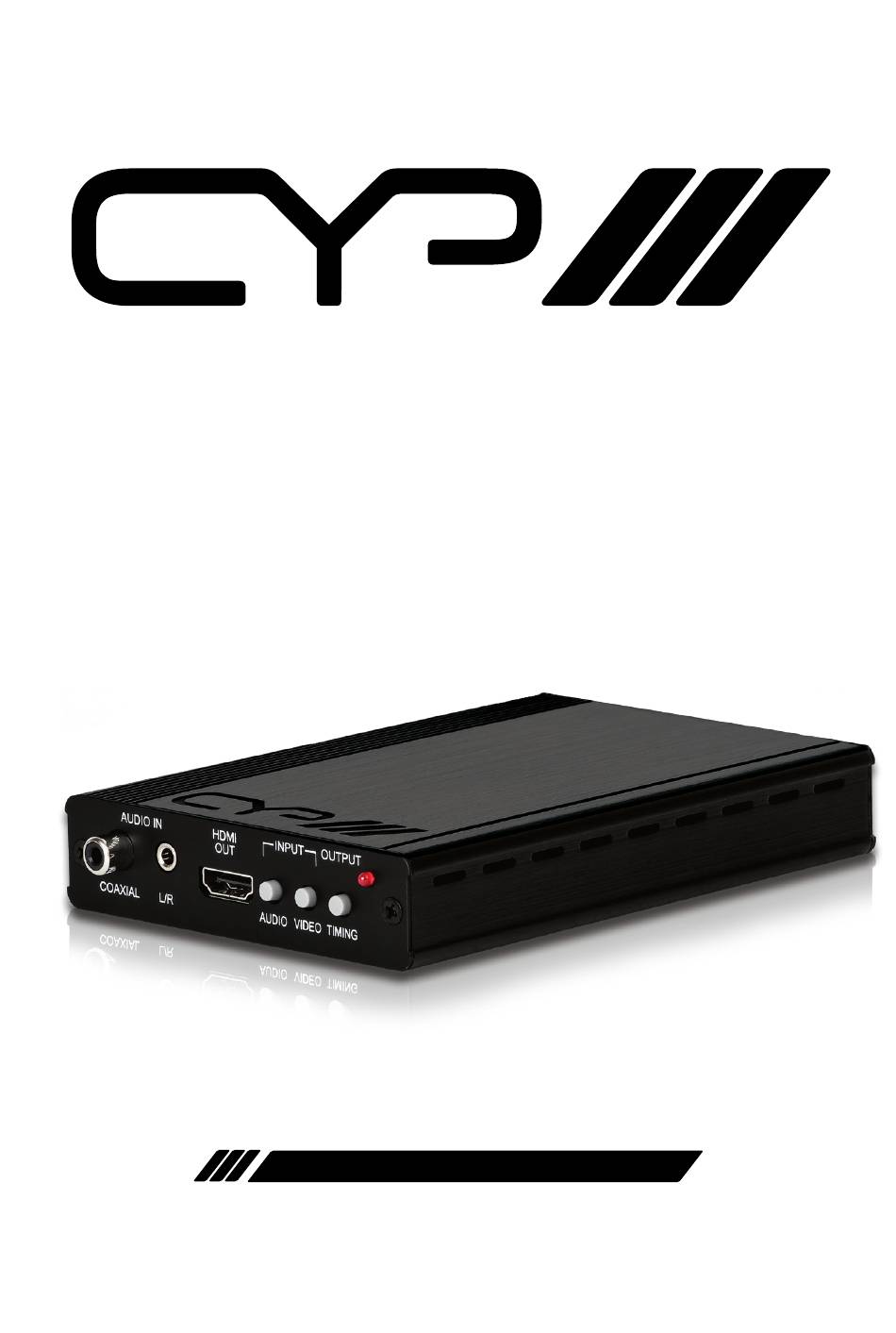

SY-P290
PC/DVI to HDMI Converter
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-P290 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP SY-P290

Summary of Contents for CYP SY-P290

  • Page 1 SY-P290 PC/DVI to HDMI Converter OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. Connection Diagram ......10 8. Specifications ........11 8.1 Technical Specifications ......11 8.2 Supported Resolutions ......12 9.

  • Page 6: Introduction

    1. INTRODUCTION The SY-P290 is designed to convert and scale Digital or Analogue RGBHV or YUV to HDMI for improved viewing. This unit offers a wide selection of output resolutions/format, colour space and adjustment to obtain the best picture quality.

  • Page 7: Features

    5. FEATURES  v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant  PC/DVI to HDMI Converter  Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24; PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA,WUXGA.  Audio Support: Input - Analogue stereo & Coax; PCM Stereo, DTS & Dolby Digital;...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel VIDEO IN DC 5V PC/HD DVI-D/HDMI: Connect the PC input DVI (29 pin) port to the DVI-D/ HDMI output port of your HDMI source equipment such like PC. - Resolution: VGA~ WUXGA ; 480p~1080p50/60 - Note: DVI-D input can only take Digital signal.

  • Page 9: Rear Panel

    6.2 Rear Panel AUDIO IN HDMI INPUT OUTPUT COAXIAL AUDIO VIDEO TIMING Coaxial: Connect the coaxial audio cable from source device. L/R: Connect the L/R mini-jack from the source device. HDMI out: Connect the HDMI cable to LCD TV or Monitor. Audio: Input audio switching button for selecting coaxial or L/R audio signal.

  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM Laptop DVI Input VGA Input Coaxial Digital Input Analogue Audio Input VIDEO IN DC 5V PC/HD AUDIO IN HDMI INPUT OUTPUT COAXIAL AUDIO VIDEO TIMING HDMI Output HDTV/Monitor...

  • Page 11: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Input ports 1 x PC 1 x DVI-D 1 x Coaxial/Audio 1 x L/R Audio Output port 1 x HDMI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 160(D) x 102(W) x 25(H) Weight(g) Chassis Material Aluminum...

  • Page 12: Supported Resolutions

    8.2 Supported Resolutions Input Output Resolution Vertical Rate Resolution/Vertical Rate SVGA SXGA UXGA/60Hz WXGA XGA/60Hz UXGA 60Hz 720P/60Hz WSXGA 1080P/60Hz WUXGA 480i/480p 1080i 1080p 576i/576p UXGA/50Hz (note 1) 720p XGA/50Hz (note 1) 50Hz 1080i 720P/50Hz 1080p 1080p/50Hz (note 2) Note 1 : This scaler does not support 50/60Hz frame rate conversion; therefore 50Hz PC resolutions may not be compatible with all displays.

  • Page 13: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
