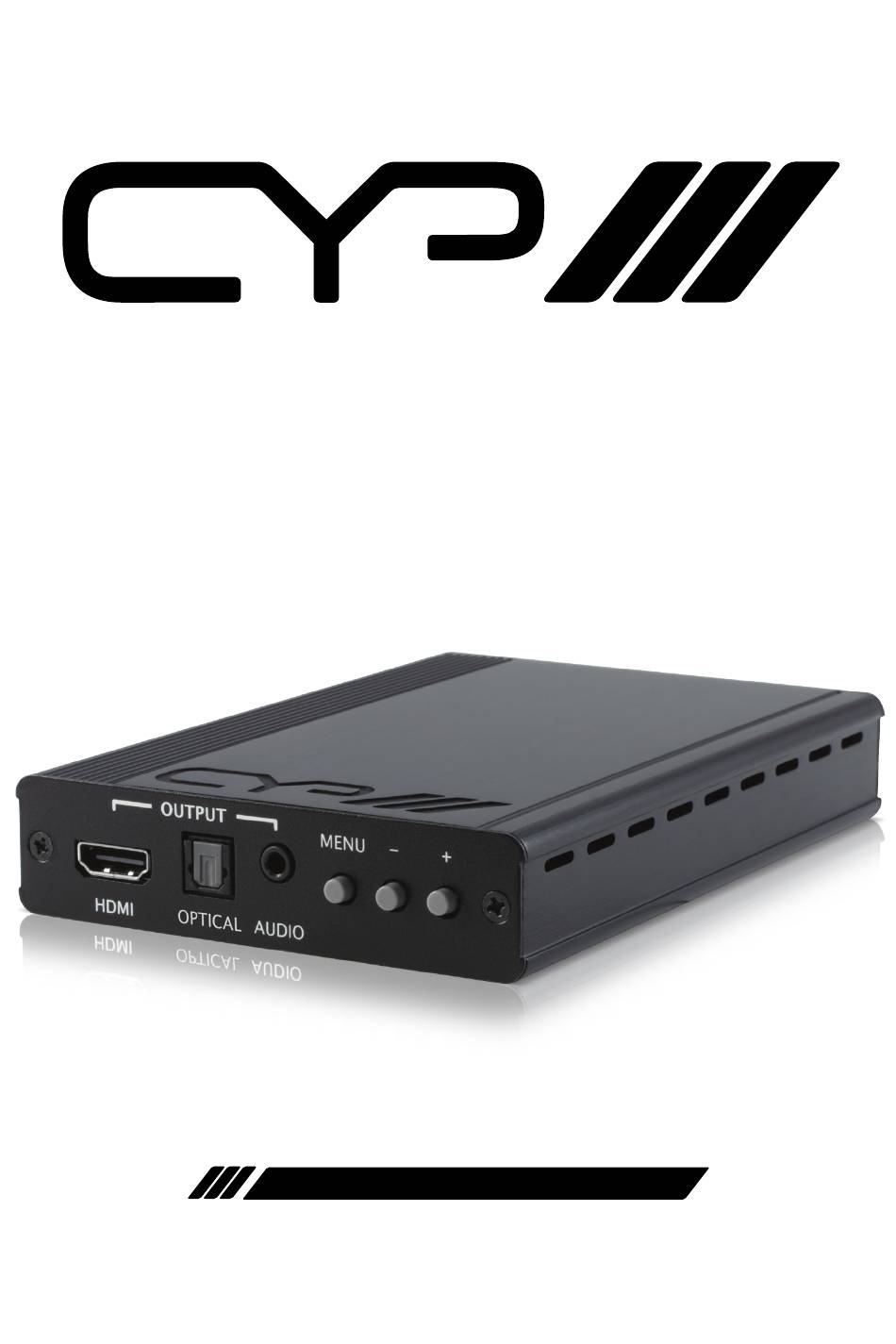

- Page 1 SY-300H HDMI to HDMI Scaler with Audio Embedding & De-Embedding OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 OSD Menu ..........10 7. Connection Diagram ......12 8. -
Page 6: Introduction
1. INTRODUCTION This is a compact yet versatile HDMI to HDMI Scaler Box. It accepts HDMI input with a separate Toslink or analog audio and scale it to HDMI output (at a number of selectable resolutions) with additional Toslink and analog audio output. -
Page 7: Features
5. FEATURES HDMI, HDCP and DVI compliant Supports full range of PC resolution from VGA ~ WUXGA (RB) and HD resolution from 480i~1080p Automatically detect the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected Supports 50/60Hz frame rate conversion Supports 3-D motion video adaptive, 3-D de-interlacing, and 3:2/2:2... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI INPUT: Connect from source equipment such as PS3/Blu-ray player with HDMI cable. AUDIO INUPT: Connect from the audio source equipment such as PC/ Laptop with 3.5mm phone jack for analog audio signal input. TOSLINK INPUT: Connect from the audio source equipment such as DVD/Blu-ray player with optical cable for digital audio signal input. -
Page 9: Rear Panel
6.2 Rear Panel HDMI OUTPUT: This slot is to connect with HDMI TV/Monitor for output image display. TOSLINK OUTPUT: Connect to an amplifier or active speaker with optical cable for audio output. AUDIO OUTPUT: Connect to an amplifier or active speaker with 3.5mm phone jack for audio output. -
Page 10: Osd Menu
6.3 OSD Menu Main Menu layer layer PICTURE SETTING CONTRAST 0~100 (50) BRIGHTNESS 0~100 (50) EXIT FINETUNE 0~100 (50) SATURATION 0~100 (50) SHARPNESS 0~100 (50) OFF/LOW/MIDDLE/HIGH (OFF) EXIT COLOR SETTING 0~100 (50) GREEN 0~100 (50) BLUE 0~100 (50) EXIT OUTPUT SETTING SIZE FULL/OVERSCAN/UNDERSCAN/ LETTER BOX/ PANSCAN/ASPECT... - Page 11 Main Menu layer layer AUDIO SETTING DELAY OFF/40MS/110MS/150MS (OFF) INPUT EMBEDDED/ANALOG/OPTICAL (EMBEDDED) SOUND ON/MUTE (ON) EXIT OSD SETTING H-POSITION 0~100 (10) V-POSITION 0~100 (90) TIMER 0~100 (50) BACKGROUND 0~100 (50) DISPLAY INFO/ON/OFF (INFO) EXIT FACTORY RESET INFORMATION EXIT...
-
Page 12: Connection Diagram
7. CONNECTION DIAGRAM HDMI Cable INPUT DC 5V HDMI to HDMI HDMI AUDIO TOSLINK SERV. Scaler Box OUTPUT MENU HDMI TOSLINK AUDIO HDMI Cable HDMI TV... -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth 225MHz / 6.75Gbps Input ports 1 × HDMI, 1 × 3.5mm Phone Jack, 1 × TOSLINK (Optical), 1 × USB (service only) Output ports 1× HDMI, 1 × TOSLINK (Optical), 1 × 3.5mm Phone Jack HDMI output Resolution Up to 1080p &... -
Page 14: Supporting Timing Chart
8.1 Supporting Timing Chart INPUT OUTPUT 640×480@60/72/75/85 @60 800×600@56/60/72/75/85 @60 1024×768@60/70/75/85 @60 1280×1024@60/75/85 @60 1400×1050@60 1600×1200@60 1280×800@60 1440×900@60 1600×900@60RB 1680×1050@60 @60 ... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
