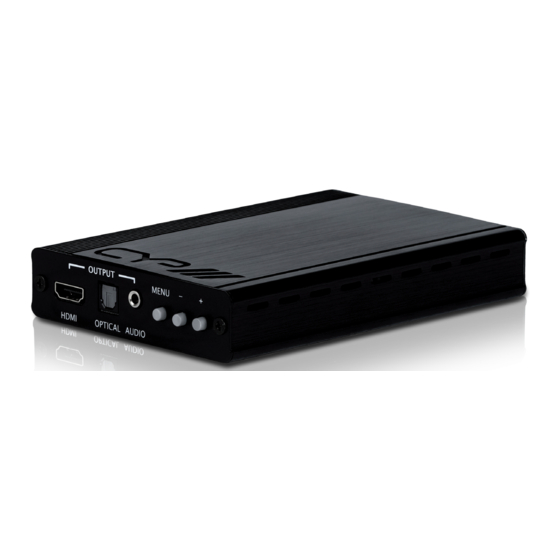

SY-P293
PC to HDMI (1080p) Scaler
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-P293 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP SY-P293

Summary of Contents for CYP SY-P293

  • Page 1 SY-P293 PC to HDMI (1080p) Scaler OPERATION MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Connection Diagram OSD Menu Reset OSD Menu Operations Supported Resolutions Specifications...

  • Page 3: Introduction

    1. Introduction The SY-P293 is designed to upscale analogue video signal from a PC source to a digital HDMI output boosting a wide-range of HDTV and PC resolutions up to 1080p/WUXGA. The SY-P293 also converts inputted audio signal from Optical (Toslink) or analogue L/R to both digital and analogue audio outputs.

  • Page 4: Operation Controls And Functions

    4. Operation Controls and Functions 4.1 Front Panel INPUT DC 5V AUDIO OPTICAL 1. PC Input: Connect the PC input D-Sub (15-pin) port to the D-Sub output port of your source equipment such as a PC. 2. Audio Input: Connect the PC 3.5mm stereo mini-jack input port to the analogue audio output port of your source equipment.

  • Page 5: Rear Panel Diagram

    4.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO 1. HDMI Output: Connect the HDMI output port to the HDMI input port of your HDTV display. 2. Optical (Toslink) Output: Connect the optical output port to the Optical input port of your amplifier. 3.

  • Page 6: Connection Diagram

    4.3 Connection Diagram 5. OSD MENU Reset Fuction To reset the unit, press and hold the MENU button then insert the DC power into the unit to set the unit back to factory default, with output resolution set to NATIVE. This feature is also useful when the output is scaled to a resolution not supported by the connected TV/monitor so no picture is shown, because the NATIVE resolution can guarantee to display Page 4...

  • Page 7: Osd Menu Operations

    5.1 OSD Menu Operations 1st Tier Option 2nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level...

  • Page 8: Supported Resolutions

    5.2 Supported Resolutions Resolutions PC INPUT HDMI OUTPUT SD/HD 480I/576I (NTSC/PAL) 480P/576P 720P@(50/60) 1080I@(50/60) 1080P@(50/60) VGA@(60/72/75/85) V@60 SVGA@(56/60/72/75/85) V@60 XGA@(60/70/75/85) V@60 SXGA@(60/75/85) V@60 UXGA@60 WXGA@60(1280x800) WSXGA@60(1680x1050) WUXGA@60(1920x1200) Note:VGA/SVGA/XGA/SXGA/output only support@60Hz 6. Specifications PC Input Port x 1 VGA (15 PIN DSUB) HDCP Version V1.1 HDMI Output Port...
  • Page 9 Notes:...
  • Page 10 www.cypeurope.com v1.01...
