SY-12H-4K22
4K UHD (HDR10 6G) 1 in 2 out HDMI Dual Scaler
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-12H-4K22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP SY-12H-4K22

Summary of Contents for CYP SY-12H-4K22

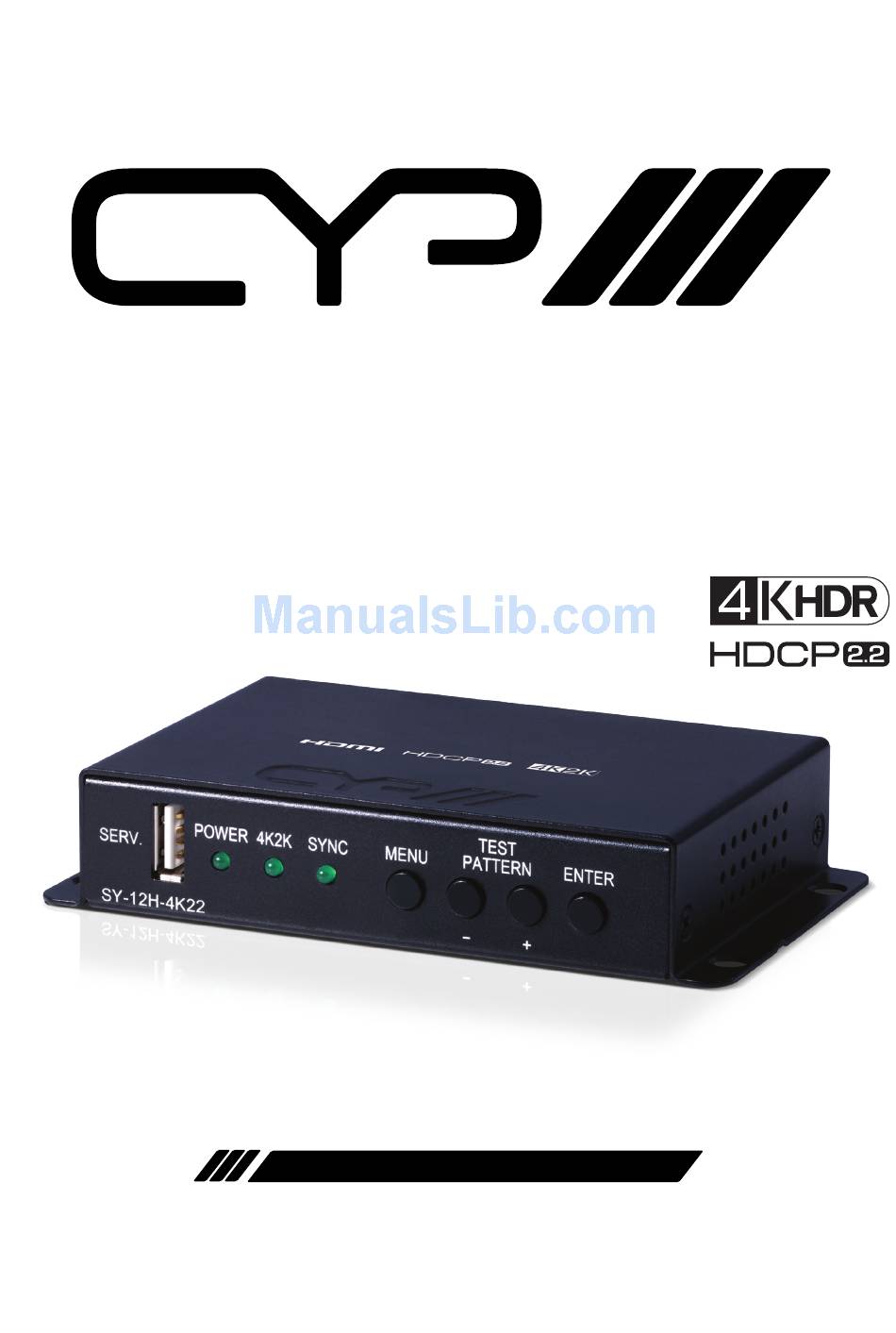

  • Page 1 SY-12H-4K22 4K UHD (HDR10 6G) 1 in 2 out HDMI Dual Scaler OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......7 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.4 RS-232 Control ..........22 6.5 RS-232 Commands ........23 7.

  • Page 6: Introduction

    1. INTRODUCTION This HDMI 4K UHD Scaler with Test Patterns and Signal Event Automation is designed to upscale 1080p signals into 4K UHD (18Gbps) or downscale 4K UHD (18Gbps) signals into 1080p with synchronised digital audio output. A friendly and simple interface design allows the user to control the unit while viewing the OSD directly on the HDMI outputs.

  • Page 7: System Requirements

    4. SYSTEM REQUIREMENTS  HDMI input source equipment such as a media player, video game console or set-top box.  HDMI receiving equipment such as HDTVs, monitors or audio amplifiers.  The use of “Premium High Speed HDMI” cables is highly recommended.

  • Page 8: Operation Controls And Functions

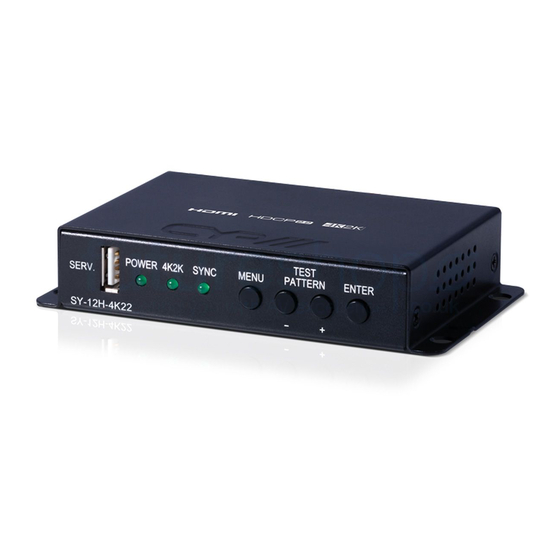

    POWER 4K2K SYNC MENU PATTERN ENTER SERV. SY-12H-4K22 SERV.: This slot is reserved for firmware update and EDID upload use only. POWER LED: This LED will illuminate to indicate the unit is on and receiving power. 4K2K LED: This LED will illuminate when the input source contains a 4K UHD signal.

  • Page 9: Rear Panel

    6.2 Rear Panel DC 5V HDMI IN HDMI OUT RS-232 HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT A~B: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. Each output can display a different resolution with a choice between the HDMI source or a test pattern.
  • Page 10 6.3 OSD Menu All primary functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the Menu button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 11 OUTPUT 2nd Level 3rd Level Output A PASS THROUGH Input 4K2K Down Scaler 1080P Fix Colour YUV 4:2:0 Fix Deep Colour 8 bit YUV 4:2:x to RGB Fix Colour RGB Output B PASS THROUGH Input 1080P Input 1080P Up Scaler 4K2K Up Scaler 4K2K YUV 4:2:0 PASS THROUGH Input 4K2K...
  • Page 12 Output A 1) Input 4K2K: Controls the scaling of 4K sources on Output A. ■ Pass Through: Will pass all 4K sources without modification. ■ Down Scaler 1080P: Will convert all 4K sources to 1080P at the same frame rate as the original. ■...
  • Page 13 EDID 2nd Level INTERNAL FHD 2CH Internal FHD 8CH Internal UHD 2CH Internal UHD 8CH Internal UHD+ 2CH Internal UHD+ 8CH User Sink Output A Sink Output B 1) EDID: Select the EDID to use with the HDMI input. HDCP 2nd Level HDCP Support Off Reference to Source...
  • Page 14 2nd Level 3rd Level Display Information OSD Timeout 5 SEC. 10 Sec. 15 Sec. 20 Sec. 25 Sec. 30 Sec. 35 Sec. 40 Sec. 1) Display Information: Enable or disable the informational OSD. 2) OSD Timeout: Set the length of time to wait before automatically turning off the OSD menu if there is no user interaction.
  • Page 15 TEST PATTERN A 2nd Level 3rd Level Mode Auto Pattern Auto Timing WHITE Colour Pattern Red Colour Green Colour Blue Colour Magenta Colour Yellow Colour Cyan Colour Colour Bar Ramp Toggle Resolution 720×480p@60 720×576p@50 1280×720p@50 1280×720P@60 1920×1080p@50 1920×1080p@60 3840×2160p@24 3840×2160p@25 3840×2160p@30 4096×2160p@24 4096×2160p@25...
  • Page 16 TEST PATTERN A 2nd Level 3rd Level DISABLE HDCP Enable 10 SEC. Switch Time 20 Sec. 30 Sec. 40 Sec. 50 Sec. 1 Min. 2 Min. 3 Min. 5 Min. Auto Timing Select 720×480p@60 720×576p@50 1280×720p@50 1280×720p@60 1920×1080p@50 1920×1080p@60 3840×2160p@24 3840×2160p@25 3840×2160p@30 4096×2160p@24...
  • Page 17 ■ Auto Timing: Will show the selected test pattern and make the output resolution automatically change based on the “Switch Time” setting and the resolutions enabled under “Auto Timing Select”. 2) Pattern: Selects the test pattern to output. 3) Resolution: Selects the output resolution to use. 4) HDCP: Enable or disable HDCP while outputting the test pattern.
  • Page 18 TEST PATTERN B 2nd Level 3rd Level Mode Auto Pattern Auto Timing WHITE Colour Pattern Red Colour Green Colour Blue Colour Magenta Colour Yellow Colour Cyan Colour Colour Bar Ramp Toggle Resolution 720×480p@60 720×576p@50 1280×720p@50 1280×720P@60 1920×1080p@50 1920×1080p@60 3840×2160p@24 Resolution 3840×2160p@25 3840×2160p@30 4096×2160p@24...
  • Page 19 TEST PATTERN B 2nd Level 3rd Level DISABLE HDCP Enable 10 SEC. Switch Time 20 Sec. 30 Sec. 40 Sec. 50 Sec. 1 Min. 2 Min. 3 Min. 5 Min. Auto Timing Select 720×480p@60 720×576p@50 1280×720p@50 1280×720p@60 1920×1080p@50 1920×1080p@60 3840×2160p@24 3840×2160p@25 3840×2160p@30 4096×2160p@24...
  • Page 20 ■ Auto Timing: Will show the selected test pattern and make the output resolution automatically change based on the “Switch Time” setting and the resolutions enabled under “Auto Timing Select”. 2) Pattern: Selects the test pattern to output. 3) Resolution: Selects the output resolution to use. 4) HDCP: Enable or disable HDCP while outputting the test pattern.
  • Page 21 FIRMWARE UPDATE 2nd Level 3rd Level Are You Sure? 1) Firmware Update: Provides a way to update the unit’s firmware. Insert a USB thumb drive, with a valid firmware file (*.bin format) in the root directory, into the unit’s USB service port then select this option. After the update is complete the unit will automatically reboot.

  • Page 22: Rs-232 Control

    6.4 RS-232 Control Terminal Block In Controlling PC Serial Port Settings Definition Definition Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None Terminal Block Definition...

  • Page 23: Rs-232 Commands

    6.5 RS-232 Commands COMMAND Description and Parameters ?  Show the full command list. ? N1  Show information about command N1. N1 = {command} [RS-232 command] HELP  Show the full command list. HELP N1  Show information about command N1. N1 = {command} [RS-232 command] GET FW VER ...
  • Page 24 COMMAND Description and Parameters SET UART 1 BAUDRATE N1  Set the RS-232 baud rate to N1. Available values for N1: 4800 [4800 baud] 9600 [9600 baud] 19200 [19200 baud] 38400 [38400 baud] 57600 [57600 baud] 115200 [115200 baud] GET UART 1 BAUDRATE  Show the current RS-232 baud rate.
  • Page 25 COMMAND Description and Parameters GET UART 1 PARITY  Show the current RS-232 parity value. SET IN 1 NAME N1  Set the text name for the Input. N1 = {Name string} [Input name] GET IN 1 NAME  Show the Input’s current text name. SET OUT N1 NAME N2 ...
  • Page 26 COMMAND Description and Parameters GET IN 1 REFRESH RATE  Show the current refresh rate of the source on the Input. GET IN 1 INTERLACE  Show the current interlace state of the source on the Input. GET IN 1 SYNC STATUS  Show the current sync status of the source on the Input.
  • Page 27 COMMAND Description and Parameters GET SINK N1 EDID DATA  Show the EDID from Output N1 as HEX data. N1 = A ~ B [Output port] GET IN 1 EDID DATA  Show the EDID currently used by the input as HEX data. GET INTERNAL N1 EDID DATA ...
  • Page 28 COMMAND Description and Parameters GET OUT N1 HDCP STATUS  Show the current status of HDCP on Output N1. N1 = A ~ B [Output port] Available responses: [No HDCP] [HDCP 1.x] [HDCP 2.2] [HDCP 1.x failed] [HDCP 2.x failed] GET OUT N1 HDCP ABILITY ...
  • Page 29 COMMAND Description and Parameters SET AUTOMATION EVENT N1 UART A N2  Enable or disable RS-232 automation event type N1. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] N2 = ON, OFF [Enable/Disable event type] GET AUTOMATION EVENT N1 UART A ...
  • Page 30 COMMAND Description and Parameters GET AUTOMATION EVENT N1 UART A COMMAND  Show the currently defined RS-232 command to send when automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] SET AUTOMATION EVENT N1 UART A DELAY N2 SEC ...
  • Page 31 COMMAND Description and Parameters SET AUTOMATION EVENT N1 UART A WAIT N2 SEC  Set the wait time (in seconds) before sending a command after RS- 232 automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost]...
  • Page 32 COMMAND Description and Parameters SET AUTOMATION EVENT N1 CEC N2 N3  Enable or disable CEC automation event type N1. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] N2 = A ~ B [Target output port] N3 = ON, OFF...
  • Page 33 COMMAND Description and Parameters SET AUTOMATION EVENT N1 CEC N2 COMMAND N3  Set the CEC command to send when automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] N2 = A ~ B [Target output port]...
  • Page 34 COMMAND Description and Parameters SET AUTOMATION EVENT N1 CEC N2 DELAY N3 SEC  Set the delay (in seconds) to wait before triggering CEC automation event N1. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost] N2 = A ~ B...
  • Page 35 COMMAND Description and Parameters SET AUTOMATION EVENT N1 CEC N2 WAIT N3 SEC  Set the wait time (in seconds) before sending a command after CEC automation event N1 is triggered. Available values for N1: [Power on] [Out A sync active] [Out A sync lost] [Out B sync active] [Out B sync lost]...

  • Page 36: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC/Laptop Media Player HDMI RS-232 Input Power supply DC 5V HDMI IN HDMI OUT RS-232 RS-232 RS-232 Controlled Device HDMI HDMI Output Output UHDTV UHDTV (4K Downscaled (1080p Upscaled to 1080p) to 4K)

  • Page 37: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Port 1×HDMI Output Ports 2×HDMI Control Ports 2×RS-232 (3-pin Terminal Blocks) Baud Rate Up to 115200bps Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions 128mm×25mm×75mm (W×H×D)

  • Page 38: Video Specifications

    8.2 Video Specifications 8.2.1 Supported Resolutions HDMI HDMI Supported PC Resolution (Hz) Input Output 800×600 56/60/72/75/85   1024×768 60/70/75/85   1280×768 60/75   1280×800 60/75   1280×1024 60/75   1366×768   1400×1050 60/75  ...
  • Page 39 8.2.2 4K Conversion Rules DOWN 1080P Input Resolution (Hz) Output Resolution (Hz) 3840×2160p@24 1920×1080p@24  3840×2160p@25 1920×1080p@25  3840×2160p@30 1920×1080p@30  3840×2160p@50 1920×1080p@50  3840×2160p@60 1920×1080p@60  4096×2160p@24 1920×1080p@24  4096×2160p@25 1920×1080p@25  4096×2160p@30 1920×1080p@30  4096×2160p@50 1920×1080p@50  4096×2160p@60 1920×1080p@60 ...
  • Page 40 FIX 4K2K Input Resolution (Hz) Output Resolution (Hz) RGB & YCbCr 4:4:4/4:2:2 YCbCr 4:2:0 3840×2160p@50 3840×2160p@50  3840×2160p@60 3840×2160p@60  4096×2160p@50 4096×2160p@50  4096×2160p@60 4096×2160p@60  FIX 8 BITS Input Resolution (Hz) Output Resolution (Hz) RGB & YCbCr 4:4:4/4:2:2, RGB & YCbCr 4:4:4/4:2:2, 8-bit 10/12/16-bit 3840×2160p@24 3840×2160p@24...

  • Page 41: Audio Specifications

    8.3 Audio Specifications Digital (HDMI) Input Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Digital (HDMI) Output Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 8.4 Cable Specifications 1080p@60Hz 4K@30Hz 4K@60Hz HDMI Cable Length 8-bit 12-bit 8-bit 8-bit Input...

  • Page 42: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television LPCM Linear Pulse-Code Modulation On-Screen Display Personal Computer Ultra-High-Definition UHDTV Ultra-High-Definition Television...
  • Page 44 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
