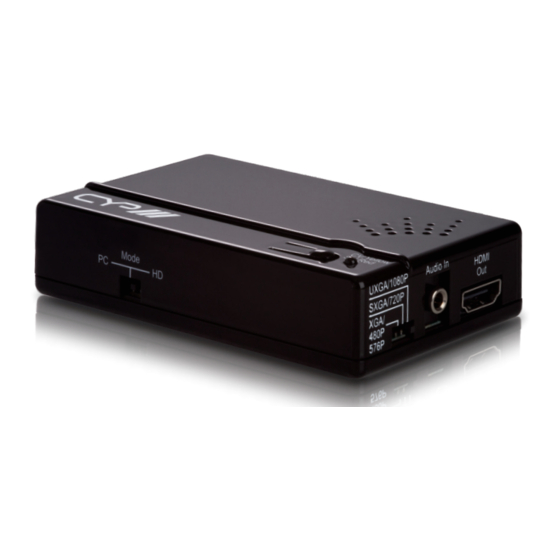

SY-398H
CV & SV to HDMI Converter with Audio Input
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY-398H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP SY-398H

Summary of Contents for CYP SY-398H

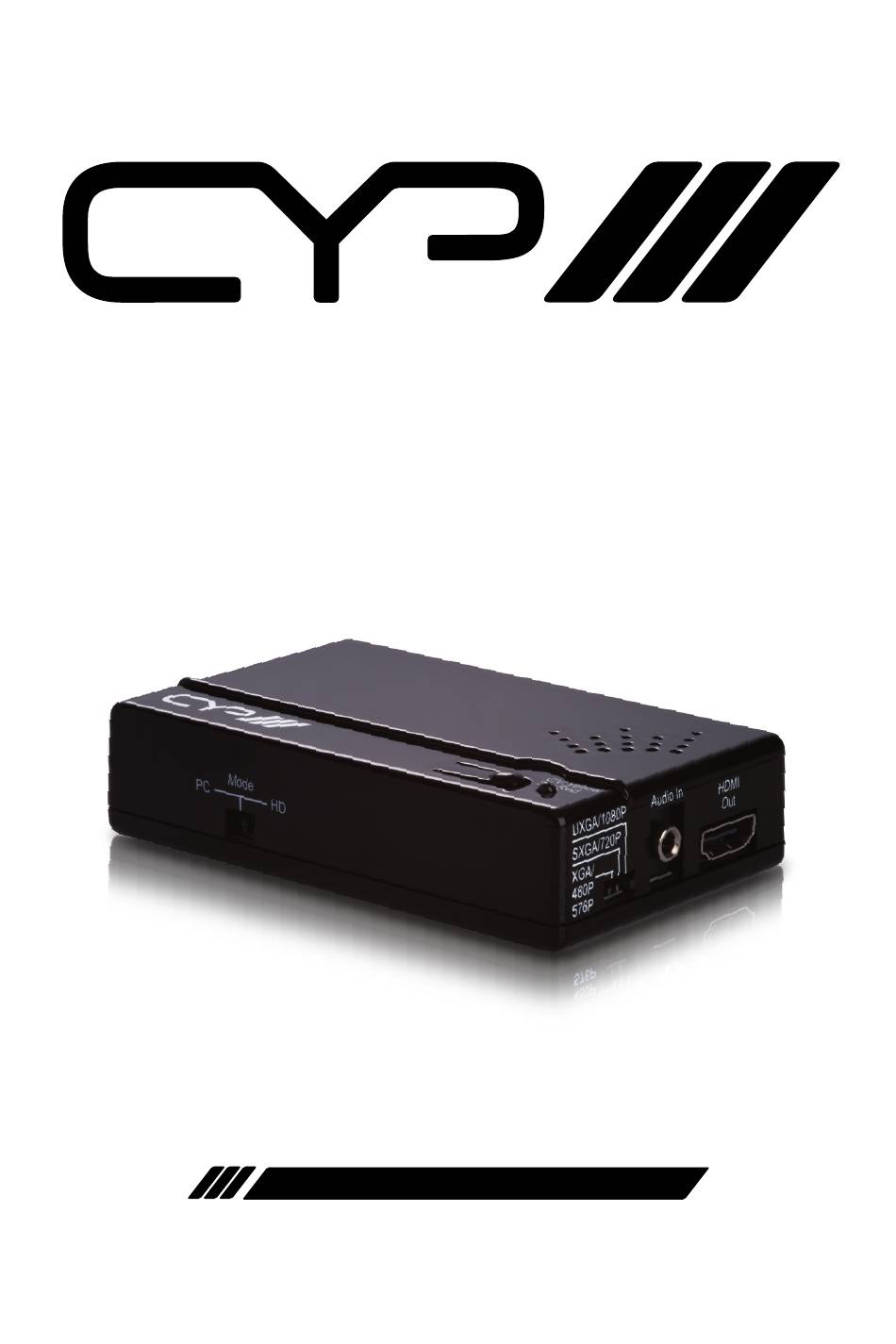

  • Page 1 SY-398H CV & SV to HDMI Converter with Audio Input OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6.Operation Controls and Functions ..8 6.1 Left side Panel ..........8 6.2 Right side Panel .......... 8 6.3 Front Panel ........... 9 6.4 Top Panel ............

  • Page 6: Introduction

    1. INTRODUCTION This is a Video to HDMI™ converter box that can convert CV/SV (NTSC or PAL or SECAM system) to HDMI resolutions of XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or video game sources on the HD monitor/ TV this device has an On-Screen Display function that allows users to easily select the output resolution and the audio input, after which both...

  • Page 7: Features

    5. FEATURES  Operates in NTSC 3.58 and PAL & SECAM system  Can scale CV/SV to HDMI format  PC Output resolutions: XGA, SXGA, UXGA  Component Output resolutions : 480p/576p, 720p@50 or 60, 1080p@50 or 60  3D (frame based) motion adaptive YNR/CNR noise reduction  On-Screen Display (OSD)  Advanced 3D motion adaptive de-interlacing  Automatic 2:2 &...

  • Page 8: Operation Controls And Functions

    6.OPERATION CONTROLS AND FUNCTIONS 6.1 Left side Panel Video DC 5V S-Video S-Video input: This slot is where you connect the input source equipment such as digital camcorder with S-Video cable. Composite (CV) input: Connect to the input source equipment such as a media player or personal recorder with composite cable.

  • Page 9: Front Panel

    6.3 Front Panel PC/HD switch: This switch allows you to select PC or component HD timing output. 6.4 Top Panel CV/SV SW & LED: Press this button to switch the input source between composite or S-Video. The LED will illuminate in yellow when switched to the composite video input and red when switched to S-Video input.

  • Page 10: Osd

    6.5 OSD  INput format/OUTput Resolution  PC Monitor Information  Firmware Information 1. Press the button on the top panel once to switch in between CV/SV. If the input source is disconnected the OSD will show “No Signal”. 2. Press and hold the button on the top panel for 3 seconds to bring up OSD manual.

  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM Camcorder DVD Player S-Video Component Input Video Input Analogue Audio Input Video DC 5V S-Video UXGA/1080P Audio In HDMI SXGA/720P XGA/ 480P 576P HDMI Output HDTV/Monitor...

  • Page 12: Specifications

    8. SPECIFICATIONS Input port 1 x CV, 1 x SV, 1 x 3.5mm Phone Jack Output port 1 x HDMI Output Resolution PC: XGA/SXGA/UXGA HD: 480p/576p/720p@50/60 or 1080p@50/60 Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body ± 8kV (air-gap discharge) model: ±...

  • Page 13: Acronyms

    9. ACRONYMS Acronym Complete Term Composite Video High Definition NTSC National Television System Committee Phase Alternate Line Personal computer Set-Top-Box S-Video UXGA Ultra eXtended Graphics Array SXGA Super eXtended Graphics Array Extended Graphics Array...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
