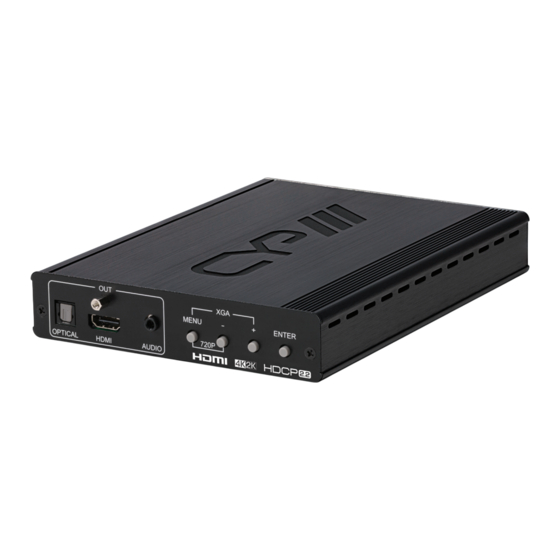

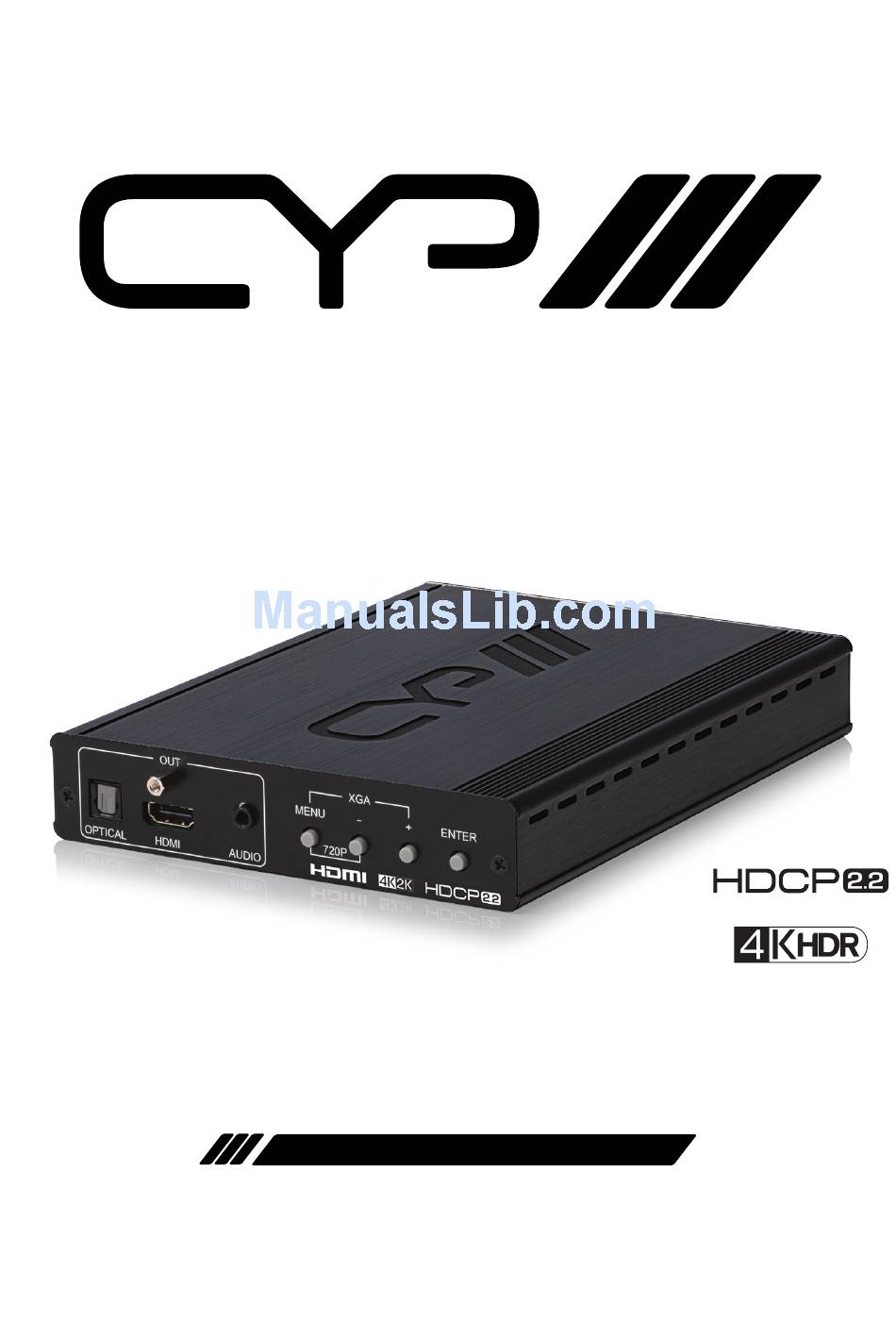

- Page 1 SY-HDVGA-4K22 PC/HDMI to HDMI 4K Scaler with Audio OPERATION MANUAL...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 OSD Menu ..........5 7. Connection Diagram ........9 8. -
Page 5: Introduction
3-D motion adaptive de-interlacing and frame rate conversion 1. INTRODUCTION is supported as well. The SY-HDVGA-4K22 is a compact and versatile scaler with HDMI Integrated EDID management options allow for control over the and VGA inputs, scaling to the HDMI output. With its wide range of way connected sources detect the unit. -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS • HDMI or VGA source equipment such as media players, video game consoles, set-top boxes, PCs or laptops • HDMI receiving equipment such as HDTVs, monitors or audio amplifi ers • The use of “Premium High Speed HDMI” cables is highly recommended 5. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU MENU ENTER ENTER 720P 720P OPTICAL OPTICAL HDMI HDMI AUDIO AUDIO OPTICAL OUT: Connect to powered speakers or an amplifi er for digital audio output using an appropriate optical cable. Supports LPCM 2.0 audio only. -
Page 8: Rear Panel
6.2 Rear Panel POWER DC 5V HDMI AUDIO OPTICAL SERV. PC IN: Connect to VGA source equipment such as a PC or laptop. YUV sources, such as DVD players, are also supported with the use of a 15-pin to 3-RCA adapter. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 9: Osd Menu
6.3 OSD Menu MAIN MENU SUB MENU PARAMETER DEFAULT PICTURE CONTRAST 0~100 BRIGHTNESS 0~100 EXIT FINETUNE 0~100 [HDMI/YPbPr SATURATION 0~100 source only] SHARPNESS 0~100 MIDDLE HIGH EXIT FINETUNE PHASE 0~100 [PC source only] CLOCK 0~100 H-POSITION 0~100 V-POSITION 0~100 EXIT COLOR 0~100 GREEN... - Page 10 MAIN MENU SUB MENU PARAMETER DEFAULT OUTPUT RESOLUTION 1280×1024@60 NATIVE (Cont.) (Cont.) 1440×900@60 1400×1050@60 1680×1050@60 1600×1200@60 1920×1200@60 (RB) 480P@60 576P@50 720P@50 720P@60 1080P@50 1080P@60 4K2K@24 4K2K@25 4K2K@30 4K2K@50 4K2K@60 4K2K@50 (4:2:0) 4K2K@60 (4:2:0) NATIVE UHD BYPASS BYPASS SCALER SCALER SIZE* FULL BEST FIT OVER SCAN...
- Page 11 MAIN MENU SUB MENU PARAMETER DEFAULT AUDIO HDMI INPUT AUTOMATIC AUTOMATIC EMBEDDED ANALOG OPTICAL PC INPUT ANALOG ANALOG OPTICAL VOLUME 0~100 100 [=2Vrms] [Analog audio only] EXIT TIMER 5~100 DISPLAY INFO INFO EXIT EDID MANAGE EDID COPY DEF. 1080P DEF. 1080P [HDMI source DEF.
- Page 12 MAIN MENU SUB MENU PARAMETER DEFAULT ADVANCED AUTO ADJUST (Cont.) EXIT FACTORY RESET EXIT Note: • When outputting a 4K resolution with the same refresh rate as the 4K source (or when bypass mode is enabled) the OSD items marked with an asterisk (*) will be disabled.
-
Page 13: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop PC/Laptop DVD or Blu-ray Player DVD or Blu-ray Player Media Streamer Media Streamer Analog Analog HDMI HDMI Digital Digital Input Input Audio Audio Input Input Audio Audio Input Input Input Input Power Power Supply Supply POWER POWER DC 5V DC 5V... -
Page 14: Specifi Cations
8. SPECIFICATIONS 8.1 Technical Specifi cations Video Bandwidth 600MHz/18Gbps Input Ports 1×HDMI, 1×VGA [15-pin D-sub], 1×Optical Audio, 1×3.5mm Audio Output Ports 1×HDMI, 1×Optical Audio, 1×3.5mm Audio Supported Resolutions 408i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) Cable Length 10 m (1080p@60Hz, 12-bit) 5 m (4K@60Hz, 4:4:4, 8-bit) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL... -
Page 15: Video Specifi Cations
8.2 Video Specifi cations 8.2.1 Supported Resolutions HDMI HDMI PC Resolution (Hz) Input Input Output 640×480@60/72/75/85 800×600@56/60/72/75/85 60Hz only 1024×768@60/70/75/85 1280×1024@60/75/85 1360×768@60 1280×800@60 1280×1024@60 ... -
Page 16: Scaled Resolutions
8.2.2 Scaled Resolutions UHD BYPASS SCALER BYPASS Input Output Bypass Scaler Bypass Scaler Resolution Resolution Path Path Path Path Non-4K Timing Any Timing 4K but not 24Hz 4K@24Hz 4K but not 25Hz 4K@25Hz 4K but not 30Hz 4K@30Hz ... -
Page 17: Audio Specifi Cations
8.3 Audio Specifi cations Formats HDMI Optical Analog LPCM 2.0 LCPM 5.1 LPCM 7.1 Bitstream HD Bitstream Sampling Rates (kHz) HDMI Optical 44.1 88.2 176.4 ... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Decibel EDID Extended Display Identifi cation Data HDCP High-bandwidth Digital Content Protection HDMI High-Defi nition Multimedia Interface LPCM Linear Pulse-Code Modulation Signal-to-Noise Ratio THD+H Total Harmonic Distortion plus Noise Ultra-High-Defi nition Video Graphics Array Extended Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 20 CIE-Group Ltd, 3 Widdowson Close, Blenheim Industrial Estate, Bulwell, Nottingham NG6 8WB Tel: +44 (0)115 977 0075 | Fax: +44 (0)115 977 0081 Email: info@cie-group.com www.cie-group.com...
