- Page 1 SY-P295 CV/SV to HDMI Converter and Scaler with Audio OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. Requirements .........6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 OSD Operation ........10 6.4 Reset Functionality .........11 7. -
Page 6: Introduction
1. INTRODUCTION The SY-P295N is designed to scale analogue video signal from a CV or SV source to a digital HDMI output, boasting a wide-range of HDTV and PC resolutions. Audio is combined with HDMI video output. This unit offers a selection of colour space and adjustment to obtain the best picture quality. -
Page 7: Features
5. FEATURES v1.2 HDMI, HDCP 1.1 and DVI 1.0 compliant Analogue to HDMI Converter Scaler with Audio Video Support: Input - PAL & NTSC. Output Resolution Supported: - PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA. - SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p Audio Support: Analogue Stereo, Digital stereo PCM, and DTS. -
Page 8: Operation Controls And Functions

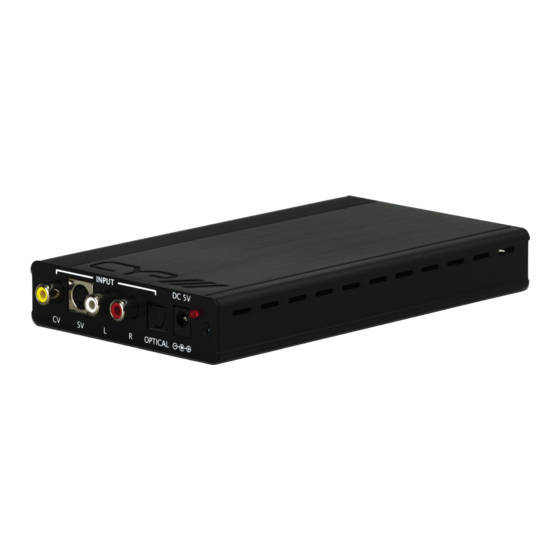

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT DC 5V OPTICAL CV/SV Input: Connect the CV/SV port to the input port of your source equipment such like DVD player. L/R Input: Connect the analogue audio input port to the output port of your analogue audio equipment. -
Page 9: Rear Panel
6.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO INPUT HDMI Output: Connect the HDMI output port to the HDMI input port of your display such like HDTV. TOSLink (optical fiber) Output: Connect the optical output port to the digital audio input port of your amplifier. Audio Output: Connect the PC 3.5mm mini-jack output port to the analogue audio input port of your equipment. -
Page 10: Osd Operation
6.3 OSD Operation Tier Option Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level FINETUNE - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT Back to 1st Tier... -
Page 11: Reset Functionality
Tier Option Tier Option Adjustment INFORMATION - SOURCE (Input Interface) INPUT (Input Resolution) OUTPUT (Output Resolution) VERSION (Firmware Version) EXIT Close OSD Menu 6.4 Reset Functionality To reset the unit, press and hold the MENU button while plugging the DC power into the unit to set the it back to factory default, with output resolution as NATIVE. -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM Camcorder DVD Player Composite Optical S-Video Input Video Digital Input Input Analogue Audio Input INPUT DC 5V OPTICAL OUTPUT MENU HDMI OPTICAL AUDIO INPUT Analogue Audio HDMI Output Output Optical Digital Output HDTV/Monitor Amplifier... -
Page 13: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Input ports 1 x CV/SV, 1 x R/L, 1 x TOSLink (optical fiber) Output ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Remote Control Discrete IR remote... -
Page 14: Supported Resolutions
8.2 Supported Resolutions CV/SV INPUT HDMI OUTPUT SD/HD 480i/576i (NTSC/PAL) 480p/576p 720p@(50/60) 1080i@(25/30) 1080p@(50/60) VGA@(60/72/75/85) SVGA@(56/60/72/75/85) XGA@(60/70/75/85) SXGA@(60/75/85) UXGA@60 WXGA@60(1280x800) WSXGA@60(1680x1050) WUXGA@60(1920x1200) ... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Composite Video HDMI High-Definition Multimedia Interface On-screen Display S-Video Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
