Summary of Contents for CYP SY-401V

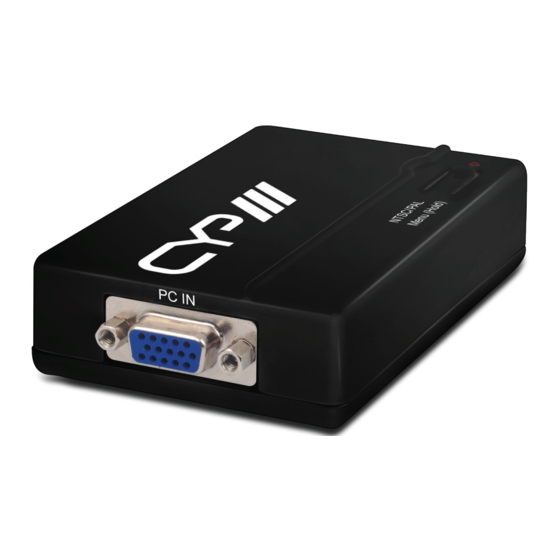

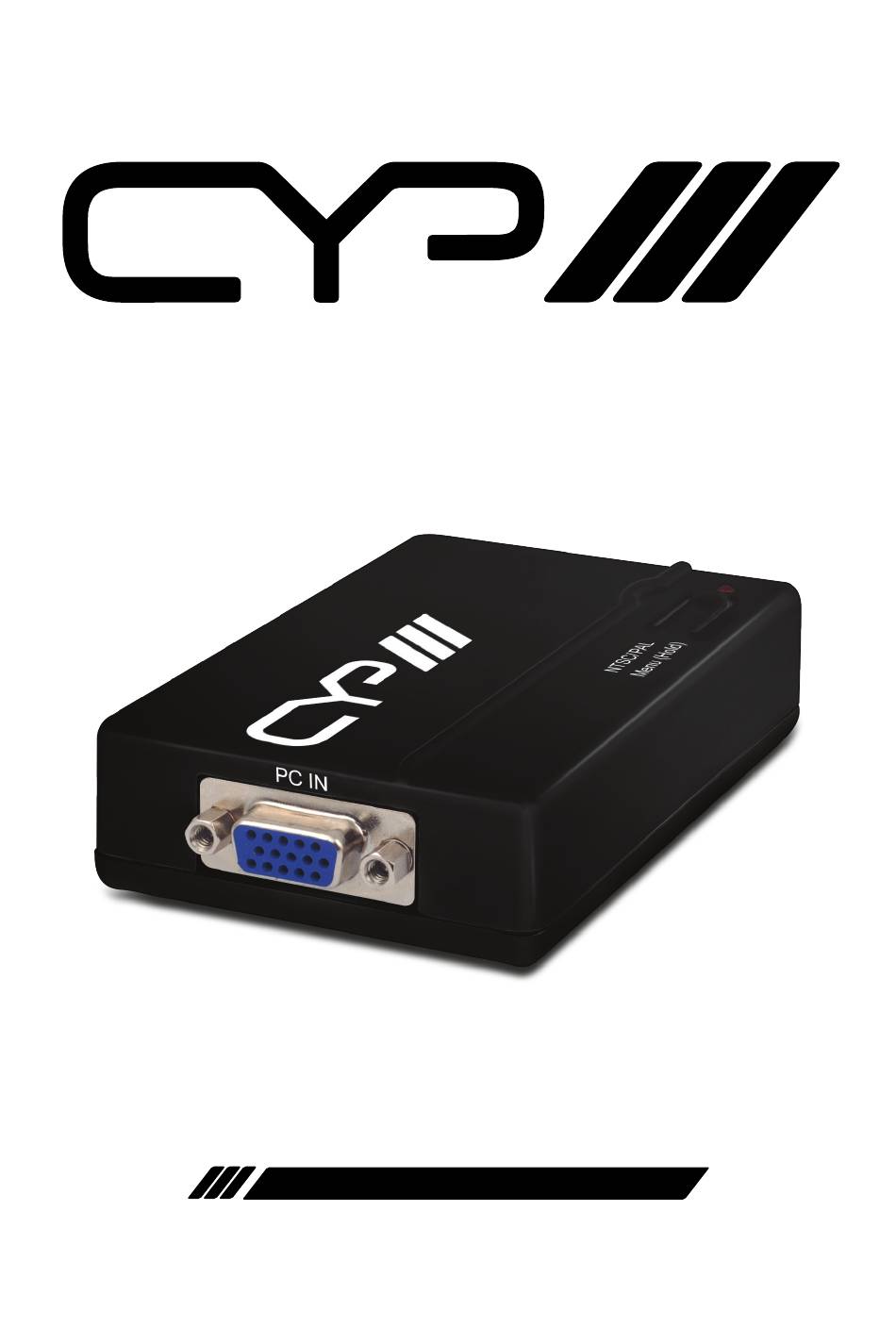

- Page 1 SY-401V PC/HD to Video Scan Converter OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Top Panel ............8 6.2 Left Panel ............9 6.3 Right Panel ........... 9 6.4 OSD Menu ..........10 6.5 Supported Input Resolutions ....12 7. -
Page 6: Introduction
1. INTRODUCTION The SY-401V PC/HD to Video Scan Converter is designed to down scale PC/Component source to an analogue CVBS (NTSC,PAL) signal. Supporting PC resolution up to WUXGA@60hz, this device is ideal for applications with multiple CCTV cameras, as the scaler enables the user to connect new video sources to older displays. -
Page 7: Features
5. FEATURES Converts the video signal from PC/component source to NTSC or PAL signal Accepts a wide range of component input resolutions from 480i to 1080p@60 Hz and PC input resolutions from VGA to WUXGA@60RB 3D noise reduction in both temporal and spatial domain Frame rate conversion Adaptive contrast enhancement OSD Display... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel NTSC/PAL MENU (Hold): Press this button to bring up the On-Screen Display (OSD) which will display the input timing and the output TV format information. When the OSD is displayed, press the button again to switch the output TV system from NTSC to PAL and from PAL to NTSC. -
Page 9: Left Panel
6.2 Left Panel PC IN PC IN: Connect to the source equipment such as a PC, laptop or digital camera with D-sub 15pin cable (VGA) or adaptor converter cable (Component). 6.3 Right Panel CV OUT: Connect to the output display TV or monitor with RCA cable for display of the converted composite (CVBS) signal. -
Page 10: Osd Menu
6.4 OSD Menu Press the Menu button 640×480 (Input Timing) once to bring up the OSD and display the input (IN) & NTSC (Output TV System) Output (OUT) information. NTSC Press the Menu button for 3 seconds to bring up the OSD then press Underscan 1 it repeatedly to move Underscan 2... - Page 11 Phase Adjustment: Range is from 0~31 and can be used to compensate for blurry image quality and/or character jiggle. Aspect Adjustment: There are total of 5 different aspect ratio adjustments: Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & Auto TV 16:9.
-
Page 12: Supported Input Resolutions
6.5 Supported Input Resolutions 480i 480p 576i HD Timing 576p (Component) 720p 50/60 1080i 50/60 1080p 50/60 640×480 60/72/75/85 720×400 800×600 56/60/72/75/85 1024×768 60/70/75/85 1152×864 70/75/85 1280×720 59/60 1280×768 60/60 (RB) PC Timing 1280×800 60/60 (RB) (RGBHV) 1280×960 59/60 1280×1024 59/60 1366×768 60/60 (RB) -
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Component Camera (with YPbPr to D-Sub PC or Notebook 15pin Cable) (VGA D-Sub 15pin Cable) VGA/Component Output Power Supply CVBS (Composite) Cable TV or Monitor... -
Page 14: Specifications
8. SPECIFICATIONS Input Port 1×VGA Output Port 1×CVBS (Composite Video) Output Video NTSC/PAL ESD Protection Human body ±8 kV (air-gap model: discharge) ±6 kV (contact discharge) Power Supply 5 V DC/1 A linear power adaptor (US/EU standards, CE/FCC/UL certified) Dimensions 64 mm (W)×104 mm (D)×26 mm (H) Weight 120 g... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital content protection HDMI High Definition Multimedia Interface Infrared... - Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.02...
