- Page 1 SY-P295N CV/SV to HDMI 1080p Scaler Box Operation Manual SY-P295N...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Package Contents..............4. Operation Controls and Functions.......... 4.1 Front Panel................4.2 Rear Panel................4.3 OSD Operation..............5. Reset Functionality..............6. Specifications................6.1 General Specification............6.2 Support Resolution..............7. Connection and Installation............. -
Page 3: Introduction
Simply select among the audio input sources in the OSD menu, then output the audio to HDMI, TOSLink and phone jack simultaneously. 3. Package Contents SY-P295N CV/SV to HDMI 1080p Scaler Box 5VDC Power Supply Adaptor Operation Manual Stereo audio cable (2RCA) x 1... -
Page 4: Operation Controls And Functions

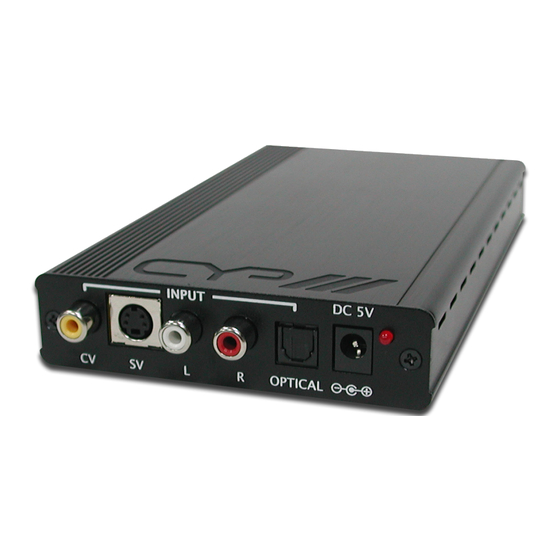

4. Operation Controls and Functions 4.1 Front Panel DC 5V INPUT OPTICAL 1 . CV/SV Input: Connect the CV/SV port to the input port of your source equipment such like DVD player. 2 . L/R Input: Connect the analog audio input port to the output port of your analog audio equipment. -
Page 5: Rear Panel
4.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO INPUT 1 . HDMI Output: Connect the HDMI output port to the HDMI input port of your display such like HDTV. 2 . TOSLink (optical fiber) Output: Connect the optical output port to the digital audio input port of your amplifier. -
Page 6: Osd Operation
4.3. OSD Operation 1st Tier Option 2nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level... -
Page 7: Specifications
6. Specifications 6.1 General Specification Input Ports 1 x CV/SV, 1 x R/L, 1 x TOSLink (optical fiber) Output Ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Remote Control Discrete IR remote...
