Module Floor Cutout

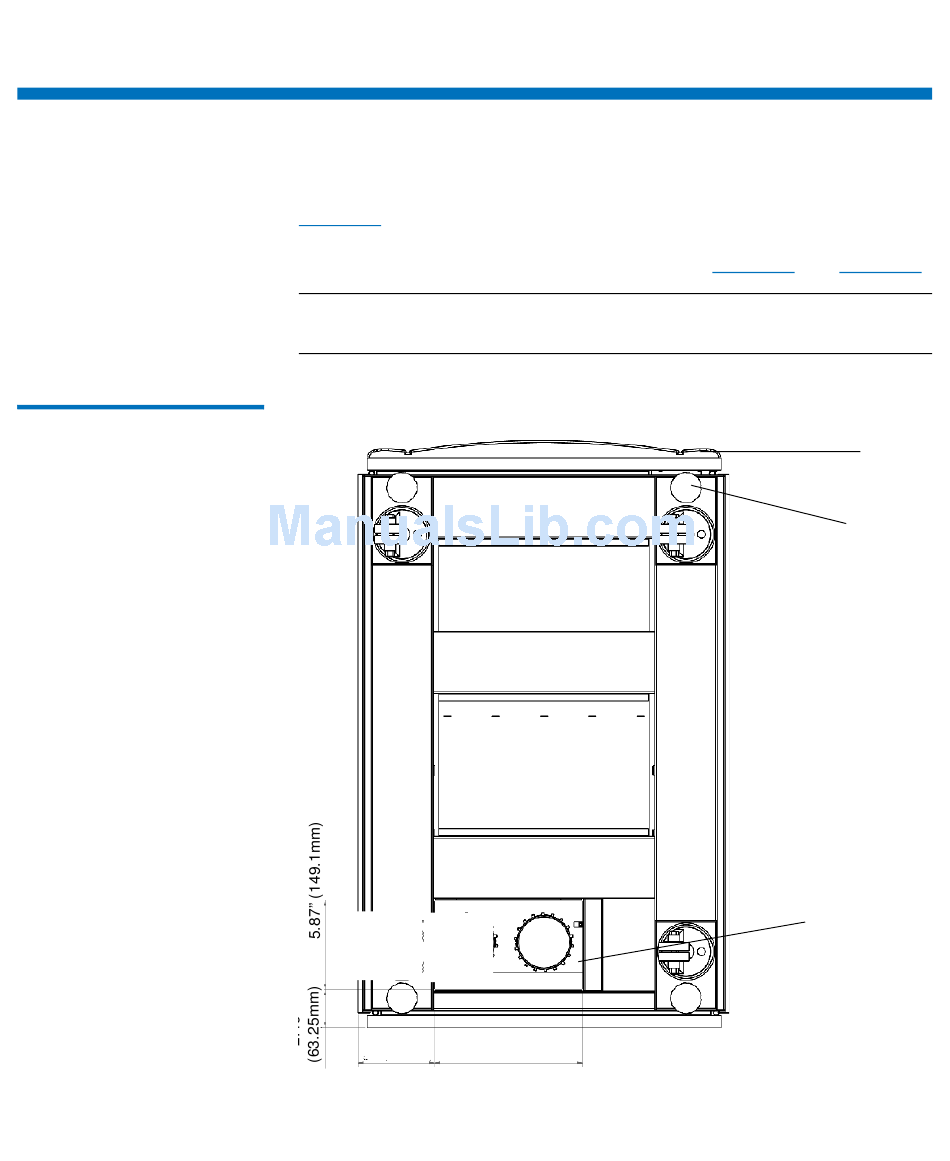

Figure 27 Module Floor
Cutout (Bottom View)
Scalar i6000 Planning Guide
The foot pad positions are shown from underneath the library in
Figure 27. The module floor cutouts are the same for the control
module, expansion modules, and parking modules. However, the HDEM
has a different module floor cutout, as seen in
Note: Floor cutouts can be used for cable access as well as the access
hole at the top of the module.
9.86" (245.34mm)
5.00" (127.02mm)
Chapter 3: System Specifications

Module Floor Cutout

Figure 29 and Figure
cutout
30.
front
foot pad
