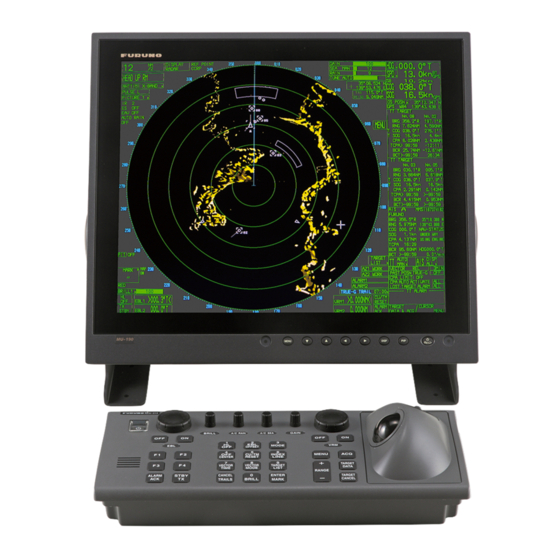

FCR-2117/2127/2817/2827/2117-BB/2127-BB
nstallation Manual
I
SAFETY IINSTRUCTIONS......................i
EQUIPMENT LISTS .............................. iii
SYSTEM CONFIGURATION ................. vi
1. MOUNTING .................................... 1-1
1.1 Antenna Unit................................ 1-1
1.2 Monitor Unit................................. 1-6
1.3 Control Unit ............................... 1-10
1.4 Radar Processor Unit ................ 1-15
1.5 Chart Processor Unit ................. 1-16
1.6 LAN Adapter/B Adapter ............. 1-17
2.
WIRING ....................................... 2-1
2.1 Interconnection............................ 2-1
2.2 Antenna Unit................................ 2-2
2.3 Monitor Unit................................. 2-6
2.4 Radar Processor Unit .................. 2-7
2.6 Chart Processor Unit ................. 2-14
2.7 LAN Adapter.............................. 2-14
2.8 VDR .......................................... 2-17
2.9 EMI Core for Chart
3.
3.1 Radar Processor Unit .................. 3-1
Setting........................................ 3-2
3.3 Setting IP Address ....................... 3-3
MARINE RADAR/ARPA
Processor Unit .... 2-18
Comply with MSC.192(79)
3.4 Setting Radar Number ................ 3-7
3.5 Initializing Tuning ........................ 3-9
3.6 Heading Alignment .................... 3-10
3.7 Sweep Timing ........................... 3-12
3.8 Suppressing Main Bang ............ 3-13
3.9 Other Settings ........................... 3-13
Initialize Parameters ................ 3-20
3.11 Parameters.............................. 3-23
EC-1010 .................................. 3-43
Wires ....................................... 3-49
EQUIPMENT................................ 4-1
4.1 Gyro Converter GC-10 ................ 4-1
4.2 Junction Box .............................. 4-9
4.3 B Adapter .................................. 4-13
5.
INPUT/OUTPUT DATA................. 5-1
5.1 Radar Processor Unit.................. 5-1
5.2 Chart Processor Unit................... 5-2
PACKING LISTS .................................A-1
OUTLINE DRAWINGS ..................... D-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCR-2127 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furuno FCR-2127

Summary of Contents for Furuno FCR-2127

  • Page 1: Table Of Contents

    MARINE RADAR/ARPA FCR-2117/2127/2817/2827/2117-BB/2127-BB nstallation Manual Comply with MSC.192(79) 3.4 Setting Radar Number ....3-7 SAFETY IINSTRUCTIONS......i 3.5 Initializing Tuning ......3-9 EQUIPMENT LISTS ......iii 3.6 Heading Alignment ....3-10 SYSTEM CONFIGURATION ....vi 3.7 Sweep Timing ......3-12 3.8 Suppressing Main Bang .... 3-13 1.
  • Page 2 The paper used in this manual is elemental chlorine free. ・FURUNO Authorized Distributor/Dealer 9-52 Ashihara-cho, Nishinomiya, 662-8580, JAPAN A : JUL 2006 Printed in Japan All rights reserved. J1 : AUG . 08, 2012 Pub. No. IME-35590-J1 *00015804318* *00015804318* (AKMU ) FCR-2117/27/2817/27...

  • Page 3: Safety Iinstructions

    Note: If the antenna unit is installed at a close distance in front of the wheel house, your administration may require halt of transmission within a certain sector of antenna revolution. This is possible. Ask your FURUNO representive or dealer to provide this feature. Model...
  • Page 4 CAUTION WARNING Do not open the equipment Observe the following compass safe unless totally familiar with distances to prevent deviation of a electrical circuits and magnetic compass: service manual. Standard Steering compass compass Only qualified personnel ELECTRICAL Antenna Unit should work inside the 1.40 m SHOCK 2.15 m...

  • Page 5: Equipment Lists

    42 rpm, 2000 mm, W/CP03-19101 FCR-2117/2117-BB/2817, XN24AF-RSB096-078/A 24 rpm, 2400 mm, W/CP03-19101 FCR-2117/2117-BB, 2817, XN24AF-RSB097-078/A 42 rpm, 2400 mm, W/CP03-19101 Antenna Unit FCR-2127/2127-BB/2827, 24 rpm, 2000 XN20AF-RSB096-079/A mm, W/CP03-19101 FCR-2127/2127-BB/2827, 42 rpm, 2000 XN20AF-RSB097-079/A mm, W/CP03-19101 FCR-2127/2127-BB/2827, 24 rpm, 2400 XN24AF-RSB096-079/A...
  • Page 6 SP03-12501 008-485-360 For antenna unit SP03-14404 008-535-910 For RPU-016 100 VAC set SP03-14405 008-535-920 For RPU-016 220 VAC set Spare Parts SP03-14700 008-549-730 For monitor unit SP03-14800 For EC-1000C 000-083-570 : This radar has two processor units: RPU-016 and EC-1000-C. In this book, RPU-016 is called “radar processor unit”...
  • Page 7 Refer to the table shown below to confirm your category. Category Radar type ANT. rotation speed FCR-2817, FCR-2827, Normal speed CAT 1C FCR-2837S, FCR-2827W, FCR-2837SW CAT 1HC FCR-2817, FCR-2827, FCR-2837S FCR-2117/BB, FCR-2127/BB, Normal speed CAT 2C FCR-2137S/BB Sticker for Category FCR-2117/BB, FCR-2127/BB, CAT 2HC FCR-2137S/BB...

  • Page 8: System Configuration

    : Standard EC-1010 : Option ALARM : Dockyard supply ALARM B ADAPTER Category of Units 24 VDC Antenna Unit: Exposed to weather *: For FCR-2117-BB and FCR-2127-BB, a monitor All other units: Protected from weather unit is prepared by user.
  • Page 9 1) Connect the EPFS which is approved in accordance with the requirements of the IMO in resolution MSC.112(73) is used. 2) Connect the SDME which is approved in accordance with the requirements of IMO in resolution MSC.96(72) is used. 3) Use the gyrocompass having an update rate that is adequate for the ship’s rate of turn. *: For FCR-2117-BB/2127-BB a monitor unit is prepared by user.
  • Page 10 This page intentionally left blank. viii...

  • Page 11: Mounting

    1. MOUNTING NOTICE Do not apply paint, anti-corrosive sealant or contact spray to coating or plastic parts of the equipment. Those items contain organic solvents that can damage coating and plastic parts, especially plastic connectors. Antenna Unit Mounting considerations • The antenna unit is generally installed either on top of the wheelhouse or on the radar mast, on a suitable platform.
  • Page 12 1. MOUNTING • Install the antenna unit away from interfering high-power energy sources and other transmitting radio antenna. • Keep the lower edge of the antenna unit above the safety rail by 500 mm or more. • Two antenna units should be mounted as below: more than 20 more than 1 m...
  • Page 13 1. MOUNTING Assembling the antenna unit The antenna unit consists of the antenna radiator and the antenna unit chassis, and they are packed separately. Fasten the antenna radiator to the antenna unit chassis as follows: 1. Attach two guide pins to the underside of the antenna radiator. 2.
  • Page 14 1. MOUNTING Antenna radiator Waveguide Radiator bracket Guide pin (XN20AF, XN24AF Hex bolt (M8x40), 8 pcs. only) (XN20AF, XN24AF) O-ring Fastening the radiator to the radiator bracket Fastening the antenna unit to the mounting platform The antenna unit may be assembled before hoisting it to the mounting platform. However, do not lift the antenna unit by the radiator.
  • Page 15 1. MOUNTING 4. Place the antenna unit on the rubber mat, orienting the unit so the bow mark on its base is facing the ship’s bow. Ground terminal Rubber Bow mark Antenna unit, front view 5. Fasten the antenna unit to the mounting platform with M12x60 hex bolts, nuts, flat washers and seal washers.

  • Page 16: Monitor Unit

    1. MOUNTING Monitor Unit The monitor unit can be flush mounted in a console panel, or mounted on a desktop using the optional accessories. For MU-190/231, see the applicable Operator’s Manual(s). When selecting a mounting location, keep in mind the following points: •...
  • Page 17 1. MOUNTING 4-φ8 FIXING HOLES 570±1 4-φ8 FIXING HOLES Monitor unit MU-231CE (For FCR-2817/2827) Flush mounting of monitor unit Panel hook Panel cover Fixing screw Attaching panel hook and panel cover Note: If you need to remove the monitor unit from the mounting panel, remove the four panel covers with your fingernail and use two panel hooks supplied as accessories to lift the monitor unit.
  • Page 18 1. MOUNTING Desktop mounting Use the optional accessories to mount the monitor unit on a desktop. • For MU-201CE: FP03-09820 (Code No.: 008-535-560) • For MU-231CE: FP03-09830 (Code No.: 008-536-020) Contents of FP03-09820/09830 Name Type Code No. Remarks Hanger L 03-163-1111 100-305-141 Hanger R...
  • Page 19 1. MOUNTING Hanger (L) M12 bolts for fixing (Dockyard supply) Hanger stay Hanger (R) Panel cover Plastic rivet Flat Washer M10 Hex bolt (M6x25) Spring Washer M10 Hex bolt M10x30 Hole plug Panel cover To remove this, insert fingernail in groove. Monitor Unit The hand grip is optionally available for the desktop mounting monitor unit.

  • Page 20: Control Unit

    1. MOUNTING Control Unit The control unit may be mounted on a desktop, with or without the KB fixing metal (supplied), which mounts the control unit at an angle. Mounting considerations When selecting a mounting location, keep in mind the following points: •...
  • Page 21 1. MOUNTING Fixing without KB fixing metal 1. Drill four mounting holes of 5 mm diameter referring to the outline drawing at the back of this manual. 2. Fix the control unit with four screws (M4) from under side of the desktop. (The M4 screws with a sufficient length for the thickness of the desktop should be provided locally.) 4-M4 (Fixing holes)
  • Page 22 1. MOUNTING 1. Prepare a cutout in the mounting location as shown in the figure below. 170±2 176±2 ±2 150±2 For RCU-020 For RCU-015FEA and RCU-016 2. Set the control unit to the cutout. 3. Attach the mounting plate to the control unit with four screws from the rear side. 4.
  • Page 23 1. MOUNTING To connect RCU-016 in series with RCU-020 1. Pass the cable derived from RCU-016. 2. Connect the connector of the cable to J502. 3. Clamp the copper part of the cable with the cable clamp. Inside of RCU-020 1-13...
  • Page 24 1. MOUNTING To change the cable entry To change the cable entry from the side (default) to the bottom, modify the unit as shown below. Bottom of the unit Screw M3x8 2. Pull out the cable. Cable clamp 3. Pass the cable from this hole. 03-163-7804 Screw M4x8...

  • Page 25: Radar Processor Unit

    1. MOUNTING Radar Processor Unit Mounting considerations When selecting a mounting location, keep in mind the following points: • Locate the processor unit away from heat sources because of heat that can build up inside the cabinet. • Locate the equipment away from places subject to water splash and rain. •...

  • Page 26: Chart Processor Unit

    1. MOUNTING Chart Processor Unit Mounting considerations When selecting a mounting location, keep in mind the following points: • Locate the processor unit away from heat sources because of heat that can build up inside the cabinet. • The vibration at the mounting location should be minimum. •...

  • Page 27: Lan Adapter/B Adapter

    1. MOUNTING LAN Adapter/B Adapter Mounting considerations When selecting a mounting location, keep in mind the following points: • Locate the adapter away from heat sources because of heat that can build up inside the cabinet. • The vibration should be minimal. •...
  • Page 28 1. MOUNTING This page is intentionally left blank. 1-18...

  • Page 29: Wiring

    2. WIRING Interconnection Wiring consideration To lessen the chance of picking up electrical interference, avoid where possible routing the signal cable near other onboard electrical equipment (radars, transmitting radio antennas, etc.) Also avoid running the cable in parallel with power cables. When crossing with other cable, the angle should be 90°to minimize the magnetic field coupling.

  • Page 30: Antenna Unit

    2. WIRING Antenna Unit NOTE The magnetron in the transceiver module will de- magnetize if it contacts ferrous material. When dismounting the transceiver module, lay it on its side or on top of non-ferrous material as shown below. Transceiver module (magnetron inside) Non-ferrous block...
  • Page 31 2. WIRING 5. Pass the signal cable through the cable entry hole in the antenna unit mounting platform. Trim the cable so about 80 cm of it protrudes past the cable gland. Antenna unit, front view, cover removed 6. Fabricate the signal cable RW-9600 as shown below. a) Remove the outer vinyl sheath, by about 500 mm, then armor and inner 500mm...
  • Page 32 2. WIRING 8. Nip the armor between two washers, and trim the excess armor from around washers. Pass the shield between the clamping ring and the washer as shown below. Fasten the clamping ring with the screws. 4-M4x16 Clamping ring Washer Shield Rubber gasket (25B)
  • Page 33 2. WIRING 11. Set the transceiver module to the antenna unit, push it in until it stops, and then tighten fixing bolts (4 pcs.). Connect plugs P823, P803, P831, P921 and J911 (if installed). Fasten the shield wire to the wing nut on the transceiver module. CAUTION Push in transceiver unit until it stops.

  • Page 34: Monitor Unit

    2. WIRING Monitor Unit Three cables are terminated at the monitor unit: two signal cables from the chart processor unit and one power cable from the ship’s mains. For MU-190/231, see the applicable Operator’s Manual(s). POWER connection for RS-232 for DVI View A Monitor unit...

  • Page 35: Radar Processor Unit

    2. WIRING Radar Processor Unit Three cables are terminated at the radar processor unit: the antenna unit cable, switching hub cable, and the power cable. Cables other than the power cable come with a connector pre-attached to them for connection to the processor unit. Fabricate the power cable as below.
  • Page 36 2. WIRING Connection of cables The power cable is connected to the terminal board on the rear panel. Other cables are connected to the printed circuit board 03P9342. Power cable clamp Power cable terminal board Network Remove the protection cover. FUSE DC/AC Power cable...
  • Page 37 2. WIRING Location of connectors Open the processor unit as follows and the 03P9342 board appears. Cable clamp 03P9342 J608 J621 J612 Gyro converter board or AD-100 J607 External alarm J620 J606 J611 J619 J605 J603 Gyro converter board J604 Heading sensor J610 J602...
  • Page 38 2. WIRING Cable fabrication for the cables connected to the 03P9342 board • Signal cable RW-9600 (Between antenna unit and radar processor unit) Vinyl sheath Armor Shield After exposing cores, Vinyl tape wind shield around the armor. Coaxial cable Conductor Fold back shield.
  • Page 39 2. WIRING Connection of Sub-display A conventional remote display and/or FCR-21x7 series radar can be connected to J617 and J618 in the processor unit as a sub-display. However, the controls for GAIN and STC are different depending on J617 and J618. Refer to the table to connect sub-displays. Port Conventional remote FCR-21x7 series radar...

  • Page 40: Changing Ac Power Specification Of Radar Processor Unit

    2. WIRING Changing AC Power Specification of Radar Processor Unit To change AC power voltage between 100 VAC and 220 VAC, add or remove jumper plug P108 on the PWR board 03P9339 and change the fuse on the processor unit according to ship’s mains as shown in the table below.
  • Page 41 2. WIRING J106 J105 (P)HV PWR board J104 J103 (OVER) J101 P108/J108 AC FIL 8 7 6 5 4 3 2 1 Jumper plug (VH8P) How to adjust the overvoltage detection circuit: 1. Add or remove the jumper plug P108 and change the fuse. 2.

  • Page 42: Chart Processor Unit

    2. WIRING Chart Processor Unit 1: CONTROL UNIT 5: USB 1 10: MOUSE/KEYB. 2: RADAR UNIT 7: NOT IN USE 11: VGA1 3: COM 1 8: NOT IN USE 12: LAN 2 4: PARALLEL 9: DVI1 13: LAN 1 Chart processor unit, rear view LAN Adapter Cables fabrication for the cables connected to the LAN adapter Use the following JIS (Japanese Industrial Standards) cables or equivalent.
  • Page 43 2. WIRING LAN port to HUB-100 RX1+ RX5+ RX3+ RX7+ RX1- RX3- RX5- RX7- TX1+ TX5+ TX3+ RL2NC TX1- TX3- TX5- RL2C RL2NO RX2+ RX6+ RX4+ LANRX+ RX8+ RX2- RX4- RX6- RX8- LANRX- RL1NC TX4+ LANTX+ RL3NC TX4- RL1C RL3C LANTX- RL1NO +24V_IN...
  • Page 44 2. WIRING Serial data channels in general An example of serial channel (here channel 1) RX1+ input terminals for electrical standards IEC 61162-1, and RS-422 RX1- RX+ = A and RX- = B as defined in IEC 61162-1 TX1+ output terminals for electrical standards IEC 61162-1 and RS-422 TX1- TX+ = A and TX- = B as defined in IEC 61162-1 output terminals for electrical standard RS-232C...

  • Page 45: Vdr

    2. WIRING If the distance between VDR and the chart radar is 10 m or less, the VDR can be connected directly to the chart radar as follows. Radar FCR-21x7 series VR-3000 Processor unit Data collecting unit EC-1000C VR-3010 3COX-2P-6C, 10 m D-sub D-sub If the distance between VDR and the chart radar is more them 10 m, use optional...
  • Page 46 2. WIRING EMI Core for Chart Processor Unit When connecting the LAN cable MOD-Z072-020+ (supplied) to the chart processor unit EC-1000C, attach the EMI core (type: RFC-10, supplied as installation materials) to that cable as shown below. Fasten core with two cable ties to fix the core.

  • Page 47: Setting And Adjustment

    3. SETTING AND ADJUSTMENT Radar Processor Unit The radar processor unit is commonly used with the IMO radar FAR-2xx7 series and the chart radar FCR-2xx7 series. The difference is DIP switch (S1) setting as follows. • For chart radar S1 - #3: ON (#1 and #2 disable) Setting •...

  • Page 48: Monitor Unit (Mu-190/Mu-231) Setting

    3. SETTING AND ADJUSTMENT Monitor Unit (MU-190/MU-231) Setting The [INSTALLATION SETTING] menu appears only when the power is turned on for the first time after installation of the monitor unit. Menu INSTALLATION SETTING EXT BRILL CTRL RS-485 (OFF/DVI1/DVI2/RS-232C/RS-485/USB) SERIAL BAUDRATE 4800bps (4800/9600/19200/38400) COLOR CALIBRATION...

  • Page 49: Setting Ip Address

    3. SETTING AND ADJUSTMENT Setting IP Address Running Windows The chart processor unit has two local area network interfaces. To set the IP Address, run WindowsXP as follows. 1. Insert the service keyboard to the front panel of the chart processor unit. 2.
  • Page 50 3. SETTING AND ADJUSTMENT Local Area Connection for LAN2 (LAN IF Network) LAN2 interface is used to connect LAN Adapter (or HUB-100) to the chat processor unit EC-1000C. To configure IP Address for this, proceed as follows: 1. Open the Control Panel. 2.
  • Page 51 3. SETTING AND ADJUSTMENT Confirmation of Registry 1. Open the start menu, and then select “Run”. 2. Type “regedit”, and then click OK to open field. 3. Open folder ¥¥HKEY_LOCAL_MACHINE¥SOFTWARE¥FFOY¥ECDIS¥LANadapter.
  • Page 52 3. SETTING AND ADJUSTMENT 4. Confirm the settings are shown below. If necessary, change it appropriately. No.1 Chart radar No.2 Chart radar LAN Arpa Local Address 172.31.3.33 172.31.3.34 LAN If Local IP Address 10.0.0.184 10.0.0.185 LAN If Adapter 1ID 0X000000002 (2) 0X000000004 (4) LAN If Adapter 2ID 0X000000003 (3)

  • Page 53: Setting Radar Number

    3. SETTING AND ADJUSTMENT Setting Radar Number If multiple radars are connected using the network hub, set as [Main Menu] follows. Chart Menu 1. Turn on a chart radar that you want to change its number. 2. Connect the USB memory which contains “service.pas” file. Event If you do not have a USB memory, enter the password to Record...
  • Page 54 3. SETTING AND ADJUSTMENT 6. Roll the wheel to choose “Radar Initialize” and click the wheel to show Radar Initialize menu and choose “Page 2”. Radar Initialize Radar MAIN TOP Model 7. Place the cursor on the numeric character of Radar Number. Its color changes. 8.

  • Page 55: Initializing Tuning

    3. SETTING AND ADJUSTMENT 13. Click the mark to show the drop-down list, scroll the list and choose “Radar Echo Overlay / ARPA communication (LAN)”. The following dialog box appears. 14. In “Radar Transceiver” field, set the same number of the radar number. 15.

  • Page 56: Heading Alignment

    3. SETTING AND ADJUSTMENT Heading Alignment You have mounted the antenna unit facing straight ahead in the direction of the bow. Therefore, a small but conspicuous target dead ahead visually should appear on the heading line (zero degrees). In practice, you will probably observe some small bearing errors on the display because of the difficulty in achieving accurate initial positioning of the antenna unit.
  • Page 57 3. SETTING AND ADJUSTMENT 4. Measure the bearing of the stationary target on the navigation chart and calculate the difference between actual bearing and apparent bearing on the radar screen. 5. Press the [MENU] key to show the main menu. 6.

  • Page 58: Sweep Timing

    3. SETTING AND ADJUSTMENT Sweep Timing Sweep timing differs with respect to the length of the signal cable between the antenna unit and the processor unit. Adjust sweep timing at installation to prevent the following symptoms: • The echo of a “straight” target (for example, pier), on the 0.125 nm range, will appear on the display as being pulled inward or pushed outward.

  • Page 59: Suppressing Main Bang

    3. SETTING AND ADJUSTMENT Suppressing Main Bang If main bang appears at the screen center, suppress it as follows. 1. Transmit the radar on a long range and then wait ten minutes. 2. Adjust gain to show a slight amount of noise on the display. 3.
  • Page 60 3. SETTING AND ADJUSTMENT Antenna height Select height (m) of the radar antenna unit from the sea surface among 5, 7.5, 10, 15, 20, 25, 30, 35, 40, 45 and “more 50 m”. Near STC, Mid STC and far STC Use the default setting.
  • Page 61 3. SETTING AND ADJUSTMENT Blind Sector 1 and Blind Sector 2 Set area (up to 2) where no radar pulses will be transmitted. For example, set the area where an interfering object at the rear of the scanner would produce a dead sector (area where no echoes appear) on the display.
  • Page 62 Confirm the model of your radar. If the setting of this item is different from your model (combination of the antenna unit), the radar functions abnormally. For FCR-2117/2817 25 UP: For FCR-2127/2827 On Time and TX Time These items show number of hours the radar has been turned on and transmitted, respectively.
  • Page 63 3. SETTING AND ADJUSTMENT OWN SHIP INFO menu setting Open the Own Ship Info menu by clicking “Page 2” tab on the “Radar Initialize” menu. Radar Initialize Radar MAIN TOP Model Length and Width To inscribe own ship shape on the screen when you choose it on the menu, enter length and width of the ship.
  • Page 64 3. SETTING AND ADJUSTMENT TT PRESET menu setting TTM OUTPUT Set the output format of tracked targets among OFF, REL and TRUE. OFF: No output REL (relative): Target bearing from own ship, degree relative. Target course, degree relative. TRUE: Target bearing, degree true. Target course, degree true.
  • Page 65 3. SETTING AND ADJUSTMENT ANT SELECT Set the antenna radiator type of your radar among XN12AF, XN20AF, XN24AF, XN4A, XN5A, SN30AF, SN36AF, SN4A, or SN5A. AUTO ACQ CORRE Set the correlation count of automatic acquisition. The setting range is 3 to 10. AUTO ACQ WEED Set the cancel count of automatic acquisition.

  • Page 66: Saving And Restoring Radar Initialize Parameters

    3. SETTING AND ADJUSTMENT 3.10 Saving and Restoring Radar Initialize Parameters Saving or restoring on hard disk of Chart radar Radar initialize parameters can be saved on hard disk of Chart processor when you have set correct operative parameters. They can then be restored when ever it is required. To save parameters: 1.
  • Page 67 3. SETTING AND ADJUSTMENT 5. Roll the wheel to choose “Radar Initialize” and click the wheel to show INITIALIZE menu. 6. Rotate the trackball to place the cursor on the mark. The “Radar Initialize” menu appears. 7. Select “Save” to make backup to Hard disk Restore is done by proceeding steps 1-6 and selecting “Restore”...
  • Page 68 3. SETTING AND ADJUSTMENT Backing up, restoring radar parameters with a USB memory Use a USB memory to backup, restore radar initialize parameters. 1. Select the ECDIS mode. 2. Press the MENU key on the control unit to show the Main Menu. 3.

  • Page 69: Parameters

    3. SETTING AND ADJUSTMENT 3.11 Parameters Open the Installation Parameter dialog box as described on page 3-8. Restart needed to activate Activate changes now There are several buttons in this dialog box, and these are described below: Set parameters default This restores Installation parameters which are saved as a backup copy by service personnel.
  • Page 70 3. SETTING AND ADJUSTMENT What happens after pressing OK After pressing OK, you may get one of the following alarms. "4000 No Sensor parameters": The Sensor Parameters are corrupted. Use backup of Parameters. "3000 Param change disabled": The FCR-21x7/28x7 cannot accept change of parameters if Kalman Filter is ON.
  • Page 71 3. SETTING AND ADJUSTMENT General setting If there is no optional B adapter, select Connected = If there is an optional B adapter, select Connected = YES. Notes: • Center position is geometrical center of the ship. • Conning Position is the point of observation. 3-25...
  • Page 72 3. SETTING AND ADJUSTMENT Radar Antenna Position Conning Position Breadth = 30 m GPS Antenna Position Dual Axis Log Position From Center Position to Bow Position =100 m From Center Position to Dual Axis Log Position = 70 m Center Position From Center Position to Conning position = -60 m...
  • Page 73 3. SETTING AND ADJUSTMENT Gyro 1 setting Settings when Radar CPU is receiving data in AD-10 format. Radar Settings when Radar CPU is receiving data in serial format. Radar Gyro 2 setting Gyro 2 is not connected. 3-27...
  • Page 74 3. SETTING AND ADJUSTMENT Log setting Settings when log is single axis speed log transmitting IEC-61162-1. Message used is VBW. Notes: • Talker identifier can be defined for IEC 61162-1 (typical talker for log is VD). If talker identifier is defined as XX, then it is ignored. 3-28...
  • Page 75 XX, then it is ignored. • IEC 61162-1 uses VBW. • If you selected VBW message, then bottom track is available from dual-axis log and water track could be available from log. • DS-30 is a special device Furuno DS-30. 3-29...
  • Page 76 3. SETTING AND ADJUSTMENT Radar Echo Overlay / communication (LAN) FIRST Radar Radar transceiver: For multiple radar system, enter a radar system number among 1, 2, 3 and 4. Connected: To connect above radar, choose YES. Device Interface: Choose a device interface among “Own for Chart Radar”, “Chart Radar”, “IMO Radar”, “Own for Chart Radar with INS”...
  • Page 77 3. SETTING AND ADJUSTMENT Example1 No.1 Radar No. 2 Radar No.3 Radar No. 4 Radar Chart radar Chart radar IMO radar None Radar Radar Radar transceiver transceiver transceiver 1 X-band 2 X-band 3 S-band Chart Chart processor processor EC-1000C EC-1000C Setting on EC-1000C of the chart radar 1 Own radar is No.1 and chart radar.
  • Page 78 3. SETTING AND ADJUSTMENT Sband3 No. 3 radar is S-band IMO radar. There is no No. 4 radar. So the setting is shown above. So the setting is shown above. Example 2 Below is an example where FCR-2xx7 and FEA-2x07 are configured to use shared route information.
  • Page 79 3. SETTING AND ADJUSTMENT Position equipment An example of DGPS receiver which is able to send IEC 61162-1 Ed. 2 messages GGA+VTG (includes information about Datum of output position). Right is an example of GPS receiver with ignored talker identifiers for both GLL and GLL+VTG VTG messages.
  • Page 80 3. SETTING AND ADJUSTMENT An example of setting for DGPS receiver which is able to send IEC 61162-1 Ed. 2 messages. GLL+VTG An example of setting for Loran receiver. GLL+VTG 3-34...
  • Page 81 3. SETTING AND ADJUSTMENT Notes: • Talker identifier can be separately defined for speed and course (VTG message) and for position (GLL, GGA or PAT message). If talker identifier is defined as XX, then it is ignored. • IEC 61162-1 ed1 or ed2: GGA uses messages VTG and GGA. Recommended for DGPS. Correct operation of a DGPS sensor requires that the system also receives VTG message.
  • Page 82 3. SETTING AND ADJUSTMENT Radar Antenna Position Conning Position GPS Antenna Position Dual Axis Log Position From Antenna Position to Conning position = 5 m From Antenna Position to Conning position = 10 m From Antenna Position to Conning position = -5 m From Antenna Position to Conning position = 10 m Note for service engineer:...
  • Page 83 3. SETTING AND ADJUSTMENT Echo Sounder and Weather Notes: (Air Pressure) • Not used by this system, should have Connected = NO Notes: (Air Humidity) • Not used by this system, should have Connected = NO 3-37...
  • Page 84 3. SETTING AND ADJUSTMENT Wind sensor Here is an example of a wind sensor which is connected to LAN Adapter channel 15. Radar Wind modes are defined as :The wind as measured by a wind meter is known as apparent wind.
  • Page 85 3. SETTING AND ADJUSTMENT ROT gyro No ROT Gyro connected: The system calculates from movement of Gyro heading. ROT gyro value is received from Dolog 23 dual-axis log. ROT gyro value is received from gyro connected as Gyro1. 3-39...
  • Page 86 3. SETTING AND ADJUSTMENT Settings for AIS Transponder. Engine control Settings for receiving Fuel Consumption, Propeller and Main Engine Air Pressure data from engine control system $NCDAT, $PNAV, Sindel (time out 4 min.) manufactured by NORCONTROL (used message is $NCDAT). Note that full use of this feature requires that you also activate Fuel Consumption, Propeller and Main...
  • Page 87 3. SETTING AND ADJUSTMENT Speed pilot Settings when speed pilot is not connected. Settings when speed pilot is connected. 3-41...
  • Page 88 3. SETTING AND ADJUSTMENT Storing default parameters After installing the equipment, store the default parameters of the radar as follows: 1. Connect service (for PC) keyboard. 2. Press Windows key. 3. Open Window Explorer (Start>Programs>Windows Explorer) 4. Open directory C:¥ants_system¥params¥. 5.

  • Page 89: Adjustments For Lan Adapter Ec-1010

    3. SETTING AND ADJUSTMENT 3.12 Adjustments for LAN Adapter EC-1010 Before adjusting LAN adapter and updating program The following tools are needed for programming LAN adapter: • Ordinary serial line cross-cable to make connection from COM1 port to Connector J13 of LAN Adapter (9 pins female –...
  • Page 90 3. SETTING AND ADJUSTMENT How to update programs for LAN adapter Update of the program is required, proceed as follows. 1. Open Explorer and directory C:¥ LAN Adapter, and then double click 7188xw.exe. 7188XW program will start in MS DOS window. 3-44...
  • Page 91 3. SETTING AND ADJUSTMENT 2. To remove old files from LAN adapter; type “del”, and then press the Y key. Load autoexec.bat and sercotr.exe as shown below. 3. Type “DIR”, and confirm that autoexec.bat and sercotr.exe are loaded as shown below. 4.
  • Page 92 3. SETTING AND ADJUSTMENT Parameters for LAN adapter EC-1010 Set parameters for LAN adapter as follows. Unit Type command First LAN adapter sercotr /d=2 /p=15001 /r=15000 /f=1 /n=8 /m=0 /e0=10.0.0.184 of chart processor /e1=0.0.0.0 Second LAN adapter sercotr /d=3 /p=15001 /r=15000 /f=9 /n=8 /m=0 /e0=10.0.0.184 of chart processor /e1=0.0.0.0 For example, type the command for First LAN adapter.
  • Page 93 3. SETTING AND ADJUSTMENT How to check and change IP address of LAN adapter EC-1010 You can check and change the IP address of the LAN adapter as follows: 1. Open Explorer and then double-click 7188xw.exe. 7188XW program starts in MS DOS window. Type IP and then press the ENTER key.
  • Page 94 3. SETTING AND ADJUSTMENT 2. If you want to change IP address, type setip 10.0.0.194(example for First LAN Adapter). 3-48...

  • Page 95: 3.13 Dip Switches And Jumper Wires

    3. SETTING AND ADJUSTMENT 3.13 DIP Switches and Jumper Wires LAN adapter EC-1010 J11 FURUNO LAN Adapter D46 D47 D48 D45 TX LEDs CH3 CH4 CH5 CH1 RX LEDs PWR2 PWR1 RELAY LEDs Jumper Position Function Programming TXD1 Normal operation (Default)
  • Page 96 3. SETTING AND ADJUSTMENT This page is intentionally left blank. 3-50...

  • Page 97: Installing Optional Equipment

    4. INSTALLING OPTIONAL EQUIPMENT Gyro Converter GC-10 The Gyro Converter GC-10, incorporated inside the processor unit, converts analog gyrocompass reading into digital coded bearing data for display on the radar screen. This section explains how to install the GC-10 (mainly consisting of the GYRO CONVERTER board) and set it up according to gyrocompass connected.
  • Page 98 4. INSTALLING OPTIONAL EQUIPMENT 2. Fasten the GYRO CONVERTER board in the processor unit with five washer head screws and male connector 231-607/019-FUR (called J602) with two screws. Screw GYRO CONVERTER board M3X8 5 pcs 64P1106A Screw M2.6X10 2 pcs Connector (231) 231-107/026-FUR Connector (231)
  • Page 99 4. INSTALLING OPTIONAL EQUIPMENT 4. Connect the GYRO CONVERTER board and J602 with two connector assemblies 03-2089 and 03-2090. Wiring for WAGO connector Press downward. Terminal opener Connection for J602 Connection for P608 P608 From J4 From J5 WAGO connector Twist Wire Procedures...
  • Page 100 4. INSTALLING OPTIONAL EQUIPMENT 5. Confirm gyrocompass specifications and set up the DIP switches and jumper wires on the GYRO CONVERTER board according to gyrocompass connected: • Setting jumper wires and DIP switches by gyrocompass specifications: page 4-5 • Setting jumper wires and DIP switches by make and model of gyrocompass: page 4-7 •...
  • Page 101 4. INSTALLING OPTIONAL EQUIPMENT Connection of external power supply An external power supply is necessary when the repeater signal is step-by-step type and the step voltage is below 20 V or output voltage is less than 5 W. 1. Cut jumper wire JP1 on the GYRO CONVERTER board when an external power supply is used.
  • Page 102 4. INSTALLING OPTIONAL EQUIPMENT Setting method 1: DIP switch settings and gyrocompass specifications 1) Gyrocompass type 2) Frequency Gyrocompass Frequency Remarks type #1, #2, AC synchronous 50/60 Hz synchronous pulsating current #2, #3, AC synchronous 400 Hz pulsating current synchronous #4, #5, AC synchronous DC step...
  • Page 103 4. INSTALLING OPTIONAL EQUIPMENT Setting method 2: by make and model of gyrocompass a t l a t l a t l a t l ) - ( a t l a t l CMZ-700 DC step OFF Remo- 24V 180x COM(+), 3-wire(-) ) - ( a t l...
  • Page 104 4. INSTALLING OPTIONAL EQUIPMENT Location of DIP switches, jumper wires on the GYRO CONVERTER board JP5, JP4 (Supply voltage) (Stator voltage) (Rotor voltage) DIP switch 64P1106 (Gyro type) (Data output port #6) (Data output port #5) (Data output port #4) DIP switch JP6, JP7 (AD format...

  • Page 105: Junction Box

    4. INSTALLING OPTIONAL EQUIPMENT Junction Box If the length of the antenna cable is more than 100 m, the optional junction boxes are required. These boxes should be mounted at the location protected because its waterproofing is IPX3. Antenna unit Radar Processor unit RW-9600 RW-9600...
  • Page 106 4. INSTALLING OPTIONAL EQUIPMENT Cable fabrication RW-9600 approx. 450 Units: mm Shield Armor Pull out inner cables from here. Vinyl sheath 14 5 9 Shield Coaxial cable Crimp on lug for M8 DPYC-6 and TTYC-4 TTYCY-4 (Four twisted pairs) DPYC-6: approx. 130 DPYCY-6 TTYCY-4: approx.
  • Page 107 4. INSTALLING OPTIONAL EQUIPMENT Connection Insert each cable to the cable gland as follows. Cable gland Flat washer Vinyl sheath Gasket Clamping gland Cut and trim armor. Connect each cable cores to the terminal board, referring to the interconnection diagram on next page.
  • Page 108 4. INSTALLING OPTIONAL EQUIPMENT Processor unit Junction box Antenna unit Junction box 03P9342 03P9349 RW-9600 DPYCY-6 RW-9600 J613 TB801 TX-HV TX-HV N.C. N.C. RED[B] J610 DPYCY-6 ORG[B] ORG[B] 24V_PLUS 24V_PLUS YEL[B] YEL[B] 24V_MINUS 24V_MINUS DPYCY-6 BLU[B] MOTOR(+) BLU[B] MOTOR(+) GLY[B] MOTOR(+) GLY[B] MOTOR(+)

  • Page 109: B Adapter

    4. INSTALLING OPTIONAL EQUIPMENT B Adapter Cables fabrication for the cables connected to the B adapter Use the following JIS (Japanese Industrial Standards) cables or equivalent. When using the TTYCS-4 cable, connect the appropriate cable to it to pass the cable entrance of the adapter.
  • Page 110 4. INSTALLING OPTIONAL EQUIPMENT No.1 LAN adapter CH4 or No.2 LAN adapter CH13 B Adapter (1) 4-14...
  • Page 111 4. INSTALLING OPTIONAL EQUIPMENT Need isolator if connect any analog voltage or current. 4-15...
  • Page 112 4. INSTALLING OPTIONAL EQUIPMENT Connectors on B-Adapter 4-16...
  • Page 113 4. INSTALLING OPTIONAL EQUIPMENT Interface Status output channels in general Channel State RESERVED FOR FUTURE USE ROUTE MONITOR: OUTSIDE CHANNEL LIMITS ROUTE MONITOR: WAYPOINT APPROACH ECHO: DEPTH BELOW LIMIT NOT USED NAVIGATION SENSOR ALARM OPERATOR FITNESS ANY radar ALARM Analog interface Note: Analog interface is not used in this system.
  • Page 114 4. INSTALLING OPTIONAL EQUIPMENT This page is intentionally left blank. 4-18...

  • Page 115: Input/Output Data

    5. INPUT/OUTPUT DATA Radar Processor Unit Input and output data are shown in the table below. Input Data Specifications Contents Remarks Heading signal synchro or step GC-10 required AD-10 and IEC 61162 are AD-10 format External AD-100 switched by menu IEC 61162-2* setting.

  • Page 116: Chart Processor Unit

    5. INPUT/OUTPUT DATA Chart Processor Unit The main method for transferring data between a sensor and the Chart Processor Unit is IEC 61162-1 Ed.1 or IEC 61162-1 Ed.2 Standard serial communication link. In the standard configuration, the system has one serial communication channel interface, LAN adapter type EC-1010, to communicate with up to eight external devices in serial format.
  • Page 117 5. INPUT/OUTPUT DATA AIS transponder equipment • One serial input interface (IEC 61993-2 Ed.1 message !XXVDM, message types 1, 2, 3, 4, 5, 6, 9, 12, 14, 18, 19, 21 and 24, min 1 message per 10 seconds) • Notes: •...
  • Page 118 5. INPUT/OUTPUT DATA This page is intentionally left blank.
  • Page 137 May 17'07 R.Esumi...
  • Page 140 D-10...
  • Page 141 Ｄ-11...
  • Page 142 Ｄ-12...
  • Page 143 D-13...
  • Page 144 D-14...
  • Page 145 D-15...
  • Page 146 D-16...
  • Page 147 D-17...
  • Page 148 D-18...
  • Page 149 D-19...
  • Page 150 D-20...
  • Page 151 D-21...
  • Page 152 D-22 Mar.28'07 R.Esumi...
  • Page 153 D-23 Mar.28'07 R.Esumi...
  • Page 154 D-24...

  • Page 155: Interconnection Diagrams

    空中線部 パフォーマンスモニター ANTENNA UNIT PERFORMANCE MONITOR PM-31 RSB-096/097 RW-4747 IV-3.5sq. 保護ｱｰｽ NOT USED RS-232C レーダー制御部 RADAR PROCESSOR UNIT RPU-016 PE *1 *5 XH10P-DS9P,2m IV-8sq. 100-115/ DPYC-2.5 200-230VAC 1φ,50-60Hz トランス RJ45 LAN1 DPYC-1.5 MOD-Z072,2m 440VAC チャート制御部 TRANSFORMER 1φ,50-60Hz CHART PROCESSOR UNIT RU-1803 EC-1000C IV-8sq.
  • Page 156 空中線部 パフォーマンスモニター ANTENNA UNIT PERFORMANCE MONITOR PM-31 RSB-096/097 RW-4747 IV-3.5sq. 保護ｱｰｽ NOT USED RS-232C レーダー制御部 RADAR PROCESSOR UNIT RPU-016 XH10P-DS9P,2m 100-115/ DPYC-2.5 IV-8sq. 200-230VAC 1φ,50-60Hz RJ45 LAN1 トランス MOD-Z072,2m チャート制御部 DPYC-1.5 TRANSFORMER 440VAC CHART PROCESSOR UNIT RU-1803 1φ,50-60Hz EC-1000C IV-8sq. POWER RJ45 STP CABLE(CAT5)
  • Page 157 スイッチングハブ SWITCHING HUB HUB-100 LANアダプタ LAN ADAPTER EC-1010(No.1) LANアダプタ LAN ADAPTER EC-1010(No.2) CONVERTER CONVERTER RJ45 RJ45 RX1+ RX3+ RX5+ RX7+ RX1+ RX3+ RX5+ RX7+ RX1- RX3- RX5- RX7- RX1- RX3- RX5- RX7- TX1+ TX3+ TX5+ RL2NC TX1+ TX3+ TX5+ RL2NC TX1- TX3- TX5-...

This manual is also suitable for:

Fcr-2117Fcr-2817Fcr-2127-bbFcr-2827Fcr-2117-bb

Table of Contents
