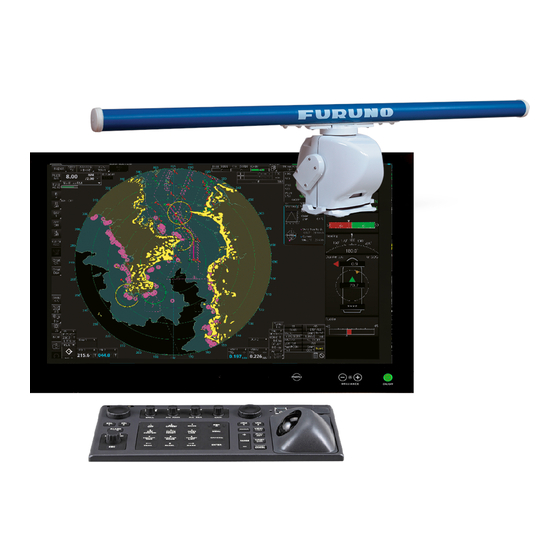

Furuno FAR-3210 Operator's Manual

Furuno FAR-3210 Operator's Manual

Chart radar
Hide thumbs Also See for FAR-3210:

Advertisement

CHART RADAR
Model
English

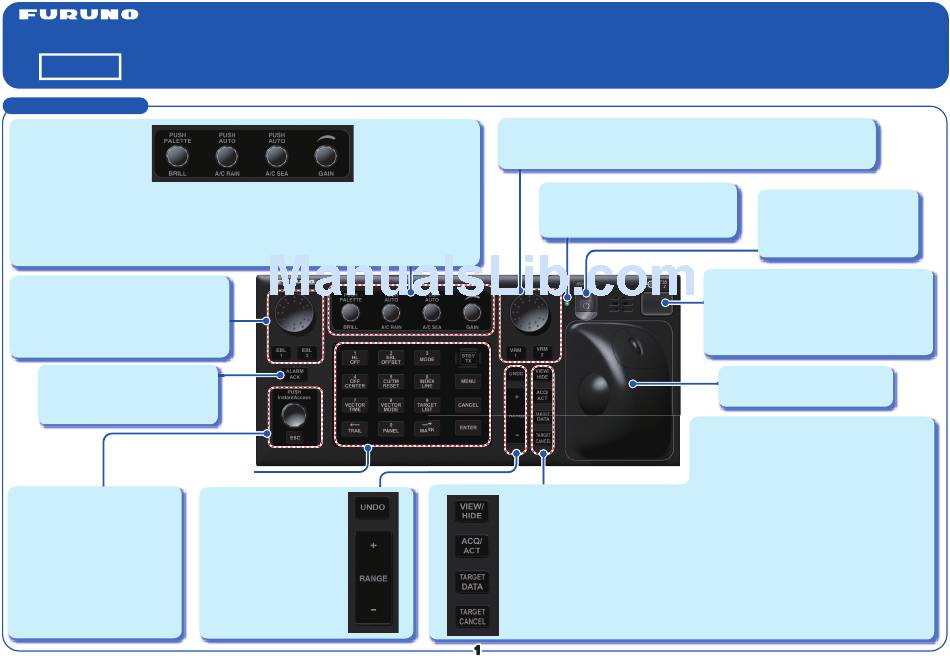

Radar Controls
BRILL
Rotate: Adjusts the
brilliance of the monitor.
Push: Selects a color
palette.
A/C RAIN
Rotate: Suppresses rain clutter.
Push: Toggles between manual
and automatic rain clutter
adjustment.
Rotary control for EBL
Adjusts the active EBL.
EBL1, EBL2
Activates or deactivates the respective EBL.
ALARM ACK
Acknowledges alerts; silences the
audio alarm.
See the next page.
InstantAccess knob
Rotate: Selects the buttons on the
InstantAccess bar
TM
.
Push: Activates functions of the
buttons on the InstantAccess bar
TM
.
ESC
Goes back one step in current
operating sequence on the
InstantAccess bar
TM
.
(Product Name: MARINE RADAR)
FAR-3210/3220/3230S/3230S-SSD/3310/3320/3330S/
3330S-SSD/3320W/3330SW/3210-BB/3220-BB/
3230S-BB/3230S-SSD-BB/3220W-BB/3230SW-BB
GAIN
Adjusts the
sensitivity of the
radar receiver.
A/C SEA
Rotate: Suppresses sea clutter.
Push: Toggles between manual
and automatic sea clutter
adjustment.
UNDO
Undoes edit or text input
when creating a radar
map, route, user chart.
RANGE
Selects radar range (radar
and chart radar modes),
chart scale (chart mode).
Operator's Guide
Rotary control for VRM
VRM1, VRM2
Activates or deactivates the respective VRM.
Status LED
The color and state of the LED change
according to system or alert status.
VIEW/HIDE
Radar mode, chart radar mode:
Shows or hides AZ box, Drop mark
boxes, Mark box, PI line box, Trial
box.
Chart mode: Shows or hides EBLs,
InstantAccess bar
TM
, [Overlay/NAV
Tools] box, [Route information] box,
VRMs.
1
1 1
This guide provides the basic operating
procedures for this equipment. For detailed
information, see the Operator's Manual.
The brand and product names mentioned in
this guide are trademarks, registered
trademarks or service marks of their
respective holders.
Adjusts the diameter of the active VRM.
Power switch
Turns the system on or off.
(This switch does control
monitor on/off.)
USB port (under cover)
For connection of a USB flash memory.
To use the USB port, connect the processor
unit to the USB port at the rear side of the
control unit, using the optional USB cable.
Trackball module
Operates similar to a PC mouse.
ACQ/ACT
TT: Acquires cursor-selected target, for target
tracking.
AIS: Activates cursor-selected sleeping AIS
target.
TARGET DATA
Displays the detailed data for selected TT, AIS
target, in the TT/AIS information box.
TARGET CANCEL
TT: Stops tracking cursor-selected tracked
target.
AIS: Sleeps cursor-selected activated AIS target.
Long-press to erase all displayed TT target data.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FAR-3210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Furuno FAR-3210

  • Page 1 Operator's Guide This guide provides the basic operating CHART RADAR (Product Name: MARINE RADAR) procedures for this equipment. For detailed information, see the Operator’s Manual. FAR-3210/3220/3230S/3230S-SSD/3310/3320/3330S/ Model The brand and product names mentioned in 3330S-SSD/3320W/3330SW/3210-BB/3220-BB/ this guide are trademarks, registered English...
  • Page 2 Radar Controls (con’t.) VECTOR TIME VECTOR TIME Sets the vector time (length) for TT and AIS targets. VECTOR MODE VECTOR Sets the vector mode (relative, true) for TT and AIS targets. MODE TARGET LIST TARGET Displays the TT and AIS target list. LIST HL OFF STBY/TX...
  • Page 3 Radar Display Indications Cursor position box Sensor information, datum box This box shows Shows your ship's heading, heading source, ship's speed, water tracking - Latitude and longitude of the speed, speed source, course over ground, speed over ground, course and cursor position.
  • Page 4 Radar Display Indications (con’t) EBL1 Heading line Bearing scale Measures the bearing to a target. Indicates ship's heading. The bearing scale provides an estimate of the bearing to a target. VRM1 Measures the range to a target. EBL2 VRM2 Measures the bearing to a target. Measures the range to a target.
  • Page 5 Status Bar (radar, chart radar mode) Operating mode Antenna Selects a mode: RADAR, CHART for RADAR or CONNING for RADAR Selects an antenna. Chart database Selects the chart database (IMO base, IMO Primary, IMO STBY TX Standard or IMO All). Toggles the radar between stand-by and transmit.
  • Page 6 Instant Access Bar (radar, chart radar mode) Radar mode Radar mode PULSE TUNE (other than solid state radar) MAP ON/OFF TUNE Tunes the radar receiver. PULSE TUNE Shows or hides the radar map marks on the radar display, PULSE Selects the radar in the radar mode.
  • Page 7 When you convert a sleeping target to an activated target, the Symbol Name activated target's course and speed are shown with a vector. Sleeping AIS target You can easily judge target movement by monitoring the vector. FURUNO (green) Activated AIS target Vector Click the AIS (green, thick line) target symbol.
  • Page 8 TT/AIS The TT/AIS setting box shows or hides the TT and AIS displays, and sets the CPA/TCPA alarm, the past position display, vector time and reference, etc. Click to set association criteria (with arrow). <: AIS symbol used for association target. >: TT symbol used for association target.
  • Page 9 Chart Display Layout Status bar (see page 10) CLEAR 10 Aug 2016 ECDIS ECDIS RADAR Local UTC ±0:00 InstantAccess bar (see page 11) Chart scale, presentation mode box Cursor position box Sensor information box CLEAR 121.8° ECDIS 07:19 RADAR 10.1kn Larger scale ENC available 10.1kn 0.3kn...
  • Page 10 Status Bar (chart for radar mode) cc_import_03 20.0 OTHERS Sets system in silent. 337.5 332.9 185.0 0.50 00:05:38 0.50 000.0 PLAN Selects the Voyage planning mode. 112.1 CHARTS Goes to the Chart maintenance mode. NAVI Selects the Voyage navigation mode. Operating mode Selects the operating mode: RADAR, CHART for RADAR or CONNING for RADAR.
  • Page 11 Instant Access Bar Upper section (by chart operating mode) Lower section Voyage navigation mode Chart maintenance mode NtoM MSG: SET: Opens the AUTO Load: Shows or hides chart Starts automatic installation of the Message features; sets chart chart data (CD or DVD ROM). dialog box to alerts.
  • Page 12 Routes How to create a route At last waypoint, right-click and select [Finish]. WPT5 Click a position 161.4° to mark a waypoint. 353.3NM WPT6 Plan Route PLAN -ning WPT1 WPT1 WPT4 201.5° 309.0° 2137.2NM 971.4NM Click [New]. Click [New]. WPT2 106.9°...
  • Page 13 Routes (con’t.) How to select a route to monitor To stop monitoring a route: To stop monitoring a route: 25 Apr 2016 25 Apr 2 25 Apr 2016 05 Apr 2016 05 Apr 2016 21 Mar 2016 02 Feb 2016 Route selected.
  • Page 14 User Charts How to create a user chart Plan User PLAN -ning Chart Click [New]. Click [New]. Click object to draw. How to create a line How to create a line How to create a circle How to create a circle How to create an area How to create an area (1) Click...
  • Page 15 User Charts (con’t) How to select objects to display in user chart How to link a user chart to a route 24 Apr 2016 24 Apr 2016 12 Apr 2016 Symbol DISP Plan Route selected. DISP PLAN Route -ning Click [Select]. Click [Open].
  • Page 16 Chart Operations How to control visibility of chart objects Basic Setting Control basic chart settings Chart DISP DISP Control chart objects Symbol DISP Control navigational features...
  • Page 17 Chart Operations How to set safety contours and chart alerts Chart DISP Alert Set safety contour here. Click to select chart alert type: Click icon to switch between (Alarm): Audio+visual indications vice versa. (Warning): Visual indication (Caution): No indication To turn off display of a chart object in route monitoring, remove check mark from alert (alarm, warning, caution).
  • Page 18 TT/AIS Operations How to find target info Click a target to show its information. Title bar TT Info (1/2) Title bar AIS Info (1/2) Click to switch level of detail TT No. Scroll buttons MMSI Scroll buttons AIS symbols (main) Vessel name TT symbols (main) Bearing...
  • Page 19 TT/AIS Operations (con’t) Alert Icons and Their Meanings Open the chart menu, select TT/AIS Setting and then Setting. The below menus can also Emergency, Alarm alert be displayed by clicking the radio button on the pop-up menu Active - unacknowledged alarm Flashing red triangle. Loudspeaker symbol at that appears when an item other than TT/AIS is selected on center.
  • Page 20 Pub. No. OSE-36160-C1 (1703, ETMI) FAR-3xx0 series...
