Tadiran Telecom TGW4 SERIES User Configuration Manual page 113

TGW4/8 Gateway Series for Aeonix

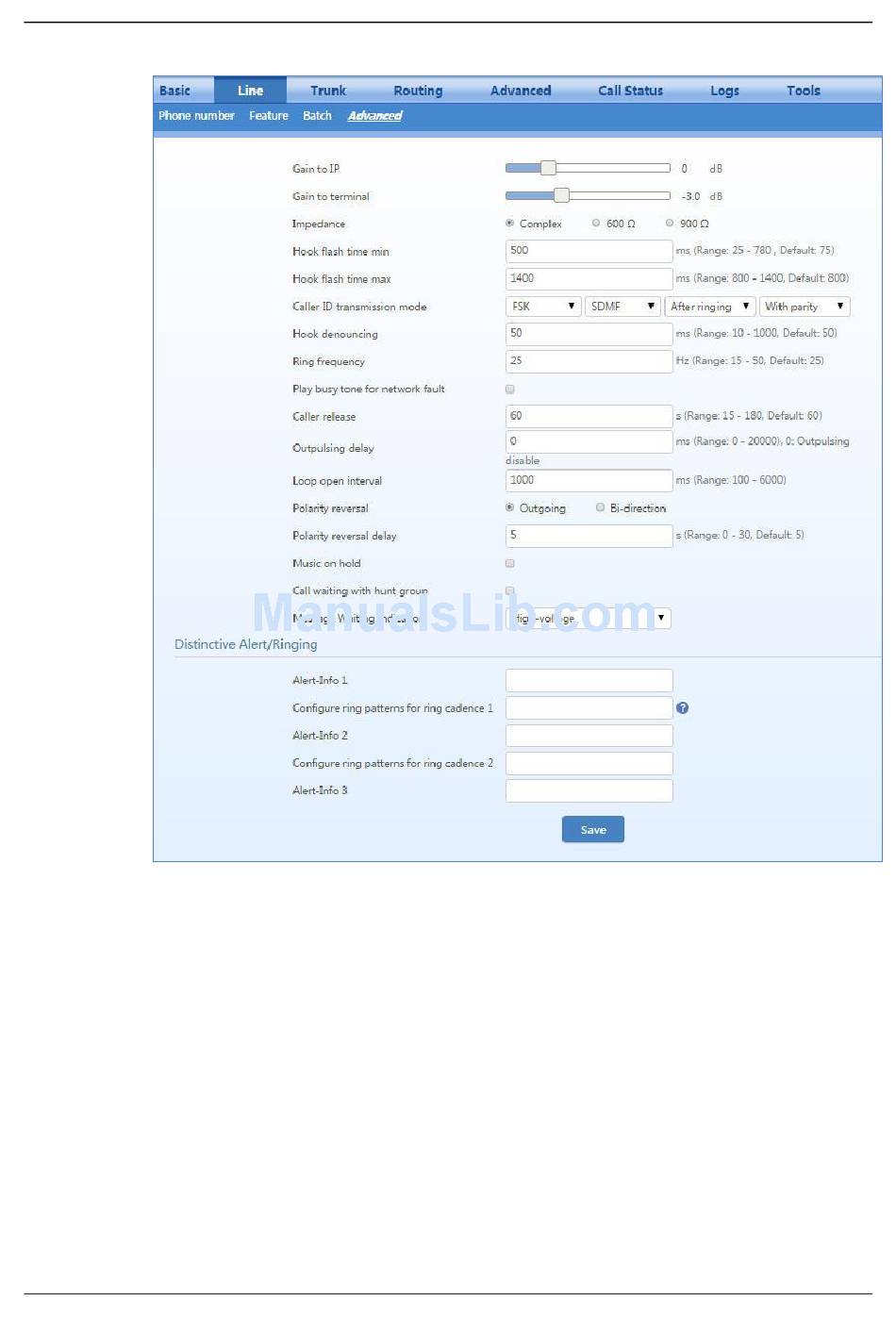

3. Click the Line > Advanced tab.
For detailed information, see Subscriber Line Characteristics on page 32.
a) For Aeonix US ALARMS:
- Adjust Gain to IP to 0 dB
- Adjust Gain to terminal to -1.5 dB
b) In the Hook flash time min box, enter the required time as per actual phone type.
NOTE: Used by the gateway to detect Hookflash events (default is 75 ms). The gateway will
ignore any flash that falls short of the shortest flash time. Generally, this value should not be
less than 75 ms.
c) For Aeonix US ALARMS:
- In the Ring frequency box, enter 20 (Hz)
d) From the Message waiting indication drop-down list, select High-voltage.
e) Click Save.
Tadiran Telecom (TTL) L.P.
High Availability Configuration Guide
101
