Tadiran Telecom TGW4 SERIES User Configuration Manual page 105

TGW4/8 Gateway Series for Aeonix

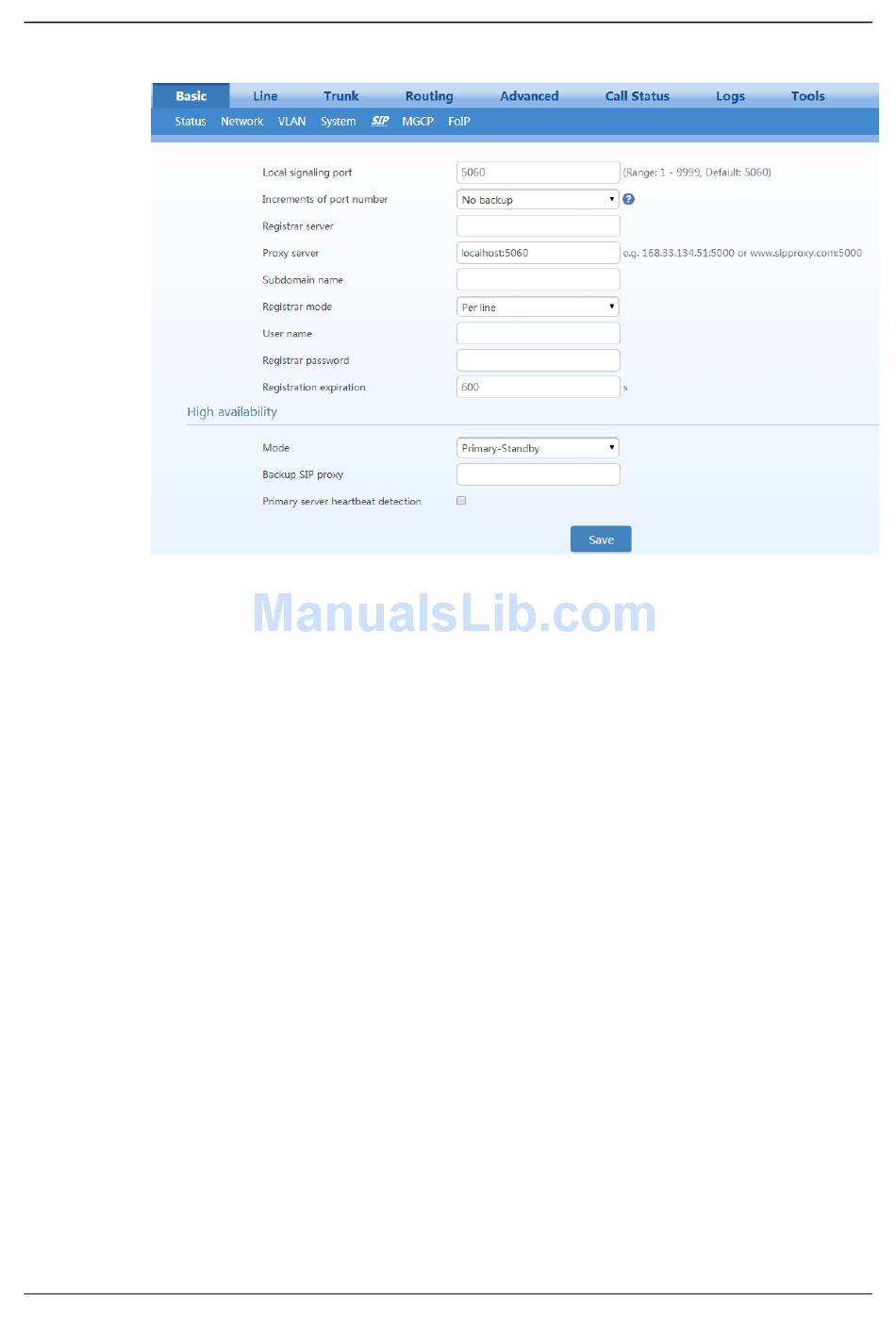

5. Click the Basic > SIP tab.
For detailed information, see SIP Configuration on page 19.
a) In the Local signaling port box, for Security reasons, it is recommended to change the
port number and not use the default value.
b) In the Registrar server box and Proxy server box, type the Aeonix server IP address.
c) From the Registrar mode drop-down list, select Per line.
d) In the User name box, enter the name. Configure the trunk user name as part of the account
for Aeonix registration (it has no default value).
Use ‎ T able 2-8 on page 20 as a worksheet to make a list of Trunk User Name/Password.
e) In the Registrar password box, enter the password. Configure the trunk password as part of
the account information, which is used for authentication by Aeonix (no default value). It is
formed with either numbers or characters, and is case-sensitive.
Use ‎ T able 2-8 on page 20 as a worksheet to make a list of Trunk User Name/Password.
f) From the High availability - Mode drop-down list, select Load balancing.
g) In the OPTIONS request period box, enter 8 (8 sec).
h) In the OPTIONS request timeout box, enter 1500 (1500ms).
i) In the REGISTER request timeout box, enter 2000 (2000ms).
j) Click Save.
Tadiran Telecom (TTL) L.P.
High Availability Configuration Guide
93
