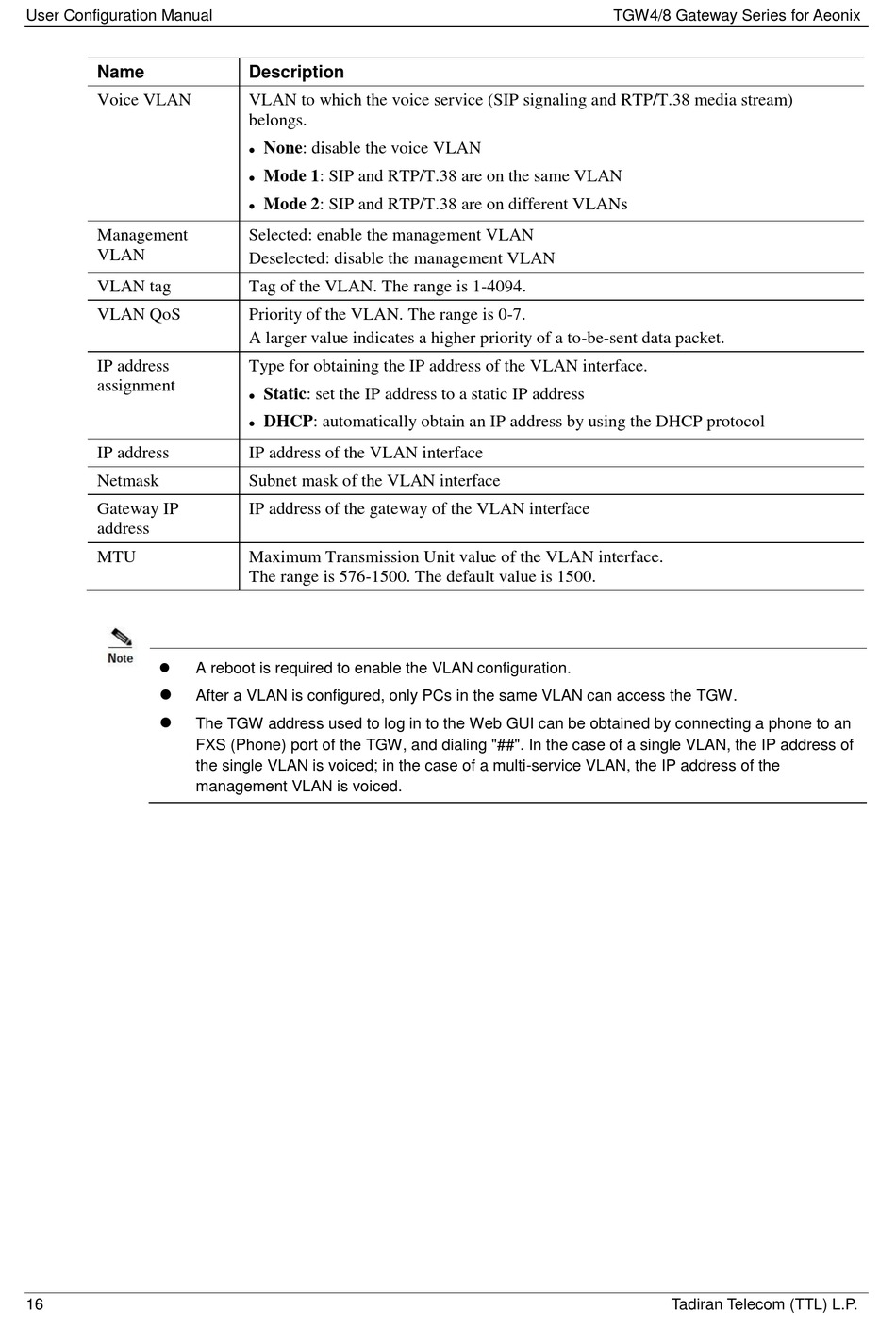

User Configuration Manual
Name
Voice VLAN
Management
VLAN
VLAN tag
VLAN QoS
IP address
assignment
IP address
Netmask
Gateway IP
address
MTU



16
Description
VLAN to which the voice service (SIP signaling and RTP/T.38 media stream)
belongs.
None: disable the voice VLAN

Mode 1: SIP and RTP/T.38 are on the same VLAN

Mode 2: SIP and RTP/T.38 are on different VLANs

Selected: enable the management VLAN
Deselected: disable the management VLAN
Tag of the VLAN. The range is 1-4094.
Priority of the VLAN. The range is 0-7.
A larger value indicates a higher priority of a to-be-sent data packet.
Type for obtaining the IP address of the VLAN interface.
Static: set the IP address to a static IP address

DHCP: automatically obtain an IP address by using the DHCP protocol

IP address of the VLAN interface
Subnet mask of the VLAN interface
IP address of the gateway of the VLAN interface
Maximum Transmission Unit value of the VLAN interface.
The range is 576-1500. The default value is 1500.
A reboot is required to enable the VLAN configuration.
After a VLAN is configured, only PCs in the same VLAN can access the TGW.
The TGW address used to log in to the Web GUI can be obtained by connecting a phone to an
FXS (Phone) port of the TGW, and dialing "##". In the case of a single VLAN, the IP address of
the single VLAN is voiced; in the case of a multi-service VLAN, the IP address of the
management VLAN is voiced.
