TGW4/8 Gateway Series for Aeonix

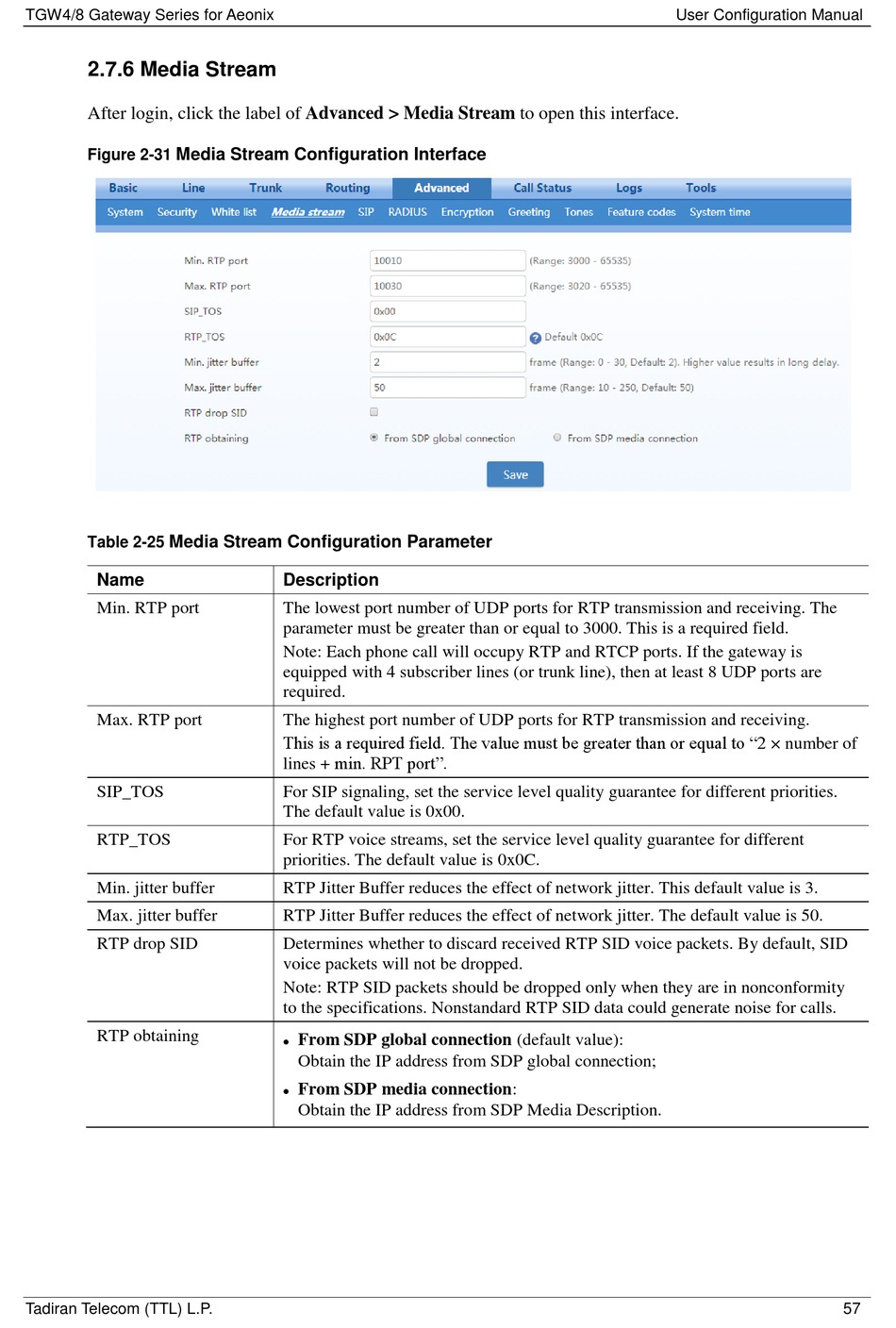

2.7.6 Media Stream

After login, click the label of Advanced > Media Stream to open this interface.
Media Stream Configuration Interface
Figure 2-31
Media Stream Configuration Parameter
Table 2-25
Name
Min. RTP port
Max. RTP port
SIP_TOS
RTP_TOS
Min. jitter buffer
Max. jitter buffer
RTP drop SID
RTP obtaining
Tadiran Telecom (TTL) L.P.
Description
The lowest port number of UDP ports for RTP transmission and receiving. The
parameter must be greater than or equal to 3000. This is a required field.
Note: Each phone call will occupy RTP and RTCP ports. If the gateway is
equipped with 4 subscriber lines (or trunk line), then at least 8 UDP ports are
required.
The highest port number of UDP ports for RTP transmission and receiving.
This is a required field. The value must be greater than or equal to "2 × number of
lines + min. RPT port".
For SIP signaling, set the service level quality guarantee for different priorities.
The default value is 0x00.
For RTP voice streams, set the service level quality guarantee for different
priorities. The default value is 0x0C.
RTP Jitter Buffer reduces the effect of network jitter. This default value is 3.
RTP Jitter Buffer reduces the effect of network jitter. The default value is 50.
Determines whether to discard received RTP SID voice packets. By default, SID
voice packets will not be dropped.
Note: RTP SID packets should be dropped only when they are in nonconformity
to the specifications. Nonstandard RTP SID data could generate noise for calls.
From SDP global connection (default value):

Obtain the IP address from SDP global connection;
From SDP media connection:

Obtain the IP address from SDP Media Description.
User Configuration Manual
57
