4. OPERATION

4.2 Adjusting notch sensor position

KPM150H (standard models), B202H (standard models)

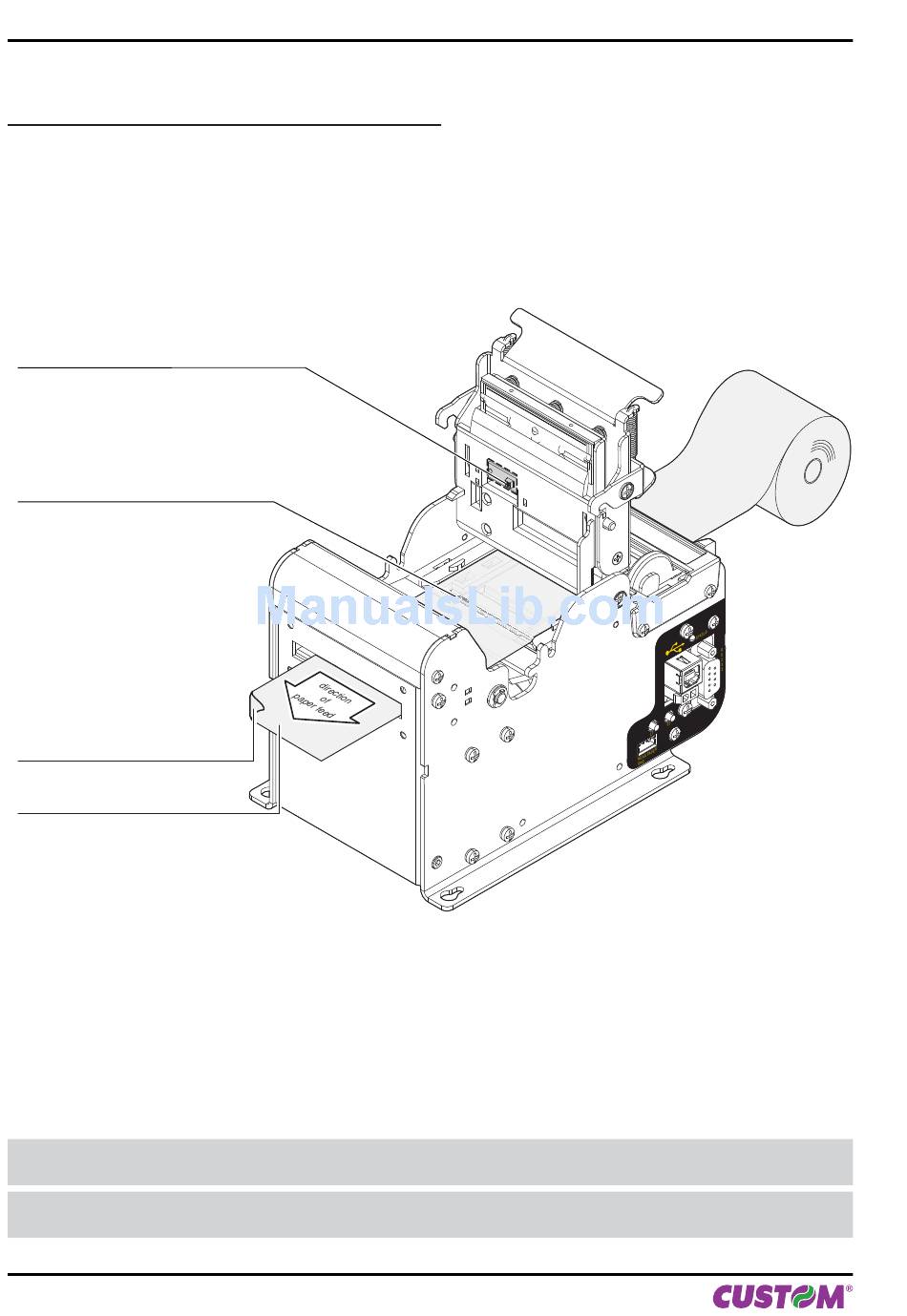

Printer is provided with two sensors for the notch detection both on the non-heat sensitive side (lower sensor) and on
the heat-sensitive side of paper (upper sensor) as shown in the following fi gure.
The "Notch/B.Mark Position" parameter of printer confi guration (see par.5.4) sets the position for the notch as follows:
• Notch positioned on the non-heat sensitive side:
• Notch positioned on the heat-sensitive side:
• Hole between tickets or gap between labels:
UPPER SENSOR FOR NOTCH
LOWER MOBILE SENSOR FOR NOTCH
NON-HEAT SENSITIVE SIDE
HEAT SENSITIVE SIDE
NOTE:
For ease of reference, for some models is represented only the printer group without the external plastic chassis.
NOTE:
For further information. about tickets with holes or labes with gap refer to Chapter 9.
40 KPM150H-AERO
User manual
"Notch/B.Mark Position" = "Bottom"
"Notch/B.Mark Position" = "Top"
"Notch/B.Mark Position" = "Transparence"
