9. ALIGNMENT

9.1 Enable alignment

Printer is provided with two mobile sensors for alignment, placed as follows:
• one mobile sensor on the lower fl at of printer
• one sensor on the upper fl at of printer.
To guarantee the alignment, it is necessary to correctly choose the sensor to use for the notch detection depending
on the type of notch and its location on the ticket.
To do this, you must enable the parameter "Notch/B.Mark Position" during the Setup procedure (see chapter 5) and
set the correct value of this parameter as described in the following table.
SENSOR
VALUE OF THE
USED
"NOTCH/B.MARK POSITION"
(see following
PARAMETER

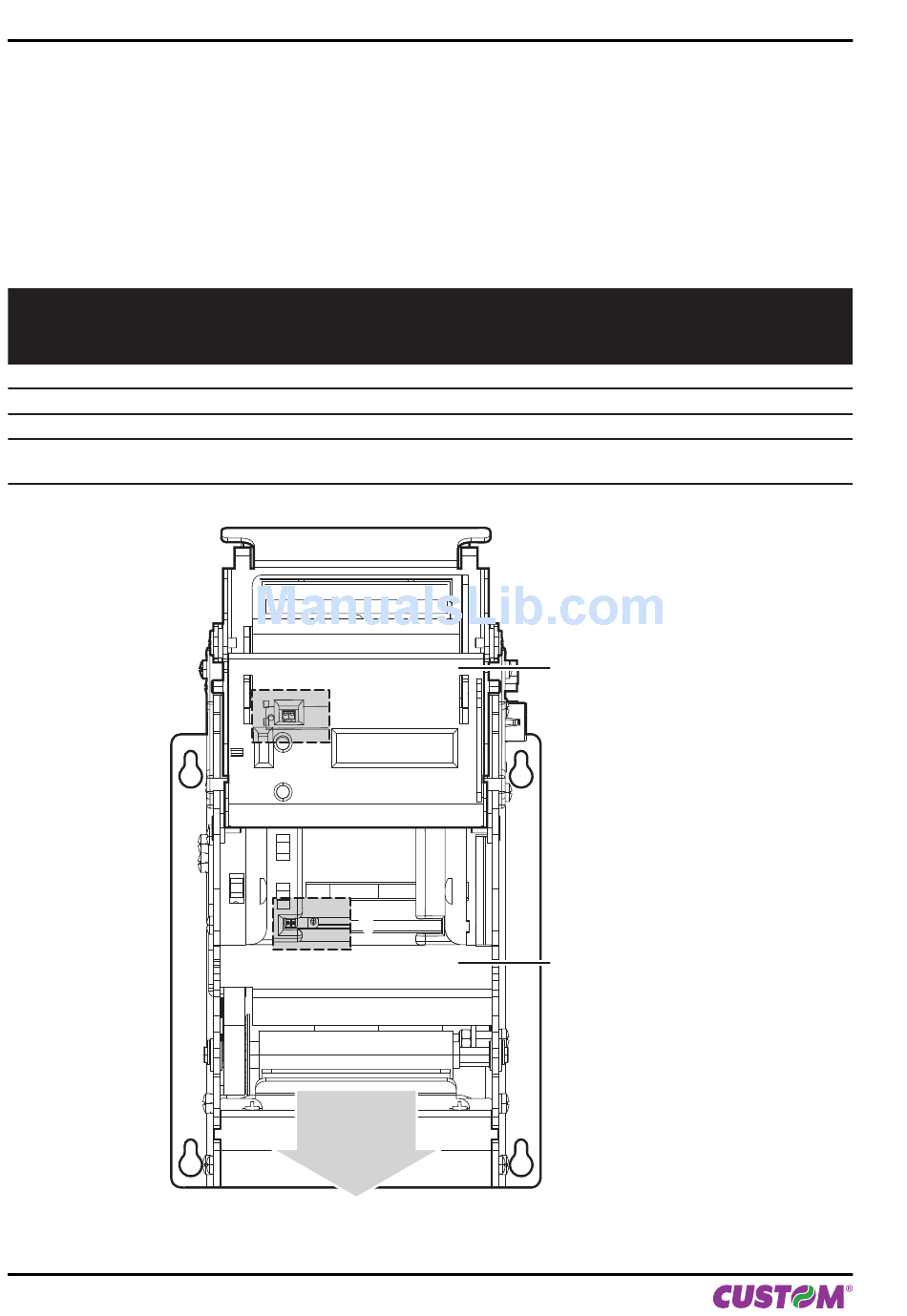

fi gure)
-
1
2
1 + 2 Transparent
100 KPM150H-AERO
USING MODE
OF SENSORS
Disabled
Bottom Refl ection
Top Refl ection
Transparence
2 2
direction
of paper
feed
User manual
NOTCH TYPE
- Alignment disabled
Black mark printed on paper
Black mark printed on paper
Hole between tickets or
gap between labels
1 1
NOTCH POSITION ON
Non-thermal side
Lateral thermal side
upper flat
lower flat
TICKET
N.A.
Lateral
