2. DESCRIPTION

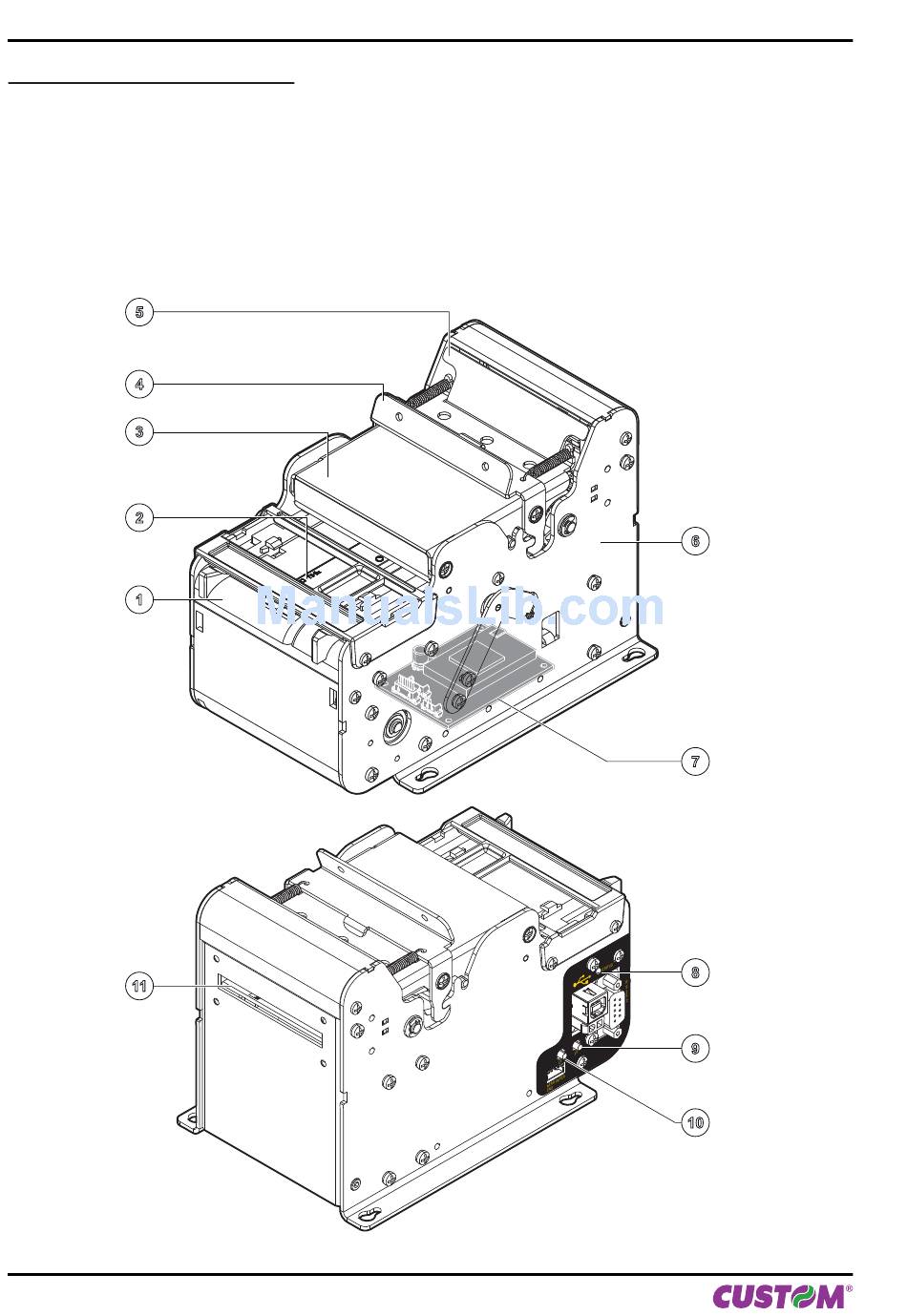

KPM150H (models with RFID reader)
1 - Paper input
2 - UHF RFID antenna
3 - Printing head group
4 - Hook of printing head group
5 - Cutter unit
6 - Printer chassis
5
4
3
2
1
11
12 KPM150H-AERO
User manual
7 - UHF RFID control board
8 - Status led
9 - FORM FEED key
10 - LINE FEED key
11 - Paper outfeed
6
7
8
9
10
