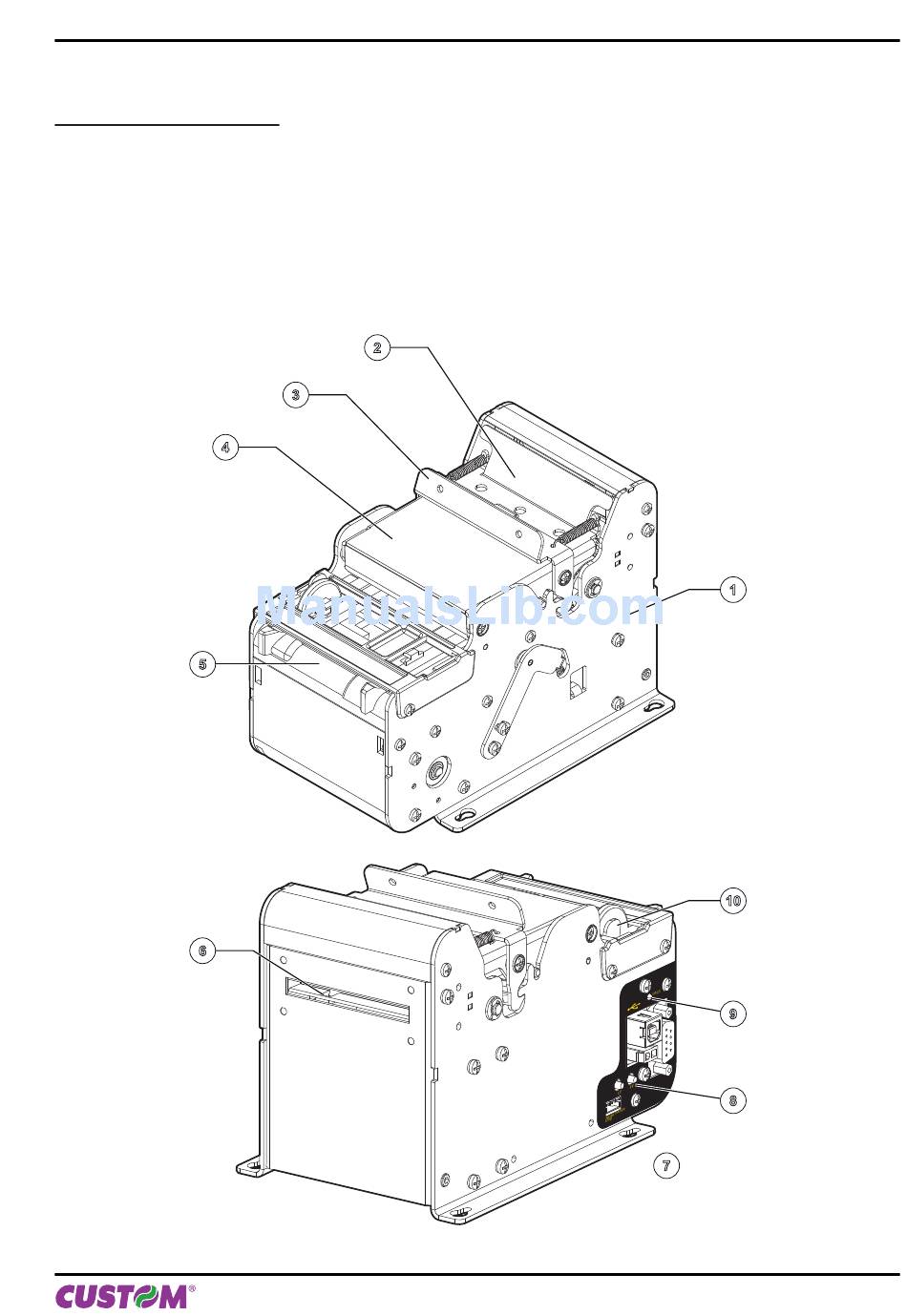

2.2 Printer components: external views

KPM150H (standard models)
1 - Printer chassis
2 - Cutter unit
3 - Hook of printing head group
4 - Printing head group
5 - Paper input
4
5
6
2
3
6 - Paper outfeed
7 - LINE FEED key
8 - FORM FEED key
9 - Status led
10 - Lever of paper mouth guide (adjustable)
