  • Page 1 Vehicle Tracker User Manual V6.3 VT310...

  • Page 2: Table Of Contents

    Contents 1. Product Overview ..................................... - 3 - 2. For Your Safety ......................................- 3 - 3. VT310 Characteristics ....................................- 4 - 4. Getting Started ......................................- 4 - 4.1 Hardware and Accessories ................................- 5 - 4.2 View ........................................ - 5 - 4.3 Functional Parts ....................................

  • Page 3: Product Overview

    With internal memory, VT310 can store GPS coordinates when there is no GPRS connection or at a specified interval requested by the user. One optional feature of VT310 is that a microphone can be linked out to be hidden somewhere inside the vehicle for listening to the cabin.

  • Page 4: Vt310 Characteristics

    Qualified Service Only qualified personnel can install or repair VT310. Water Resistance VT310 is not water resistant. Keep it dry. Install it inside the vehicle or use waterproof bag if necessary. Confidential Phone Number For safety reason, do not tell other people the mobile phone number of your VT310 without taking precautions of security settings.

  • Page 5: Hardware And Accessories

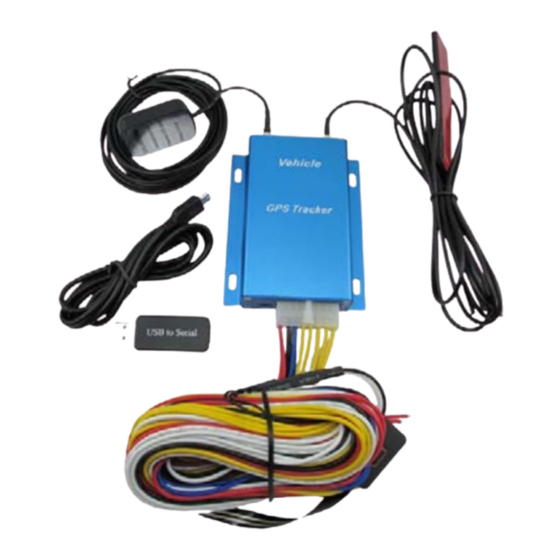

    4.1 Hardware and Accessories VT310 is supplied in a box which includes: VT310 with Battery GPS Antenna GSM Antenna Wires with SOS Button USB Cable USB to Serial 4.2 View Front View Side View Back View 4.3 Functional Parts GPS LED (Blue) One button is pressed or input is active.
  • Page 6 Flashing (1 second on and 2 seconds off) VT310 is not connected to the GSM network Power On/Off Button Press and hold for 3~5 seconds to turn on/off VT310. SOS Button SOS button is connected with the wires. Press it to send SOS alarm to the preauthorized phone number.

  • Page 7: Connecting And Installation

    4.4 Connecting and Installation Read this manual before using your VT310 and check if all parts are included in the packaging box. 4.4.1 Ensure that your VT310 has a working SIM installed. - Check that the SIM has not run out of credit (test the SIM in a phone to make sure...

  • Page 8: Time Zone

    W123456,001,999999 6. Time Zone Command: W******,032,T Description: Correct time into your local time Note: 1. Default time of the tracker is GMT 2. This correction is applied to location reports by SMS and SMS alarms. T=0, to turn off this function. T=[-32768,32767] to set time difference in minute to GMT.

  • Page 9: Track By Calling

    7.2 Track by Calling Make a missed call to the tracker and it will report its longitude and latitude by SMS with format as follows:- Latitude = 22 32 36.63N Longitude = 114 04 57.37E, Speed = 2.6854Km/h, 2008-12-24,01:50 7.3 Track by Preset Interval Command: W******,002,XXX Description: Set an interval for the tracker to continuously return its location by SMS Note:...

  • Page 10: Track By Ms01/Ms02

    Or you can use local map software on PDA or car navigation device to input the coordinates. 7.5 Track by MS01/MS02 If you have bought our GPS Tracking Software MS01 or MS02, after proper configuration, you can do tracking on MS01/MS02. Please refer to MS01/MS02 User Guide for more information.

  • Page 11: Set Ip And Port

    Example: W000000,011,CMNET,Meiligao,6688 W000000,011,CMNET 7.6.3 Set IP and Port Command: W******,012,IP,Port Description: Set IP and Port for tracker for GPRS communication. Note: 1. IP is your server’s IP or the domain name. 2. Port: [1,65534] Example: W000000,012, 220.121.7.89,8500 W000000,012,www.meiligao.net,8500 7.6.4 Set DNS Server IP (optional) Command: W******,009,DNS Server IP Description: In case the domain name you set by the last command (W******,012,IP, Port) doesn’t work, which means your server IP is not properly set.

  • Page 12: Track By Gpsgate

    F=1, only sends SMS to the authorized phone number; F=2, only calls the authorized phone number; F=3, both SMS and calling. (Note: VT310 doesn’t support two-way conversation. Calling only gives ring and reminder to the authorized phone) P=1, set an authorized number for SOS button (Input 1);...

  • Page 13: Detecting Lock Status Of Car's Door Or Trunk (Car Boot)

    9.2 Detecting Lock Status of Car’s Door or Trunk (Car Boot). Power supply Lock Controller White Input 1 or Input 2 or Input 3 lock unlock Lock Switch When the lock is opened, there will be negative triggering to Input 1 or Input 2 or Input 3, then an SMS alarm will be sent to the authorized phone number or a GPRS alarm will be sent to the server (please refer to the GPRS Command 0x9999 in <GPRS Communication Protocol>).

  • Page 14: Low Battery Alarm

    Application Example - Fuel Level Sensor Fuel level sensors supplied by us are resistance-type sensors with output resistance: 0-200Ω(ohm). For the circuit shown on the right picture, if VCC is 12V, R should be 200Ω(ohm) and if VCC is 24V then R should be 600Ω(ohm) to make the input range to AD1 or AD2 is 0-6V.

  • Page 15: Geo-Fence Alarm

    2. Only one alarm can be set in either Movement Alarm or Geo-fence Alarm. 13. Output Control 13.1 Output Control (Immediate) Command: W******,020,P,F Description: Send this command to control the Output of VT310 Note: P=1, Output1 P=2, Output2 P=3, Output3...

  • Page 16: Output Control (Conditional)

    Example: W000000,020,1,1 13.2 Output Control (Conditional) Command: W******,120,ABCDE or W******,220,ABCDE Description: Send this command to control the Output of VT310. This command is only workable when the speed is below 10km/h(command 120) or 20km/h(command 220) and meantime GPS is available. Note: ABCDE represents Out1, Out2, Out3, Out4, and Out5 respectively.

  • Page 17: Connecting With Car Alarm

    Take Output1 as an example: W000000,020,1,1 (cut engine) W000000,020,1,0 (cancel engine-cut) 13.3.2 Connecting with Car Alarm When the Output that connected to the car alarm is open, the alarm will start to work. Alarm Output 2 or Output 3 or Output 4 or Output5 14.

  • Page 18: Auto Log When No Gprs

    Description: Set time interval for logging GPS information. The information is stored within the device memory. When the memory gets full, the newest record will be overwritten on top of the oldest (FIFO - First In, First Out). In that case, only the newest information is stored. Note: 1.

  • Page 19: Password Initialization

    Description: This is to make all settings (except for the password) back to factory default. Note: Turn on the device, press the SOS button for five times continuously and the red LED will be on, and then send (within 120 seconds) this SMS to the tracker. ### is the ending character and is required in the text message.

  • Page 20: Annex 1. Sms Command List

    If you need to set different numbers for receiving SMS and phone call, you can then use W******,003,F,P,T1,T2, In this case T1 is the phone number for receiving SMS and T2 for receiving phone call. Note: VT310 doesn’t support two-way conversation. Calling only gives ring and reminder to the authorized phone Low Battery Alarm...
  • Page 21 X is the preset value of voltage. =0 , to turn off this function =1, <3.3V =2 , <3.4V =3 , <3.5V (default) =4 , <3.6V =5 , <3.7V Speeding Alarm W******,005,XX W000000,005,08 Remarks: When the tracker speeds higher than the preset value, it will send an SMS to the authorized phone number for SOS. XX is the preset value of speed and in 2 digits.
  • Page 22 For example, $GPRMC,161509.000,A,2232.5485,N,11404.6887,E,0.3,153.7,290709,,*03 C=0, turn off the function to automatically hang up an incoming call. C=1, turn on the function to automatically hang up an incoming call after 4 - 5 rings. D=0, turn off the function of sending an SMS when the tracker is turned on. D=1, turn on the function of sending an SMS to the authorized phone number for SOS when the tracker is turned on.
  • Page 23 Set GPRS Interval W******,014,XXXXX W000000,014,00060 Remarks: to set time interval for sending GPRS packets. XXXXX should be in five digits and in unit of 10 seconds. XXXXX=00000, to turn off this function; XXXXX=00001~65535, time interval for sending GPRS packet and in unit of 10 seconds. In this example, the tracker will send every 600 seconds (10 minutes).
  • Page 24 [1] In Level I The GPS module will be working for the first three minutes (i.e. 3 times of acquisition time) and then shut down for ONE minute (i.e. equivalent to acquisition time), and then work again for another three minutes…… [2] In Level II The GPS module will be working for the first two minutes (i.e.

  • Page 25: Annex 2. Troubleshooting

    Wrong password in your SMS or wrong SMS Write correct password or SMS format format The SIM in VT310 has run out of credit Replace or top up the SIM card No SIM card Insert a working SIM card. Check in phone that the SIM can send SMS message.

  • Page 26: Contacts

    Move the unit to a location with good GSM reception. Contacts If you encounter any problems when using our products, and cannot solve them by yourself, please contact our technical support team by writing an E-Mail to info@meitrack.com. We will be pleased to help you. - 26 -...
