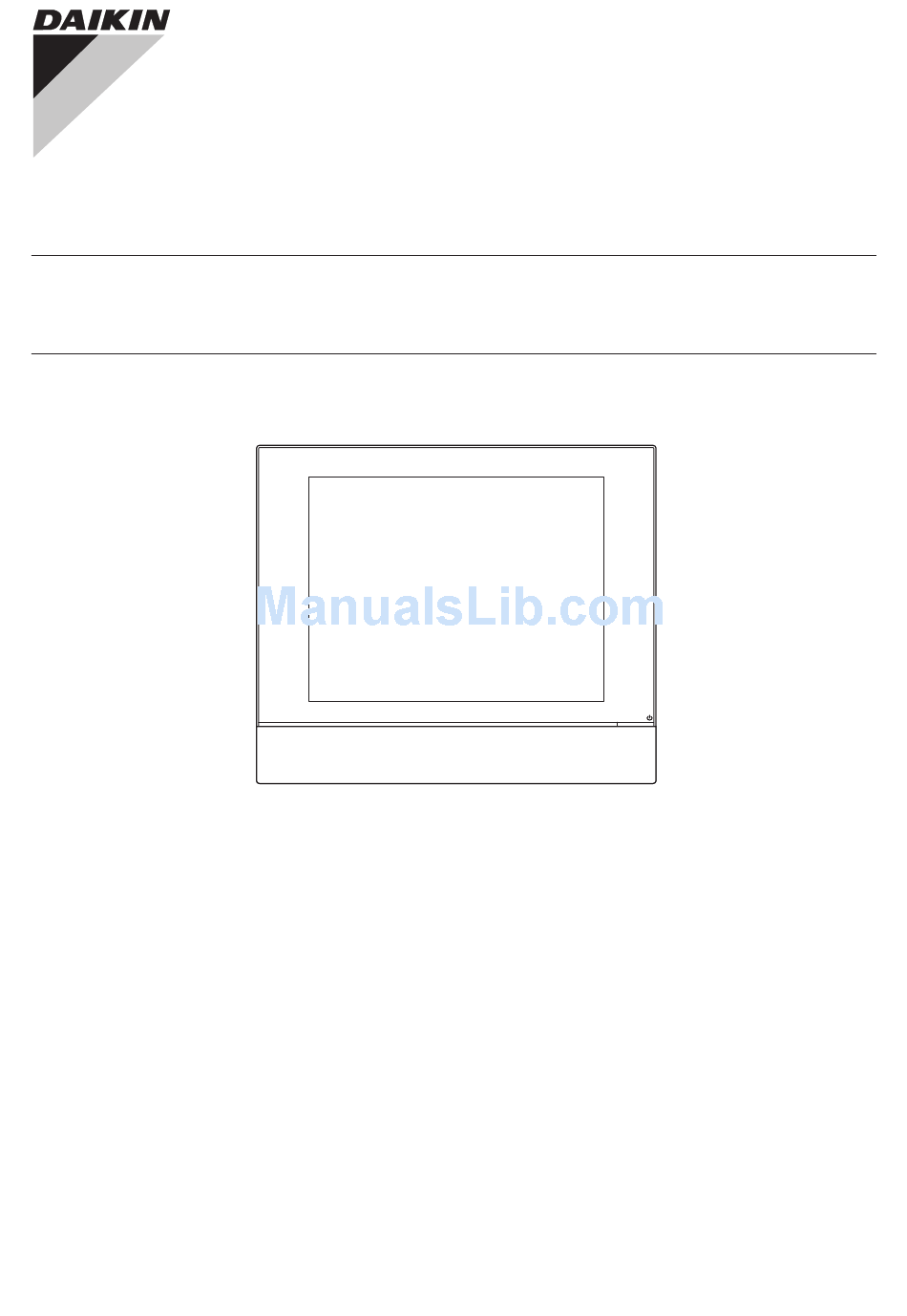

Commissioning Manual
intelligent Touch Manager
Model
DCM601A51
MONITOR
ON
SLAVE
LAN SW
CPU ALIVE
LAN LINK DⅢ MONITOR
BACKUP
DⅢ MASTER
FRONT BACK
RESET
SERVICE LAN
OFF
MASTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCM601A51 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daikin DCM601A51

Summary of Contents for Daikin DCM601A51

  • Page 1 Commissioning Manual intelligent Touch Manager Model DCM601A51 MONITOR SLAVE LAN SW CPU ALIVE LAN LINK DⅢ MONITOR BACKUP DⅢ MASTER FRONT BACK RESET SERVICE LAN MASTER...

  • Page 2: Table Of Contents

    (When carrying out pre-engineering using the current setting) ....52 • Scenario 3: Restore with existing property’s backup data ..........54 • Scenario 4: Implementation of new functions due to existing property’s upgrade ..55 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 3 • Setting up the IP address (Windows Vista Business) ........... 97 • Setting up the IP address (Windows 7 Professional) ..........101 • Precautions when using Internet Explorer on Windows Vista and Windows 7.... 104 • Network Connection Check ..................105 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 4 • Service Settings Tab (Menu List Screen) ..............115 • Controller Access Setup ..................... 116 Appendix ..................120 8. Useful Information ..................120 8-1 Troubleshooting ......................120 9. Hardware Specifications ................122 9-1 iTM Hardware Specification .................... 122 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 5: System Overview

    Port 1~4: Power meter pulse input Emergency Stop signal input Port 1: Input signal (contact) such as Port 2~4: Power meter pulse input power outage signal Input signal (contact) such as power outage signal Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 6: Engineering

    5-1 Activation Enable dealer options. Entering the Activation key * When necessary 5-2 Dealer Option Setup Register management points and Layout View. 4-1 Mgmt. Point Data Regist (Load from CSV or register manually) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 7 Set up “Main” and “Sub”. 4-3 DIII-NET Engineering Install pre-engineering data and Layout View data. 4-10 Installation Activate optional maker functions. 5-1 Activation Enable dealer options. Entering the Activation key * When necessary 5-2 Dealer Option Setup Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 8: Logging Into Service Mode

    1. Display the Menu List screen. 2. Touch the four corners of the screen in the indicated order. The Password Input dialog appears. 3. Enter the service password (daikin) and touch the OK button to log into the SE Mode. Commissioning Manual EM11A021...
  • Page 9 Furthermore, if the screen is locked, entering the service password instead of the administrator password after carrying out the special operation indicated below, allows you to unlock the screen and log into the SE Mode. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 10: Names And Functions

    (See page 12.) Allows you to configure the network IP address and other Network (See page 87.) related settings Web Remote Management Allows you to configure the Web Remote Management user (See page 90.) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 11: Service Settings Tab

    CSV format. Activation Enables optional maker functions based on entered Activation keys. NOTE Optional maker functions refer to the Power Proportional Distribution and Energy Navigator functions. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 12 You can also make it run at a set time by using the Schedule function. (13) Energy Navigator (Optional function) Sets up the reference room temperature, month to start collecting data, and energy conversion type to be used by the Energy Navigator. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 13: System Settings Tab

    Sets up the network IP addresses as well as the Web Servers. Web Access Users Sets up Web users for Web Remote Management. Backup Allows you to export the system file and setup data. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 14: Basic Functions

    Load the management equipment in the site point data created using the pre-engineering tool to iTM Start up iTM and auto recognize A/C See 4-7 Pre-engineering Create management point data using the pre-engineering tool Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 15: Registering A Management Point With The Itm Unit

    Point Data Register screen (see page 10). is the list of registered management points. Touch the A/C Auto Register button to display the Auto Search Result screen. is the search results list. The Detailed Type and Port/Address are displayed. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 16 Remove button. The management point moves to and is deleted from the list of candidates that can be registered. Touching the Rem. ALL button deletes all of the candidates that can be registered. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 17 2. Manually registering management points Register one by one the management points that are not registered by automatic recognition. Touch the Add button to display the Management Point Types screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 18 Tabs and items displayed on the Mng. Point Attributes screen vary depending on the selected management point type. Set up by switching the displayed tabs as necessary. For details of each tab, see page 21 onwards. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 19 NOTE Modify as necessary since the copy has exactly the same data. Registering as is will cause duplicated address error and the like. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 20 [Management point name] ([Management point ID]) <-> [Management point name] ([Management point ID]) numbers ===== Internal Pi address duplication ===== Duplicate object IDs BACnet Duplicated object IDs [Management point name] ([Management point ID]) <-> [Management point name] ([Management point ID]) ===== Duplicate object IDs Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 21 When finished, touch the OK button (14). A settings data check is carried out and the Information check screen displayed if errors are found. If no problems are found, the dialog below appears. Touching the Yes button after confirming restarts the iTM unit. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 22: Detailed Mgmt. Point Attributes Screen And Button Descriptions

    <Indoor, Ventilator, D3Chiller, D3Di, and D3Dio> (15) (15) (16) (17) (18) (19) (16) (17) (20) (18) (19) (20) <External Dio> <Di, Pi, External Ai> (15) (16) (17) (18) (16) (17) (18) (19) (20) (19) (20) <Outdoor> <Internal Ai> Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 23 For the port number, touch the Modify button and enter it in the Numerical Input dialog that appears. For the address, select it using the combo box. Duplicated addresses cannot be registered. All addresses must be different. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 24 The number of characters you can enter is 0 to 50, irrespective of single or double byte. (20) Icon field Sets up the icon for the management point. Touch the Modify button and set the icon in the Icon Setup screen that appears. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 25 Touch the Modify button and enter the value in the Numerical Input dialog that appears. Addresses can be specified in steps of 1 and within the following ranges of values. Indoor unit: 1 to 128, Outdoor unit: 1 to 127, Internal Pi: 1 to 127 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 26 Select the check box when setting up Fresh Up and/or Auto Air Volume. (24) Fresh Up check box Select the check box to enable Fresh Up. (25) Auto Air Volume check box Select the check box to enable Auto Air Volume. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 27 Select whether to carry out error detection when the external Di or external Dio is off from Enable and Disable. (30) Error input type radio button Select the error input detection from A type and B type. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 28 Sets up the unit. Touch the Modify button and enter the value in the Text Input dialog that appears. The number of characters you can enter is 0 to 8, irrespective of single or double byte. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 29 Sets up the coefficient b. Touch the Modify button and enter the value in the Numerical Input dialog that appears. You can enter a value in the −10.000 to 10.000 range, in increments of 0.001. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 30 For the lower limit, touch the Modify button and enter it in the Numerical Input dialog that appears. For the monitoring status, select from Disable, Monitoring, and Monitor + History from the combo box. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 31 Sets up the Target Point and Target analog value for the Internal Ai. Touch the Ref.. button and select the Target Point and Target analog value to set from the Analog Point Selection screen that appears (see page 32). Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 32 *3 The former or latter value will be used depending on whether Unit Type is Other or Thermistor, respectively. (When loading a CSV file with Thermistor selected, the default value will be used regardless of the input data.) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 33 Analog Point Selection screen. (50) (49) (49) is the list of management points with analog value. (50) is the list of analog values that applicable to the Internal Ai of the selected management point. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 34: Registering Management Points Using A Csv File

    Touch the Yes button on the Confirm dialog that appears. Saving to the USB memory starts. Saving is complete when a save completion dialog appears. Touch the Close button to return to the main Mgmt. Point Data Register screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 35 File names that can be loaded are limited to “ManagementPointData.csv”. If a file is named differently, rename it in advance. Touch the Yes button on the Confirm dialog that appears to start loading. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 36 The Display Merge Results screen consists of the tabs: Add, Modify, Modification Failed, and No change. After checking the list on each tab, touch the Close button to return to the main Mgmt. Point Data Register screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 37 The format of the CSV file output from the iTM is as shown below. A CSV file output when no management point data is registered can be used as a template for new implementations since only the area used by the system and the header portion are output. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 38 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 39: Other Setting

    (−1). To enable pulse value merge, rewrite it to a valid range value. • Daikin recommends you to leave the management point ID in the CSV file in blank so that they are automatically set up at loading.

  • Page 40: Diii-Net Engineering

    (2). Enable: The Setpoint Restriction is enabled. Auto: The Setpoint Restriction is disabled when an upper central unit is present. The Setpoint Restriction is enabled when an upper central unit is not present. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 41 (4). Touching the OK button displays a confirmation dialog. Touch the Yes button to commit. The screen closes and the system restarts. NOTE If you install or uninstall another controller, please review the configuration of the Setpoint Range Limit. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 42: Time Zone

    1. Log into SE Mode from the Menu List screen and display the Service Settings tab (see page 7). Touch the Changeover Option button on the Service Settings tab to display the Changeover Option screen (see page 10). Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 43 Release button (3). The Changeover Option becomes “Selectable”. At that moment, the Changeover Option for the other indoor units in the same refrigeration system also becomes “Selectable”. Touching the Refresh button updates the contents displayed in (1). Close the screen using the Close button. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 44: History Mgmt. (Delete)

    NOTE If you specified a period to delete, you can cancel deletion halfway but the history data before cancelling will be deleted. Make sure before executing because the deleted data cannot be recovered. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 45: Pre-Engineering

    *1 Whether to write automatically accumulated data to USB memory is selectable. Pre-engineering Tool and iTM Unit Data Flow Diagram NOTE iTM integrator uses the backup data for restoring because it is not compatible with the Pre- engineering tool. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 46 Maintenance of Layout View edit × × existing property Scenario 3: Restore with existing property’s × × × backup data Scenario 4: Implementation of new functions × × due to existing property’s upgrade Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 47: Displaying The Main Screen

    Supported security software McAfee 2011 Norton 2011 Virus Buster 2011 Flash Player Version 11.1 Web browser Internet Explorer 8, 9 Firefox 10.0 Displaying the main screen 1. Start up the pre-engineering tool on the PC. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 48 2. On the login screen that appears, enter the password and click the Login button (1). The iTM Pre-engineering tool main screen appears if the correct password has been provided. Main screen Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 49: Scenario 1: Installation To New Property

    A dialog confirming whether to delete the data in the folder appears. Click the Yes button to commit and return to the iTM Pre-engineering tool main screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 50 The demo version for PC allows you to make similar settings as with the iTM unit. Make settings as required. When finished, click the button and return to the Pre-engineering tool main screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 51 If you click the Yes button to confirm the deletion, the output of data starts and the screen closes. NOTE Check that the USB memory is ready for writing data. The output will fail if it is damaged, has insufficient storage capacity, or is write-protected. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 52 “Layout Setup data only” is available when the Layout option is enabled and saves only the Layout Setup data to the USB memory. For the method of entering the Layout Setup data to the iTM unit, see the supplementary volume Layout View Creation Tool (EM11A024). Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 53: Scenario 2: Maintenance Of Existing Property

    If the property data is created using an older version, a dialog that prompts upgrade appears. Click the OK button. The absolute path is displayed in (12) when a property data is selected. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 54 The Layout Setup data backup and restore procedures are the same as when modifying the Layout View of an existing property. For the method of editing the Layout Setup data, see the supplementary volume Layout View Creation Tool (optional). Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 55: Scenario 3: Restore With Existing Property's Backup Data

    2. Move all the data in the folder copied to the USB memory to directly below the USB memory. 3. Insert the USB memory prepared with PC to the iTM integrator to restore. (For details, see 4-10 Installation) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 56: Scenario 4: Implementation Of New Functions Due To Existing Property's Upgrade

    1. From your PC, access the Network Solution page of the Distributor’s Page. Then, download and save the updater program onto the USB memory. 2. Insert the USB memory with the updater program into iTM and install. For the installation procedure, see 4-10 Installation. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 57: Backup

    All iTM functions run normally even during backup. However, operation from the iTM unit’s screen is restricted during backup. The following describes how to create a backup. 1. Display the System Settings tab of the Menu List screen (see page 12). Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 58 (XXXXXXXXXXXX: MAC address of the iTM, YYYYMMDD_HHMMSS: Year, Month, Day, Hour, Minute and Second of the backup execution time) • When backup fails because the USB memory is not inserted or due to an error, an error dialog appears. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 59: Installation

    5 times on the screen. Touch the centre of each cross in order. You can start the calibration again by touching a point far from the cross. The calibration is complete when you touched the cross 5 times. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 60 Name of the installer controller Version of the installer (10) Current hardware name (11) Current MAC address (12) Name of the installer hardware (13) Installer’s MAC address (14) Message displayed in accordance with the installation tool’s status. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 61: Contact Info

    You can enter up to 50 characters in each line, regardless of single or double byte. When finished setting up the contact information, touch the OK button to close the screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 62 3. The registered contact information can be checked on the Contact tab of the Information screen accessible from the Standard View screen. (See User’s Manual (EM11A015)) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 63: Setting Outdoor Unit

    If the specified type of outdoor unit is wrong, leakage check operation cannot be executed correctly. Be careful when setting the type. NOTE When you use the outdoor unit as Internal Pi, check that the pulse amount is correct in the detailed information screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 64: Precautions When Using Diii-Net Expander Adapter

    RX38MY1E RX16MTL RX26MYLE RX38MYL RXYQ16M7W1B RX16MTLE RX28MTL RX38MYLE RXYQ18M7W1B RXYQ20M7W1B RX16MY1 RX28MTLE RX40MTL RXYQ22M7W1B RX16MY1E RX28MY1 RX40MTLE RX16MYL RX28MY1E RX40MY1 RXYQ24M7W1B RX16MYLE RX28MYL RX40MY1E RXYQ26M7W1B RXYQ28M7W1B RX18MTL RX28MYLE RX40MYL RXYQ30M7W1B RX18MTLE RX30MTL RX40MYLE Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 65 RXYQ46PY1 RXY16MYLE RXY40MTL RHXY16MY1 RXYQ48PY1 RXY18MTL RXY40MTLE RHXY18MY1 RXYQ50PY1 RXY18MTLE RXY40MY1 RHXY20MY1 RXYQ52PY1 RXY18MY1 RXY40MY1E RHXY22MY1 RXYQ54PY1 RXY18MY1E RXY40MYL RHXY24MY1 RXYQ8PY1C RXY18MYL RXY40MYLE RHXY26MY1 RXYQ10PY1C RXY18MYLE RXY42MTL RHXY28MY1 RXYQ12PY1C RXY20MTL RXY42MTLE RHXY30MY1 RXYQ14PY1C Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 66 REYQ42M8W1B RXYQ24M8W1B RXYQ5M9W1B RHXYQ8PY1 REYQ44M8W1B RXYQ26M8W1B RXYQ8M9W1B RHXYQ10PY1 REYQ46M8W1B RXYQ28M8W1B RXYQ10M9W1B RHXYQ12PY1 REYQ48M8W1B RXYQ30M8W1B RXYQ12M9W1B RHXYQ14PY1 RXYQ18MAY1 RXYQ32M8W1B RXYQ14M9W1B RHXYQ16PY1 RXYQ20MAY1 RXYQ34M8W1B RXYQ16M9W1B RHXYQ18MAY1 RXYQ22MAY1 RXYQ36M8W1B RXYQ18M9W1B RHXYQ20MAY1 RXYQ24MAY1 RXYQ38M8W1B RXYQ20M9W1B RHXYQ22MAY1 RXYQ26MAY1 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 67 RXYQ42PRY6 RHXY30PY1 RXQ26PY16 RXYQ10PAY19 RXYQ44PRY6 RHXY32PY1 RXQ28PY16 RXYQ12PAY19 RXYQ46PRY6 RHXY34PY1 RXQ30PY16 RXYQ14PAY19 RXYQ48PRY6 RHXY36PY1 RXQ32PY16 RXYQ16PAY19 RXYQ50PRY6 RHXY38PY1 RXQ34PY16 RXYQ18PAY19 RXYQ52PRY6 RHXY40PY1 RXQ36PY16 RXYQ20PAY19 RXYQ54PRY6 RHXY42PY1 RXQ38PY16 RXYQ16PHY1 RXYQ22PAY19 RHXY44PY1 RXQ40PY16 RXYQ24PAY19 RXYQ18PHY1 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 68 CMSQ200A7W1B 1008 RHXYQ12PAY1 1075 RXYHQ18P9W1B 1142 RXYQ72PYDN 1209 CMSQ250A7W1B 1009 RHXYQ14PAY1 1076 RXYHQ20P9W1B 1143 RXYQ96PTJU 1210 RWEYQ60MTJU 1010 RHXYQ16PAY1 1077 RXYHQ22P9W1B 1144 RXYQ96PYDN 1211 RWEYQ72MTJU 1011 RHXYQ18PAY1 1078 RXYHQ24P9W1B 1145 RXYQ120PTJU 1212 RWEYQ84MTJU Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 69 RQCYQ280P 1241 RQYP680A 1252 RQCEQ744P 1220 RWEYQ144PTJU 1231 RQCYQ360P 1242 RQYP730A 1253 RQCEQ816P 1221 RWEYQ252PTJU 1232 RQCYQ460P 1243 RQYP785A 1254 RQCEQ848P 1222 RWEYQ216PTJU 1233 RQCYQ500P 1244 RQYP850A 1223 RXYMQ36MVJU 1234 RQCYQ540P 1245 RQCEQ280P Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 70: Leakage Check

    Web Remote Management Router internet intranet LAN port D3Plus adapter for iTM • By schedule DIII-NET DIII-NET • Manually Multi air conditioners for building Multi air conditioners for building Refrigerant Charging Operation Service person Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 71: Preparations

    Manually register indoor units that belong to the refrigeration system of each outdoor unit based on the installation information. 1. Log into SE Mode from the Menu List screen and display the Service Settings tab (see page 7). Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 72 The other items display the address and name of the outdoor units, as well as the number of indoor units registered with the selected outdoor unit, and registered schedules. 3. Selecting an outdoor unit and touching the Register button displays the Registration of Indoor Unit screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 73: Running Leakage Check By Schedule Control

    Running Leakage Check by Schedule Control Set up a schedule program to run Leakage Check. and touch the Schedule button 1. Select an outdoor unit from the Outdoor Unit list display the Schedule Setup screen. (10) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 74 Set to the time gap on DST start date → Not executed (The specified time does not occur) Set to the duplicated period of time on DST end date → Executed twice (The specified time occurs twice) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 75: Copying A Schedule Program

    Touch the OK button to overwrite the schedule program and close the dialog. Example: The above screens shows the operation when the schedule program set up for an outdoor unit named “od 1” is copied to an outdoor unit named “od 2”. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 76: Starting Leakage Check By Manual Operation

    • Indoor units registered in the same refrigeration system as the target outdoor unit At least one is experiencing equipment error. At least one is under maintenance. At least one is in emergency stop. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 77: Stopping Leakage Check By Manual Operation

    Check for the outdoor unit is stopped. If a communication error occurs with the target outdoor unit, the Leakage Check cannot be stopped. NOTE When the Leakage Check stops, the “Maintenance” status placed on the outdoor unit and indoor units registered in the same refrigeration system is released. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 78: Outputting The Leakage Check Results To A Csv File

    Result Outdoor 1 Outdoor 2 Outdoor 80 Check Date/ Check Date Leakage Amount Check Date Leakage Amount Check Date Leakage Amount Leakage Amount 2010/11/10 2010/11/10 2010/5/10 AM2:00 AM2:00 AM1:00 2010/5/10 2010/5/23 AM1:00 AM2:30 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 79 • Always check the following in the history before checking the leakage check results. Leakage check fails if an equipment error occurs during leakage check. Run leakage check again after clearing the cause of the error. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 80: Conflict With Other Controls

    * Refers to indoor units registered in the same refrigeration system as the target outdoor unit. In this table, Enabled/Disabled applies if at least one indoor unit among those registered is in the relevant status. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 81 * In power limit control, a command is sent to the outdoor unit via the outdoor unit external control adapter (DTA104A * * ). • Leakage check and iTM energy saving control cannot be conducted at the same time. Leakage check will be conducted before energy saving control. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 82: Failure Mode

    • Incorrect Leakage other than the target Check results indoor units are placed under maintenance Schedule Set up an None — Only the program with the smallest number will be executed setup overlapping program Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 83 • Ability to re-send is a communication communication failure is recorded time of 180 minutes Leakage Check Leakage Check error error occurred into the history has elapsed instruction to outdoor units under maintenance Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 84 Leakage Check end iTM stops after None — There is no problem since the Leakage Check results are Leakage Check already received end due to power outage Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 85: Optional Functions

    To activate an optional maker function, you must acquire the Activation key before making settings on site. Since Activation keys are available at the Daikin Distributor’s Page, you need a PC connected to the Internet. To obtain the key, the MAC address indicated on the iTM main unit and the software ID shown in the license form supplied with the main unit will be requested.
  • Page 86 4. Touch the OK button on the Activation Setup screen. A confirmation dialog with the message “Settings have been changed. Reboot now to enable new settings?” appears. Touch the Yes button and restart the iTM unit. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 87: Dealer Option Setup

    3. When finished, touch the OK button. A confirmation dialog with the message “Settings have been changed. Reboot now to enable new settings?” appears. Touch the OK button and restart the iTM unit. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 88: Operating Optional Functions

    The following describes how to set this up. 1. Touch the Network button on the System Settings tab of the Menu List screen to display the Network screen (see page 12). <IP Address Input dialog> <Name Input dialog> Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 89 Default gateway address Preferred DNS address Alternate DNS address 3. Set up the Web server port number. Touch the Web Server button to display the Web Server screen and set up the port number. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 90 Touch the OK button to save and close the screen. 4. When finished, touch the OK button. A confirmation dialog appears. 5. A restart confirmation message is displayed. Touch the Yes button to reflect the setting and restart the iTM. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 91: Web Remote Management

    Display resolution: 1024 x 768 or higher Network 100Base-TX Real transfer rate: 115 kbps or higher Supported security software McAfee 2011 Norton 2011 Virus Buster 2011 Flash Player Version 11.1 Web browser Internet Explorer 8, 9 Firefox 10.0 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 92: Connecting The Pc And Itm

    Use a 100Base-TX or higher Ethernet cross cable. Ethernet (Cross cable) ETHERNET 100BASE-TX When connecting the PC and iTM via a hub: Use a 100Base-TX or higher Ethernet straight cable. Ethernet (Straight cable) ETHERNET 100BASE-TX Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 93: Checking The Web Browser And Flash Player Versions

    In the case of Firefox, you can check by selecting [Help] → [About Mozilla Firefox]. Check that the version is 8.0.xxxx.xxxxxxx or 9.0. xxxx.xxxxxxx. (The xxx portion may be any) 2. Enter the address of the site for checking the Flash Player version: http://www.adobe.com/ software/flash/about/ Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 94: Setting Up The Ip Address (Windows Xp Professional)

    Necessary software can be downloaded from Microsoft, Adobe, and other sites for free. Setting up the IP address (Windows XP Professional) 1. Select [Start] → [Control Panel]. 2. Click [Network and Internet Connections]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 95 3. Click [Network Connections]. 4. Double click [Local Area Connection]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 96 5. Select [Properties]. 6. Select [Internet Protocol (TCP/IP)] and click [Properties]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 97 8. Check that the settings are correct and click [OK] to close the [Internet Protocol (TCP/IP) Properties] and [Local Area Connection Properties] screens. Click [Close] to close the [Local Area Connection Status] screen and finish setup. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 98: Setting Up The Ip Address (Windows Vista Business)

    Setting up the IP address (Windows Vista Business) 1. Select [Start] → [Control Panel]. 2. Click [Network and Internet]. 3. Click [Network and Sharing Center]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 99 4. Click [Manage network connections]. 5. Double click [Local Area Connection]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 100 6. Click [Properties]. 7. Select [Internet Protocol Version 4 (TCP/IPv4)] and click [Properties]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 101 9. Check that the settings are correct and click [OK] to close the [Internet Protocol Version 4 (TCP/ IPv4) Properties] and [Local Area Connection Properties] screens. Click [Close] to close the [Local Area Connection Status] screen and finish setup. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 102: Setting Up The Ip Address (Windows 7 Professional)

    Setting up the IP address (Windows 7 Professional) 1. Select [Start] → [Control Panel]. 2. Click [Network and Internet]. 3. Click [Network and Sharing Center]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 103 4. Double click [Local Area Connection]. 5. Select [Properties]. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 104 6. Select [Internet Protocol Version 4 (TCP/IPv4)] and click [Properties]. 7. To connect to the iTM via the Internet, ask its IP address and subnet mask to your network administrator and set them up. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 105: Precautions When Using Internet Explorer On Windows Vista And Windows 7

    Select the tool. Open Internet Options. Deselect [Turn on Protected Mode]. Click the OK button on the [Internet Options] window. Click the OK button on the [Warning] window. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 106: Network Connection Check

    Network Connection Check Check whether the Ethernet connection between a PC and iTM is normal. Carry out the following procedure from the PC. <Windows XP> <Windows VISTA, Windows 7> Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 107 1. From the Start menu of the PC, select “All Programs” → “Accessories” → “Command Prompt”. Alternatively, select “Run” from the Start menu of the PC, enter “cmd” in Open and click the OK button. (Windows XP) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 108 2. The command prompt starts up. Type “ping” followed by one single byte space and then the iTM IP address, and press the Enter key. (In this example, the IP address is 192.168.0.1) Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 109: Logging Into Service Mode Via Web Remote Management

    The procedure to log into Service Mode is similar as that from the unit, by clicking the four corners of the browser’s window and entering the password. For details, see “2-2 Logging into Service Mode”. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 110: Itm Integrator Explanation

    USB memory. 2. Publish the activation key of the basic software. In the same way as in step 1, access the Network Solution page and then go to the Activation key issue page. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 111 Open the front slide cover and turn the screws to remove the < BACKUP switch > front slide cover. Set the BACKUP switch to “ON”. 4. Install the software. For the procedure, see 4-10 Installation. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 112 If so, refer to the step 3 on the previous page to turn on the data backup battery. When done, touch the OK button shown with the message on the screen. Then, the Locale setup screen appears. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 113 [Decimal point / CSV separate] Select the decimal point symbol and the delimiter for CSV files. [Icon Color] Select the icon color. 2. When setup is done, touch OK. The Time Zone Settings screen appears. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 114 1. On the Time/DST Setup screen, set up the date/time and the daylight saving time schedule. (Enable or disable the daylight saving time function. If enabled, select the start time and the end time.) 2. Touch OK. The A/C Auto Register screen appears. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 115: Itm Integrator Service Settings

    Service settings described in this chapter are for the iTM integrator unit. Settings for iTM units are to be made in the respective iTM, or from the iTM integrator Standard View screen by accessing the respective iTM. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 116: Service Settings Tab (Menu List Screen)

    The setup method is the same as that for the iTM. See “4-11 Contact Info”. NOTE All settings in this Service Settings tab are for the iTM integrator unit. Please note that they are not for the iTM unit to be controlled using the iTM integrator. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 117: Controller Access Setup

    Set up the connection between the iTM to be controlled and the iTM integrator. 1. Display the Service Settings tab on the iTM integrator Menu List screen. 2. Touch the Controller Access button to display the Controller Access Setting screen. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 118 User Setup, then touch the Modify button to enter it in the Numerical Input dialog that appears. The possible value range, value at shipment, and initial value at new registration for the IP address and Web server port number are as follows. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 119 • The controller name is the name set up in the network settings on the iTM unit. See “6-1 Network” in this manual. • The controller name is automatically acquired if the communication between iTM integrator and iTM is working normally. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 120 If there is an iTM whose connection status is “Disconnected”, the following Confirm dialog appears. To exit setup leaving the iTM disconnected, touch the Yes button. To return to the Controller screen, touch the No button. 7. Open and close all the Layout Views of iTM. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 121: Appendix

    DIII-NET pin terminals are not firmly Connect DIII-NET pin terminals firmly. DIII-NET pin terminals. connected. Check the installation status of other There is a source of noise around the Separate DIII-NET from the source of units. DIII-NET. noise. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 122 The operation mode was fan mode. Check the PPD settings. subject indoor unit is operating. indoor unit. The thermostat was always OFF Check the PPD settings. though the air conditioner was operating in cool or heat mode. Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...

  • Page 123: Hardware Specifications

    290 × 243 × 50 (W × H × D) Weight 2.4 kg Time accuracy Within −195.7 to 79.1 sec/month Operating temperature range 0 - 40 °C Operating humidity range 85 % or less Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 124 ==Recommended product (Operation confirmed)== Kingston Data Traveler Generation 3 (G3) 32 GB Supported security McAfee 2011 software Norton 2011 Virus Buster 2011 Flash Player Version 11.1 Web browser Internet Explorer 8, 9 Firefox 10.0 Commissioning Manual EM11A021 DCM601A51 intelligent Touch Manager...
  • Page 125 EM11A021 (1208) HT...

Table of Contents

Save PDF
