SAVAGE CRUISER

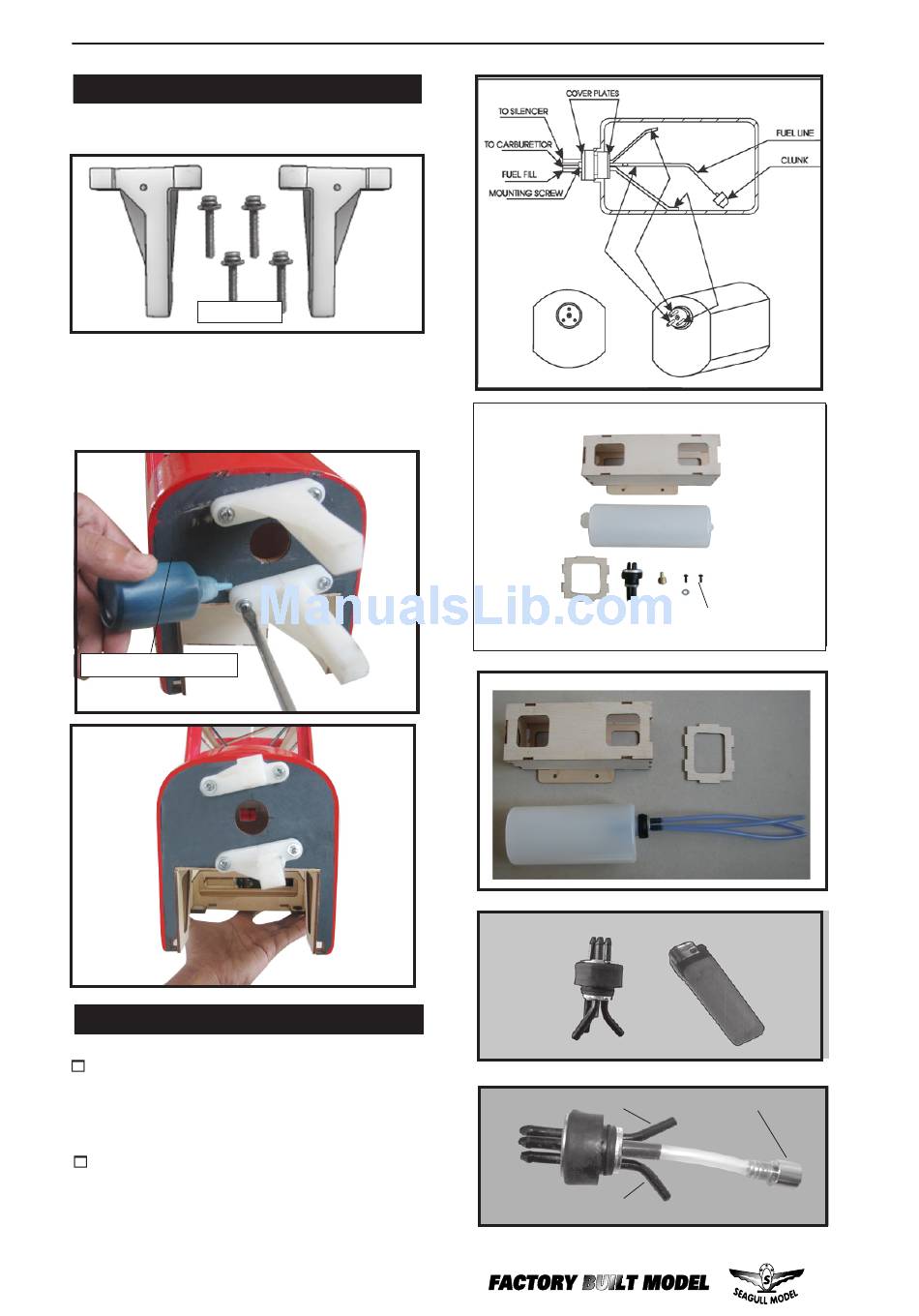

ENGINE MOUNT INSTALLATION.

1) Locate the items necessary to install the
engine mount included with your model. .
4x30mm.
2) Use four 4x30mm head bolts and four 4mm
washers to attach the engine mount rails to
the firewall. Tighten the screws . Make sure to
use threadlock on the screws to help prevent
them from vibrating loose.
Thread locker glue.

INSTALLING THE STOPPER ASSEMBLY.

1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.
8
Instruction Manual.
Vent tube.
Fuel fill tube.
3x15mm
Fuel pick up tube.
