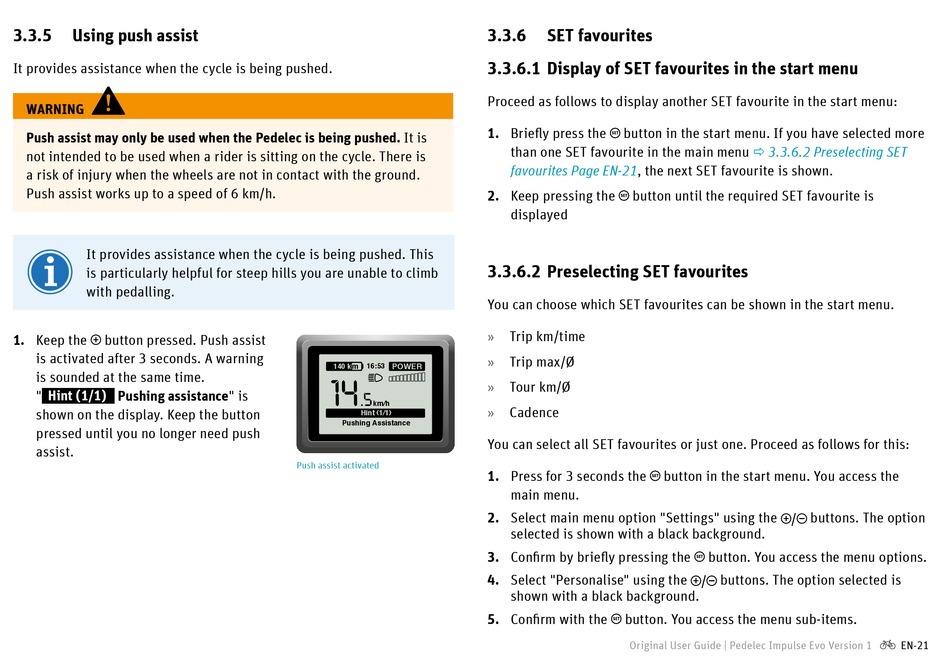

3.3.5

Using push assist

It provides assistance when the cycle is being pushed.
WARNING
Push assist may only be used when the Pedelec is being pushed. It is
not intended to be used when a rider is sitting on the cycle. There is
a risk of injury when the wheels are not in contact with the ground.
Push assist works up to a speed of 6 km/h.
It provides assistance when the cycle is being pushed. This
is particularly helpful for steep hills you are unable to climb
with pedalling.
1. Keep the
button pressed. Push assist
is activated after 3 seconds. A warning
is sounded at the same time.
Hint (1/1)
" Pushing assistance" is
shown on the display. Keep the button
pressed until you no longer need push
assist.
140 km 16:53 POWER
14
.5
km/h
Hint (1/1)
Pushing Assistance
Push assist activated
Name
A
a b c d e f g h i j k l m n o p
q r s t u v w x y z ä ö ü ß â ê
î ô û à è ì ò ù á é í ó ú
—
< - ok ABC...
3.3.6

SET favourites

3.3.6.1 Display of SET favourites in the start menu

Proceed as follows to display another SET favourite in the start menu:
1. Briefly press the button in the start menu. If you have selected more
than one SET favourite in the main menu
favourites Page EN-21, the next SET favourite is shown.
2. Keep pressing the button until the required SET favourite is
displayed

3.3.6.2 Preselecting SET favourites

You can choose which SET favourites can be shown in the start menu.
» Trip km/time
» Trip max/Ø
» Tour km/Ø
» Cadence
You can select all SET favourites or just one. Proceed as follows for this:
1. Press for 3 seconds the
button in the start menu. You access the
main menu.
2. Select main menu option "Settings" using the / buttons. The option
selected is shown with a black background.
3. Confirm by briefly pressing the
4. Select "Personalise" using the / buttons. The option selected is
shown with a black background.
5. Confirm with the button. You access the menu sub-items.
Original User Guide | Pedelec Impulse Evo Version 1
 3.3.6.2 Preselecting SET
button. You access the menu options.
EN-21
