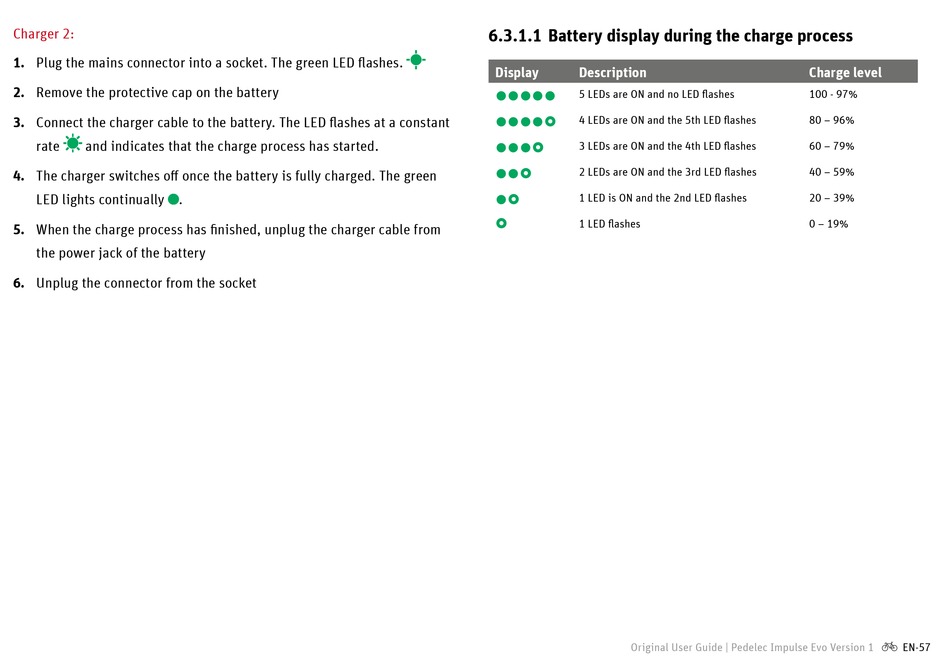

Charger 2:
1. Plug the mains connector into a socket. The green LED flashes.
2. Remove the protective cap on the battery
3. Connect the charger cable to the battery. The LED flashes at a constant
rate and indicates that the charge process has started.
4. The charger switches off once the battery is fully charged. The green
LED lights continually .
5. When the charge process has finished, unplug the charger cable from
the power jack of the battery
6. Unplug the connector from the socket
6.3.1.1 Battery display during the charge process
Display Description
 5 LEDs are ON and no LED flashes
 4 LEDs are ON and the 5th LED flashes

 3 LEDs are ON and the 4th LED flashes

 2 LEDs are ON and the 3rd LED flashes

 1 LED is ON and the 2nd LED flashes

 1 LED flashes
Original User Guide | Pedelec Impulse Evo Version 1
Charge level
100 - 97%
80 – 96%
60 – 79%
40 – 59%
20 – 39%
0 – 19%
