3.3

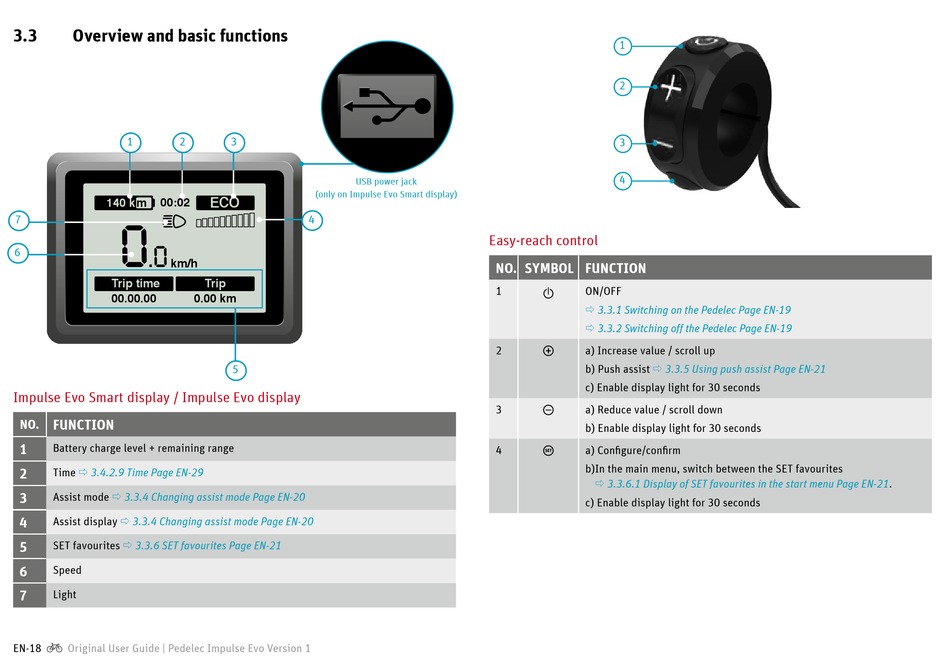

Overview and basic functions

1 2
140 km 00:02
7
0
.0
6
km/h
Trip time
00.00.00
Impulse Evo Smart display / Impulse Evo display
NO. FUNCTION
1
Battery charge level + remaining range
2
Time  3.4.2.9 Time Page EN-29
140 km 00:02
0
3
Assist mode  3.3.4 Changing assist mode Page EN-20
.0
4
Assist display  3.3.4 Changing assist mode Page EN-20
km/h
5
SET favourites  3.3.6 SET favourites Page EN-21
Trip time
6 00.00.00
Speed
7
Light
EN-18 Original User Guide | Pedelec Impulse Evo Version 1
3
USB power jack
(only on Impulse Evo Smart display)
ECO
4
Trip
0.00 km
5
POWER
Trip
0.00 km
1
2
3
4
Easy-reach control
NO. SYMBOL FUNCTION
1 ON/OFF
 3.3.1 Switching on the Pedelec Page EN-19
 3.3.2 Switching off the Pedelec Page EN-19
2 a) Increase value / scroll up
b) Push assist  3.3.5 Using push assist Page EN-21
c) Enable display light for 30 seconds
3 a) Reduce value / scroll down
b) Enable display light for 30 seconds
4 a) Configure/confirm
b) In the main menu, switch between the SET favourites
 3.3.6.1 Display of SET favourites in the start menu Page
c) Enable display light for 30 seconds
EN-21.
