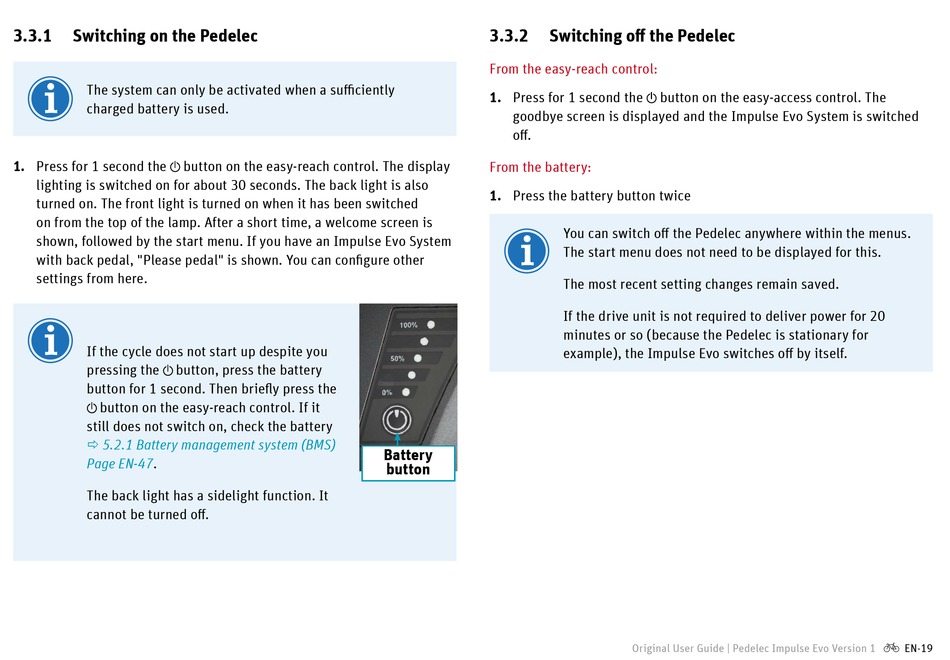

3.3.1

Switching on the Pedelec

The system can only be activated when a sufficiently
charged battery is used.
1. Press for 1 second the
button on the easy-reach control. The display
lighting is switched on for about 30 seconds. The back light is also
turned on. The front light is turned on when it has been switched
on from the top of the lamp. After a short time, a welcome screen is
shown, followed by the start menu. If you have an Impulse Evo System
with back pedal, "Please pedal" is shown. You can configure other
settings from here.
If the cycle does not start up despite you
pressing the button, press the battery
button for 1 second. Then briefly press the
button on the easy-reach control. If it
still does not switch on, check the battery
 5.2.1 Battery management system (BMS)
Page EN-47.
The back light has a sidelight function. It
cannot be turned off.
3.3.2

Switching off the Pedelec

From the easy-reach control:
1. Press for 1 second the
goodbye screen is displayed and the Impulse Evo System is switched
off.
From the battery:
1. Press the battery button twice
Battery
button
button on the easy-access control. The
You can switch off the Pedelec anywhere within the menus.
The start menu does not need to be displayed for this.
The most recent setting changes remain saved.
If the drive unit is not required to deliver power for 20
minutes or so (because the Pedelec is stationary for
example), the Impulse Evo switches off by itself.
Original User Guide | Pedelec Impulse Evo Version 1 EN-19
