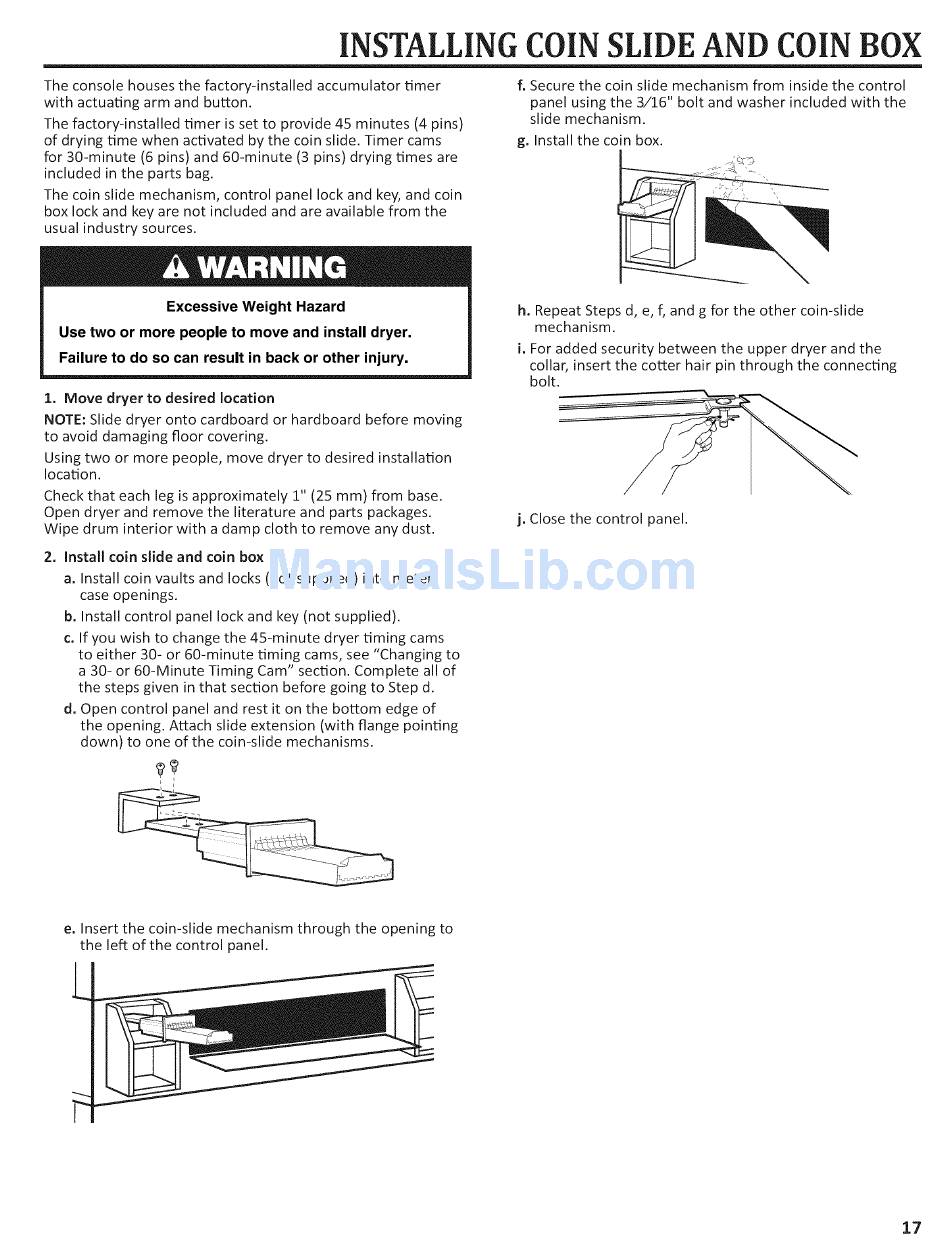

INSTALLING COIN SLIDE AND COIN BOX
The console
houses
the factory-installed
accumulator
timer
with
actuating
arm and button.
The factory-installed
timer
is set to provide
45 minutes
(4 pins)
of drying
time
when
activated
by the coin slide. Timer
cams
for 30-minute
(6 pins) and 60-minute
(3 pins) drying
times
are
included
in the parts
bag.
The coin slide mechanism,
control
panel
lock and key, and coin
box lock and key are not included
and are available
from
the
usual industry
sources.
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
I. Move dryer to desired location
NOTE: Slide dryer onto cardboard or hardboard
before moving
to avoid damaging floor covering.
Using two or more people, move dryer to desired installation
location.
Check that each leg is approximately
1" (25 mm) from base.
Open dryer and remove the literature
and parts packages.
Wipe drum interior with a damp cloth to remove any dust.
2. Install coin slide and coin box
a. Install coin vaults and locks (not supplied) into meter
case openings.
b. Install control panel loci< and key (not supplied).
c. If you wish to change the 45-minute
dryer timing cams
to either 30- or 60-minute
timing cams, see "Changing to
a 30- or 60-Minute
Timing Cam" section. Complete all of
the steps given in that section before going to Step d.
d. Open control panel and rest it on the bottom edge of
the opening. Attach slide extension (with flange pointing
down) to one of the coin-slide mechanisms.
f. Secure the coin slide mechanism from inside the control
panel using the 3/16" bolt and washer included with the
slide mechanism.
g. Install the coin box.
h. Repeat Steps d, e, f, and g for the other coin-slide
mechanism.
i. For added security between the upper dryer and the
collar, insert the cotter hair pin through the connecting
bolt.
j. Close the control panel.
e. Insert the coin-slide mechanism through the opening to
the left of the control panel.
17
