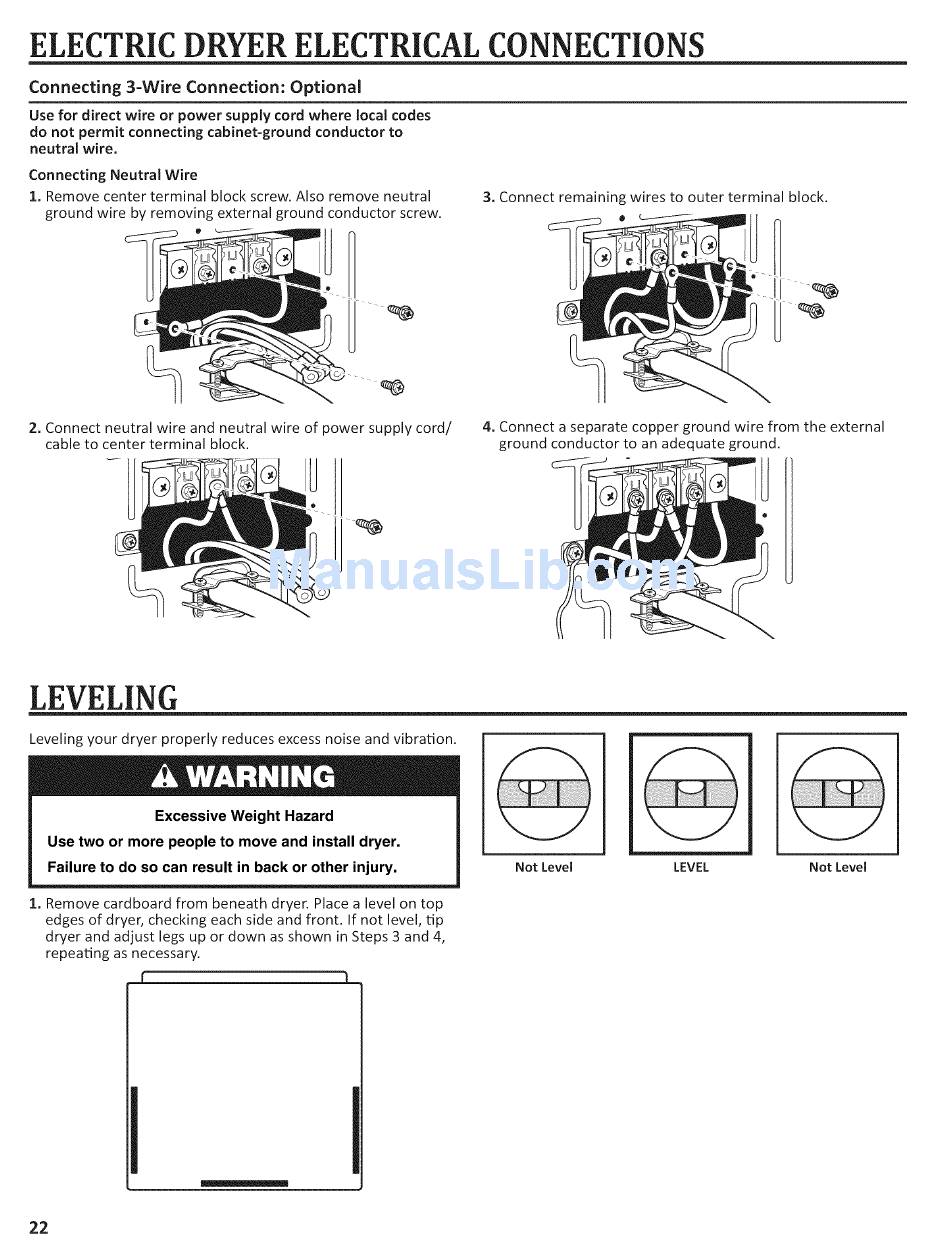

ELECTRIC DRYER ELECTRICAL CONNECTIONS
Connecting
3-Wire
Connection:
Optional
Use for direct wire or power suppty cord where local codes
do not permit connecting cabinet-ground conductor to
neutral were.
Connecting
Neutral WEre
1. Remove center terminal
block screw. Also remove neutral
3. Connect
remaining
wires
to outer
terminal
block.
ground wire by removing external ground conductor screw.
!
2. Connect neutral wire and neutral wire of power supply cord/
cable to center terminal
block.
4. Connect a separate copper ground wire from the external
ground conductor to an adequate ground.
LEVELING
Leveling your dryer properly reduces excess noise and vibration.
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
Not Level
LEVEL
Not Level
1. Remove
cardboard
from
beneath
dryer.
Place a level on top
edges of dryer, checking
each side and front.
If not level, tip
dryer
and adjust
legs up or clown
as shown
in Steps 3 and 4,
repeating
as necessary.
