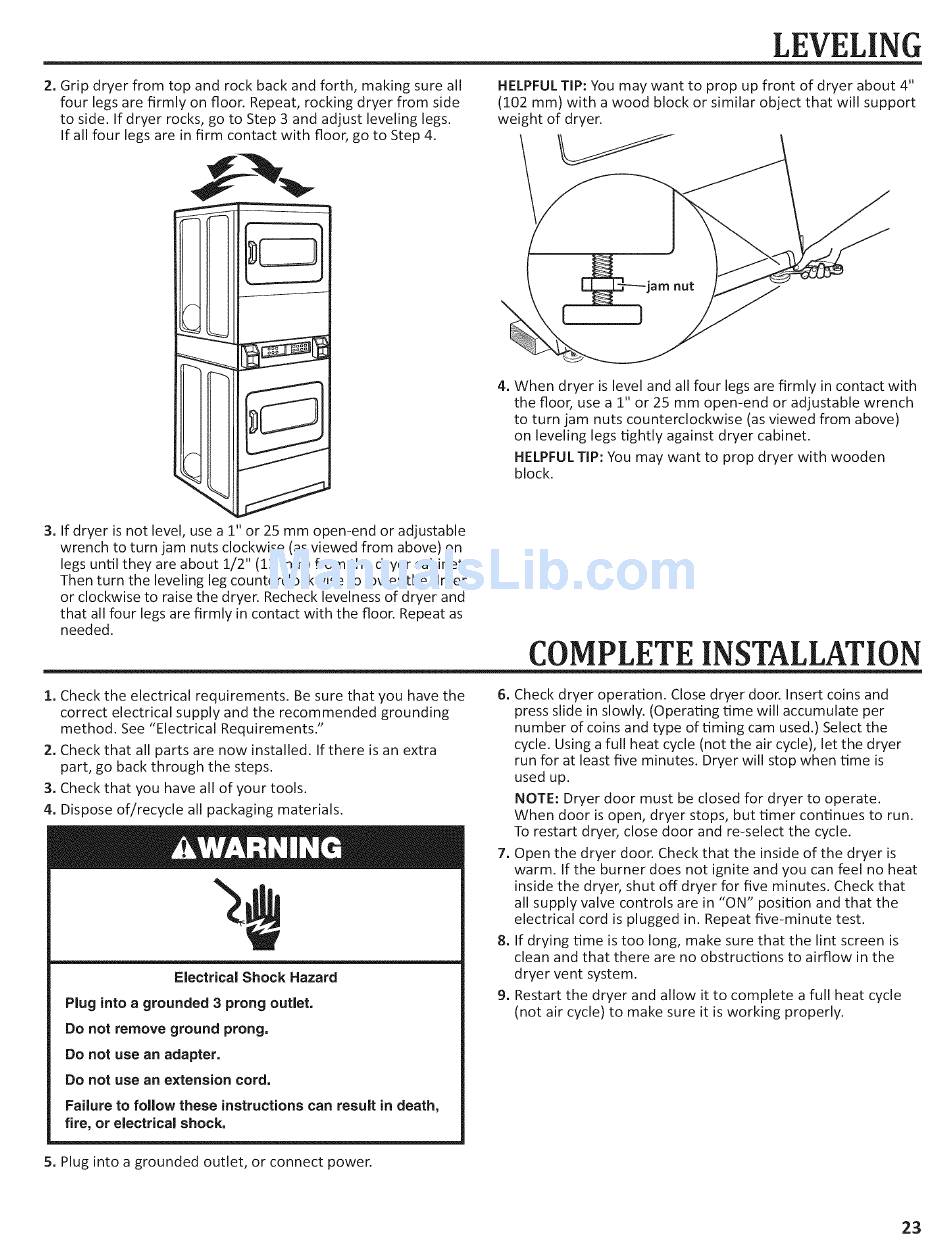

LEVELING
2. Grip dryer from top and rock back and forth, making sure all
four legs are firmly on floor. Repeat, rocking dryer from side
to side. If dryer rocks, go to Step 3 and adjust leveling legs.
If all four legs are in firm contact with floor, go to Step 4.
HELPFULTiP: You may want to prop up front of dryer about 4"
(102 mm) with a wood block or similar object that will support
weight of dryer.
4. When dryer is level and all four legs are firmly in contact with
the floor, use a 1" or 25 mm open-end or adjustable wrench
to turn jam nuts counterclockwise
(as viewed from above)
on leveling legs tightly against dryer cabinet.
HELPFUL TiP: You may want to prop dryer with wooden
block.
3. If dryer is not level, use a 1" or 25 mm open-end or adjustable
wrench to turn jam nuts clockwise (as viewed from above) on
legs until they are about 1/2" (13 mm) from the dryer cabinet.
Then turn the leveling leg counterclockwise
to lower the dryer
or clockwise to raise the dryer. Recheck levelness of dryer and
that all four legs are firmly in contact with the floor. Repeat as
needed.
COMPLETE INSTALLATION
1. Check the electrical
requirements.
Be sure that you have the
correct electrical supply and the recommended
grounding
method. See "Electrical Requirements."
2. Check that all parts are now installed. If there is an extra
part, go back through the steps.
3. Check that you have all of your tools.
4. Dispose of/recycle
all packaging materials.
Electrical
Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
6. Check dryer operation.
Close dryer door. Insert coins and
press slide in slowly. (Operating time will accumulate per
number of coins and type of timing cam used.) Select the
cycle. Using a full heat cycle (not the air cycle), let the dryer
run for at least five minutes. Dryer will stop when time is
used up.
NOTE: Dryer door must be closed for dryer to operate.
When door is open, dryer stops, but timer continues to run.
To restart dryer, close door and re-select the cycle.
7. Open the dryer door. Check that the inside of the dryer is
warm. If the burner does not ignite and you can feel no heat
inside the dryer, shut off dryer for five minutes. Check that
all supply valve controls are in "ON" position and that the
electrical cord is plugged in. Repeat five-minute
test.
8. If drying time is too long, make sure that the lint screen is
clean and that there are no obstructions
to airflow in the
dryer vent system.
9. Restart the dryer and allow it to complete a full heat cycle
(not air cycle) to make sure it is working properly.
5. Plug into a grounded outlet, or connect power.
23
