IEC OUT
AC output, unswitched, unfused. Warning! Do not draw a
current of more than 6 A total from this output
IEC IN
AC mains power input, accepts 100-240 V nominal, 50/60 Hz
FUSE
Fuse holder, two 2 AT (slow blow) fuses
Power Switch
Power on/off

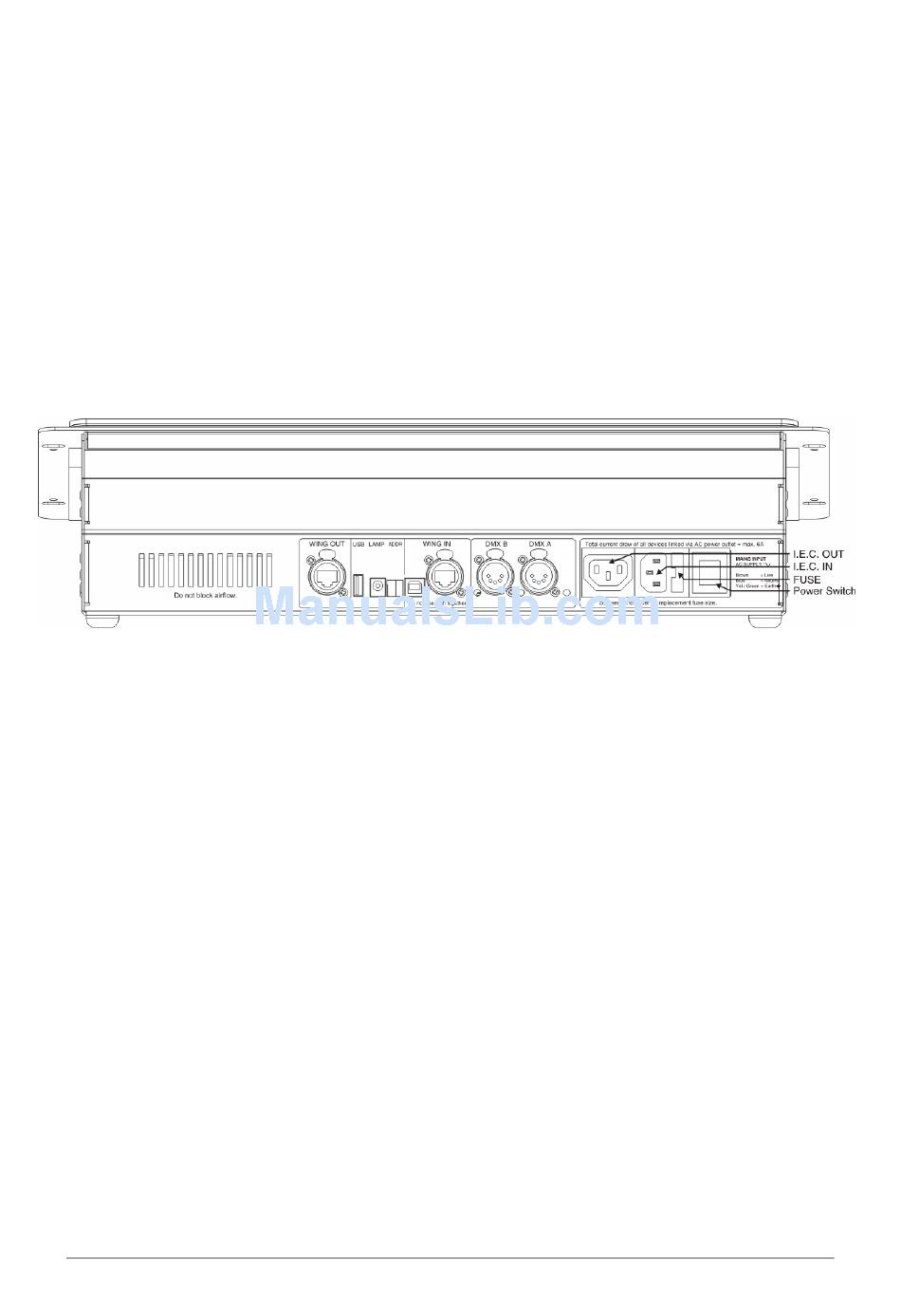

4.2 Programmer, Submaster, Playback, Button
connections panel
WING OUT
Wing output RJ45 in XLR-type housing. Important! Connect only
other non-controller modules (Programmer, Submaster,
Playback or Button Modules) to this output. Never use this
output to connect to a Maxxyz, Maxxyz Compact, Maxxyz PC
or Cerebrum module.
USB
USB device socket
LAMP
12 V PWM controlled lamp output
ADDR
Rotary dipswitch, 0 to F selectable
WING IN
Wing input (USB and RJ45 in XLR-type housing). Use only one of
these sockets at any one time to connect the module to a Maxxyz
controller, Maxxyz Compact controller, Cerebrum module or
Maxxyz PC. Important! Never use the USB and RJ45 sockets
at the same time.
DMX A, DMX B
DMX outputs (RD-ready)
IEC OUT
AC output, unswitched, unfused. Warning! Do not draw a
current of more than 6 A total from this output
IEC IN
AC mains power input, accepts 100-240 V nominal, 50/60 Hz
FUSE
Fuse holder, two 2 AT (slow blow) fuses
Power Switch
Power on/off
Maxxyz Modules User Manual
15
