3. Daisy-chaining modules

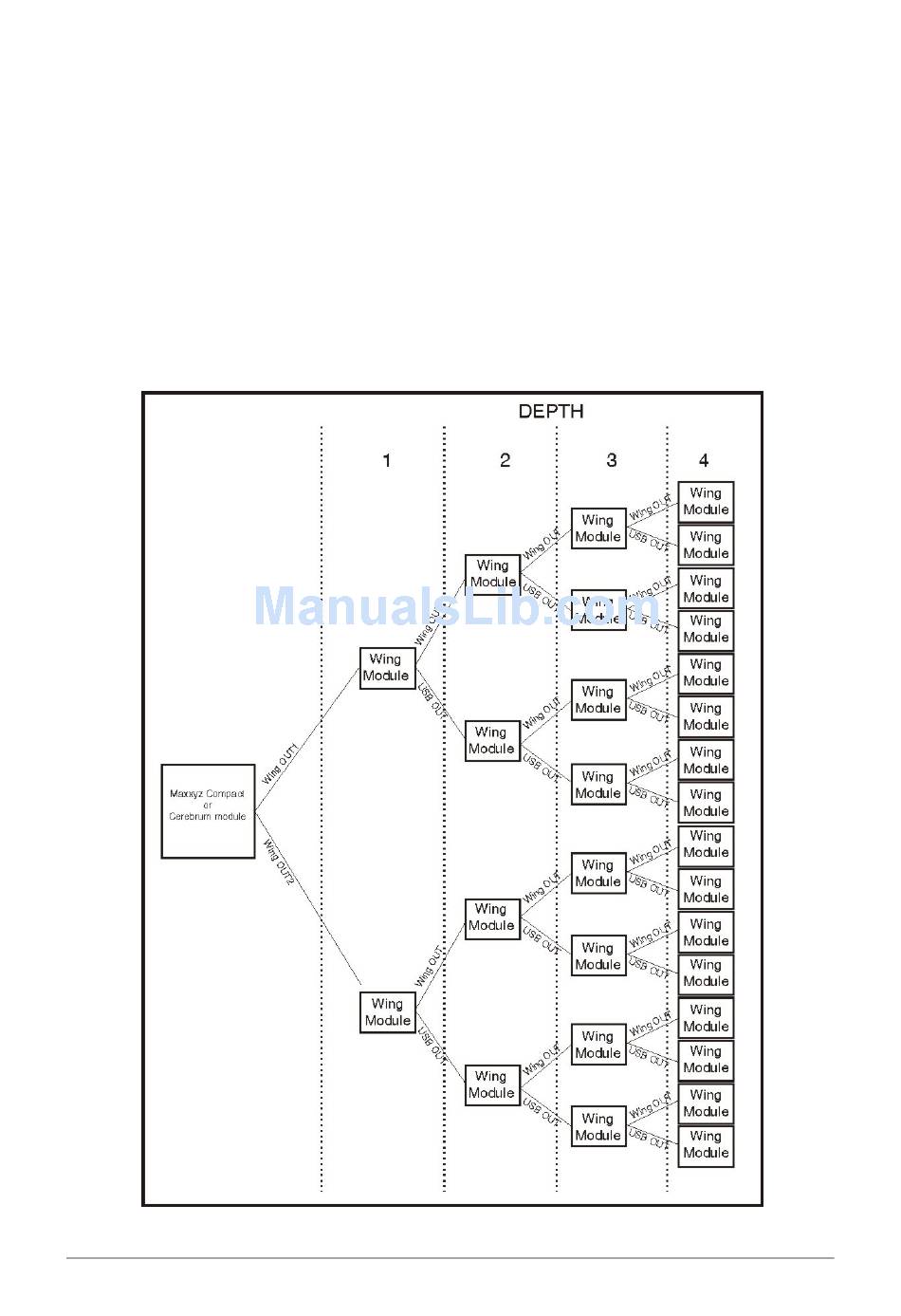

Modules can be daisy-chained to a maximum of 4 modules deep. Each module has 2
outputs to daisy-chain to the next module(s): the Wing out and USB connections.
Each Maxxyz Wing module uses some USB bandwidth (the amount depends on the
Wing type being used), therefore it is possible that some modules will not be
recognized if too many Wing modules are connected to a controller module.
Do not daisy-chain more than 4 modules deep. If the setup is 5 modules deep, the
fifth module will not be recognized.
Maxxyz Modules User Manual
13
