Installation of Outdoor Unit

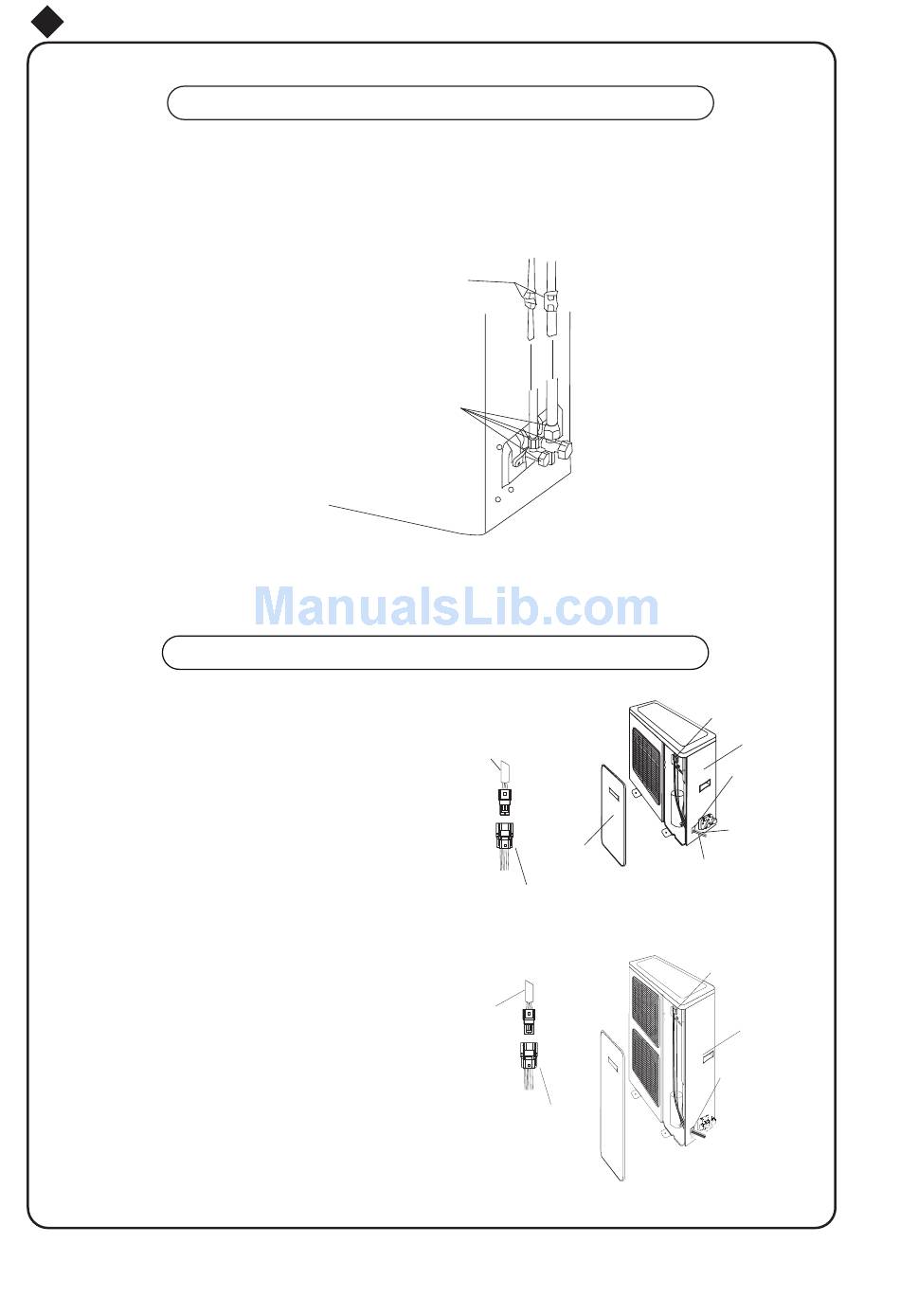

Coat soap water at the
there is air bubble at this position,it should leak.(As shown in Fig.20).Leakage detector,
if possible,can be used.
Leakage detection spot of indoor unit
Leakage detection spot of outdoor unit
1. Remove the front side plate.
2. Please refer to the electric wiring connection
of the indoor unit, then fix them with wire
clamp.(As shown in Fig.21)

Leakage detection

gap between connection pipes to see if there is any

Wiring method

24K:
Signal wire of
the indoor unit
36K 48K 60K :
Signal wire of
the indoor unit
35
Fig.20
Front side
plate
Signal wires
Signal wires
leakage.If
Terminal board
Rear side
plate
Wiring hole
Power
connecting
cable
Signal wires
Terminal board
Rear side
plate
Wiring hole
Fig.21
