Installation of Indoor Unit
4. According to the diagram for wiring,
according to the marks on wire board
for connection correspondingly,as
shown in Fig.13.
5. Place the section with sleeve of the
power connection wire into the wire
groove, then cover the electric box
cover, tighten the fixing screw, and
tighten the connection wire with clamp.
6. For the unit with signal wire, the signal
wire is connected with indoor unit via
connector. Clasp the section of signal
wire with sleeve with the wire clamp.
7. Recover the electric box cover.
Note:
When the connection wire length isn't enough, please contact with the appointed service shop for buying a dedicated
electric wire with enough length, the connection isn't allowed between the wire.
The wrong wiring connection isn't allowed, it may cause the malfunction of the components.
●
Tighten the terminal screw.
●
After tightened the screw, and slightly pull the electric wire to confirm whether it is firmed or not.
●
Wrong earth wire connection may cause electric shock.
●
The electric wire covering plate must be fixed well, and tighten the connection wire, if the wire cover-
●
ing plate isn't installed well, that may lead the dust, moisture enter in or due to the outside force
impact, it may cause fire or electric shock.
An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be
●
connected in fixed wiring.
●
Please install it after installtion of connection pipe
and drainage pipe according to Fig.14.
1.Loosen the screws and adjust the baffle position up
and down to clamp connection pipe/drainage pipe
as much as possible.
2.Tighten the screws.

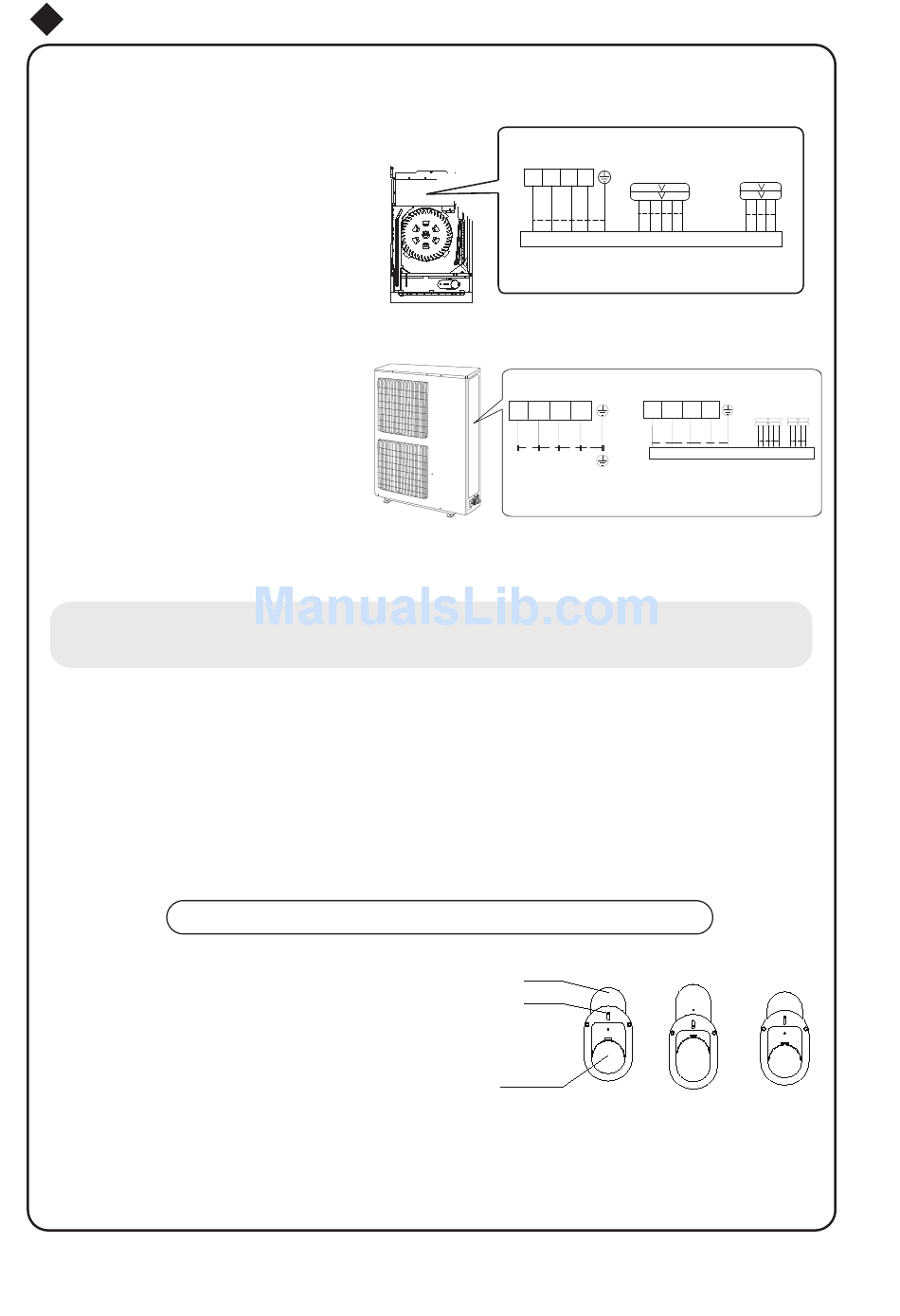

Wire connection according to this diagram:
Installation of baffle
31
XT2
X1
L1 L2 L3 N
brown black vioet blue
yellow-
green
Outdoor unit connection
XT2
L1 L2 L3
L1 L2 L3 N
brown black violet blue
brown black violet blue yellow-
green
L1 L2 L3 N
Indoor unit connection
POWER
Baffle
Screws
Hole
X2
Fig. 13
X1 X2
N
yellow-
green
Fig.14
