Installation of Indoor Unit
Before wiring and piping, please remove the
filter after opening the glass panel.

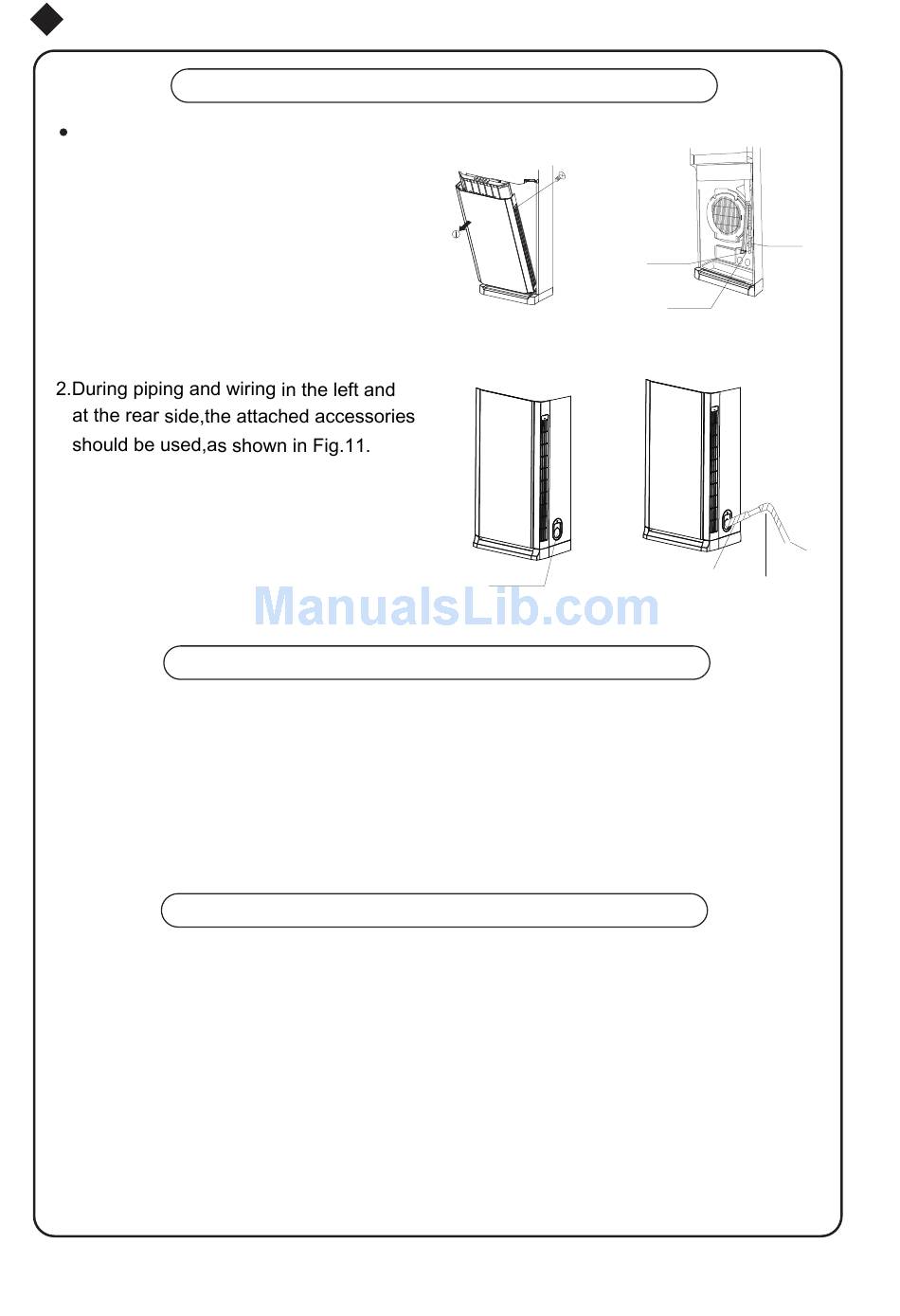

1.As shown in Fig.9,take out the decorative
strip at position 1 and then unscrew the
screws.Remove the screws fixing the filter
after opening the glass panel.At last take
out the filter along the arrow direction at
position 3.
1. Make sure drainage pipe is led outdoors (discharge side).
2. Butt-joint drainage pipe in the unit with blowing drainage pipe and fix them with
insulated tape.
3. If the drainage pipe should be wrapped with heat-preservation material (at least
9mm thickness), and then wrap it with tape to prevent air from entering into the
pipe,which will cause condensation.
4. After connecting, check if water can discharge properly or if there is any leakage.
(As shown in Fig.12)
1.Open the glass panel.
2.Unscrew the screws fixing elecrtic box cover
and make it exposed,as shown in the right
figure.
3.Pass the power connection wire through the
pipe-through hole of indoor unit.
Installation of connection pipe
Fig.11
Connection pipe
Drainage piping hole
Installation of drainage pipe
Electric connection
30
Connection
pipe
Flare-end connection
Flare-end connection
Fig.9
Drainage pipe
Drainage
pipe
Fig.10
Fig.12
Blowing
drainage pipe
Wrapping tape
