Notes for Installation

Notes for electric wiring:
1. Special circuit must be used for power supply.
2. The circuit must be installed by special serviceman.
3. Please do the wiring according to the following wiring
diagram. The screws must be tightly fastened, the
slippery screws must be changed, the tapping screw
cannot be used for electric wiring.
4. Please wiring according to the circuit diagram on the unit.
5. Adopts the cables which are attached with the unit, please
do not to change the cables optionally, and do not change
the length and ends of the cable, if need to adjust, please
contact with the local after-sales service center.
6. For the power cord which is without the plug, that cannot be
connected the plug for using.
7. The electric wiring connection of indoor and outdoor should
not be affected by the stretch and bending.
8.
is the symbol of earthing, it denotes that the yellow-green
dual wire only can be connected with the place with the symbol.
9. After the electric installation completed, make sure to use wire
clamp to fix the power cord, power supply connection cable and
signal cable tightly, and ensure that there is enough space in the
fix position and each connection terminals of the lead wires.
10.Please use about a half kilogram of force, to check whether each
lead wire is installed well. When checking the air connector, please
enclasp it, and check each lead wire of which is connecting with the
connector.
1.The air conditioner is the first class electric appliance:
2.The yellow and green dual color wire in the air conditioner is earth wire, it cannot be used for other purposes, do not cut
off it. Do not fix it by the tapping screw: otherwise, it can cause the electric shock.
3.Please do not connect the earth wire to the place:The power supply must be reliabbly earthed.
Water pipe
Gas pip e
The auxiliary electric heater is assembled near the back of evaporator in the indoor unit, it is a tubular metal electric
heating element, the power please refer to the nameplate on the unit body.

Requirements for earthing

Drainage pipe
The place where is unreliable suggested by the professional.
Other

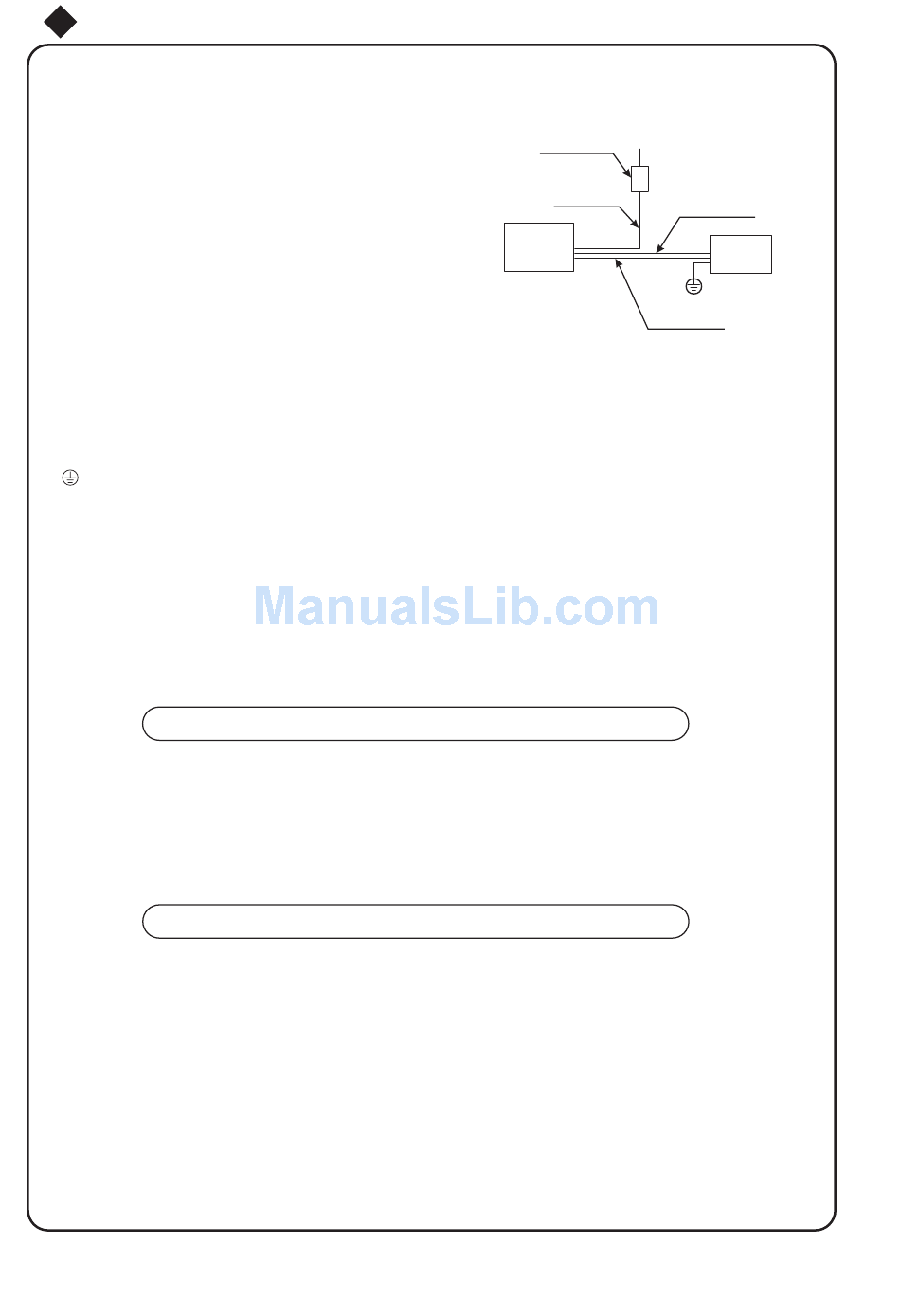

Installation diagram, please refer to the following.
Air switch
Power cable
Outdoor
unit
Note:the unit should be correctly earthed to
avoid interference to the complete unit
and ensure personal safety.
27
Power supply
Signal control cable
Indoor
unit
Earth
Power supply indoors
and outdoors
Connection cable
