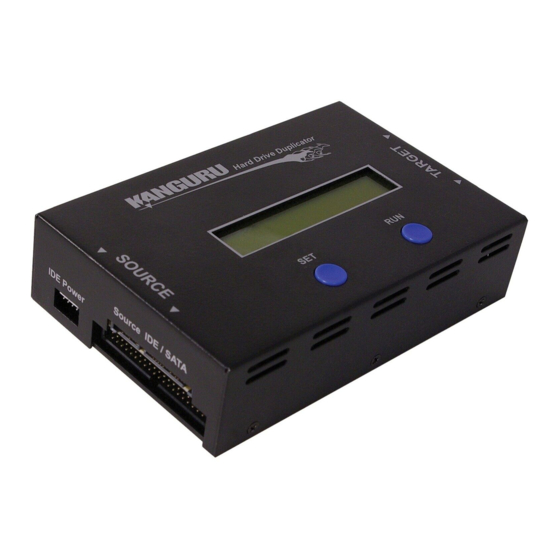

Kanguru KCLONE-1HD-MBC User Manual

Mobile clone 1hd sata hard drive duplicator
Hide thumbs

Advertisement

Quick Links

Kanguru Mobile Clone 1HD SATA
User Manual
Model no.: KCLONE-1HD-MBC
Copyright 2011, All Rights Reserved.

Advertisement

loading

  Related Manuals for Kanguru KCLONE-1HD-MBC

  Summary of Contents for Kanguru KCLONE-1HD-MBC

  • Page 1 Kanguru Mobile Clone 1HD SATA User Manual Model no.: KCLONE-1HD-MBC Copyright 2011, All Rights Reserved.
  • Page 2 International Business Machines Corporation. All other brand or product names are trademarks of their respective companies or organizations. Kanguru Solutions will not be held responsible for any illegal use of this product nor any losses incurred while using this product. The user himself is responsible for the copyright laws, and is fully responsible for any illegal actions taken.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. INTRODUCTION....................5 1.1 Package Contents..................5 1.2 Specifications.....................6 1.3 Parts and Functions ..................7 1.4 Hardware Setup ..................8 1.5 Function Diagram ..................9 2. THE USER INTERFACE ...................10 2.1 The Menus ....................11 2.1.1 The Main Menu ................11 2.1.2 The Setup Menu ................11 2.1.3 The Advanced Setup Menu ............11 3.
  • Page 4 Table of Contents 7. SETUP MENU ......................22 7.1 Set Copy .....................22 7.2 Set Compare ....................22 7.3 Button Sound ....................23 7.4 Select Image File ..................23 7.5 Delete Image File ..................23 7.6 Format Source ..................24 8. ADVANCED SETUP MENU ................25 8.1 Device Info ....................25 8.2 System Info ....................26 8.3 Set to Default .....................26 8.4 HPA Check ....................27...
  • Page 5: Introduction

    With all the features of Kanguru’s full-size hard drive duplicators, transfer rates up to 6GB/min and a small form factor, the Kanguru Mobile Clone HD Duplicator is the perfect addition to any IT technician’s toolbox.
  • Page 6: Specifications

    Specifications 1.2 Specifications Model KCLONE-1HD-MBC 2.5”/3.5” SATA Connection Interface 3.5” PATA Transfer rate Up to 6GB/min LCD Screen 20 x 2 Characters back-lit LCD Input Device 2 Push Buttons Dimensions 6.2” x 4” x 1.5” Weight 2 lbs. Power Supply...
  • Page 7: Parts And Functions

    Parts and Functions 1.3 Parts and Functions IDE data connection SATA data/power connection IDE power connection RUN button LCD Display SET button Power port SOURCE Source IDE / SATA IDE Power IDE power connection SATA data/power connection IDE data connection...
  • Page 8: Hardware Setup

    • The supplied cables are NOT standard cables like the ones found in a PC. Do not attempt to use these cables in a PC nor to use PC cables with the Kanguru Mobile Clone. Doing so may cause damage to the unit and/or drives.
  • Page 9: Function Diagram

    Function Diagram 1.5 Function Diagram...
  • Page 10: The User Interface

    The User Interface 2. THE USER INTERFACE Kanguru Solutions designed the Kanguru Mobile Clone’s menu system with the professional in mind. The menu system is fast, responsive, and easy to navigate. This means fewer key presses are needed to achieve a desired action.
  • Page 11: The Menus

    The Menus 2.1 The Menus There are three tiers to the Mobile Clone’s user interface: Main menu, Setup menu and Advanced Setup menu 2.1.1 The Main Menu The Main menu contains the main duplication operations: BRIEF, RESIZE, FULL, ERASE, WIPE, VERIFY and LOAD.
  • Page 12: Duplication Modes

    Duplication Modes 3. DUPLICATION MODES The Kanguru Mobile Clone can duplicate hard drives in one of three ways: BRIEF mode, RESIZE mode or FULL mode. After duplication has been completed you can configure the duplicator to automatically compare the date on the Source drive with the data on the Target drives to ensure that the all data was copied successfully.
  • Page 13: Defining Copy And/Or Compare

    Defining Copy and/or Compare 4. DEFINING COPY AND/OR COMPARE Before performing a duplication, take a moment to define the SET COPY and SET COMPARE options under the SETUP menu. These options will tell the duplicator how the FULL and BRIEF modes will operate.
  • Page 14: Duplication

    Duplication / Duplicating From a Master HDD 5. DUPLICATION The KanguruClone HDD Duplicator can operate in either one of two duplication methods: • With a Master HDD as the source • With a Storage Center as the source Both methods are described in the following sections. 5.1 Duplicating From a Master HDD Using a Master HDD as the Source is the simplest and most convenient way to perform the duplication process.
  • Page 15: Duplicating From A Storage Center

    Duplicating From a Storage Center 5.2 Duplicating From a Storage Center The Kanguru Mobile Clone hard drive duplicator allows you to turn a standard hard drive into a Storage Center. You can load images of your Master HDDs directly to the Storage Center providing you with a convenient way to store common duplication jobs.
  • Page 16: Duplicating An Image File Stored On A Storage Center

    Duplicating From a Storage Center 3. Tap the ‘RUN’ button. The duplicator will initialize the disks and then ask you to input a name for the image file. Please Input >[000] SEL IMG FILE a) The file name consists of three digits. The digit furthest to the right will be blinking, indicating that it is currently selected.
  • Page 17 Duplicating From a Storage Center 3. Tap the ‘RUN’ button to select an image file. a) The file name consists of three digits. The digit furthest to the right will be blinking, indicating that it is currently selected. Tap the ‘RUN’ button to increase the digit by one. b) Tap the ‘SET’...
  • Page 18: Other Operations

    Other Operations / Erase 6. OTHER OPERATIONS Besides the Copy and Compare modes, the Kanguru Mobile Clone Duplicator has several additional operations that are incredibly useful, including: ERASE, WIPE, VERIFY and LOAD. 6.1 Erase ERASE deletes all information on any hard drive connected to the side of the duplicator labaled “TARGET”.
  • Page 19: Wipe

    Wipe 6.2 Wipe Although the data is removed through the Erase operation, the data may still be retrievable with the right tools. The WIPE feature allows you to perform a disk wipe operation, ensuring that the hard drive is completely erased and that the data is unrecoverable. Unlike an Erase, which writes zeros to every sector on the hard drive, a Wipe is a four step process that ensures that data is unrecoverable.
  • Page 20: Verify

    Verify 6.3 Verify VERIFY will check that all sectors are readable on the drive connected to the side of the duplicator labaled “TARGET”. If a hard drive fails duplication, you should run the Verify feature to ensure that the drive is healthy. To verify your hard drives for duplication: 1.
  • Page 21: Load

    Load 6.4 Load LOAD allows you to store an image of a hard drive to a Storage Center. A Storage Center is a hard drive that has been formatted to store hard drive images. The Storage Center allows you to quickly and conveniently access common duplication projects. For information on formatting a hard drive as a Storage Center see section 7.6 Format Source on page 24.
  • Page 22: Setup Menu

    Setup Menu / Set Copy / Set Compare 7. SETUP MENU To enter the SETUP menu, from the Main menu hold the ‘SET’ button. Once you have entered the SETUP menu: • Tap the ‘SET’ button to navigate the different menu options. • Tap the ‘RUN’...
  • Page 23: Button Sound

    Button Sound / Select Image File / Delete Image File 7.3 Button Sound The BTN. SOUND option allows you to enable or disable the audible tone that sounds when you tap or hold a button. Tap the ‘RUN’ button to change this option’s setting. • [ ‫٭‬...
  • Page 24: Format Source

    Format Source 7.6 Format Source The FORMAT SOURCE operation allows you to format a hard drive as a Storage Center. Storage Centers can be used to store hard drive images for convenient access to your most commonly used Source files. For more information on using a Storage Center see section 5.2 Duplicating From a Storage Center on page 15.
  • Page 25: Advanced Setup Menu

    Advanced Setup Menu / Device Info 8. ADVANCED SETUP MENU The ADVANCED SETUP menu provides you with extra options and operations for the advanced user. The ADVANCED SETUP menu can be accessed through the SETUP menu. From the SETUP menu, tap the ‘SET’ button to navigate to the ADVANCED SETUP option and then tap the ‘RUN’ button to enter the ADVANCED SETUP menu.
  • Page 26: System Info

    1. From the ADVANCED SETUP menu, tap the ‘SET’ button to navigate to the SYSTEM INFO function. 2. Tap the ‘RUN’ button to begin viewing the system’s information: KANGURU HDD COPIER VER: 2.26 BLD:1011 3. Tap the ‘SET’ button to exit back to the ADVANCED SETUP menu.
  • Page 27: Hpa Check

    HPA Check / No Capacity Check / Max UDMA Mode 8.4 HPA Check The Host Protected Area (HPA), sometimes referred to as the Hidden Protected Area, is a partition on the hard drive that is not normally visible to an operating system. Tap the ‘RUN’ button to change this option’s setting.
  • Page 28: Skip Read Error

    Skip Read Error / Load Full Image / Total Copy Count 8.7 Skip Read Error The SKIP READ ERROR option allows you to enable or disable error skipping during FULL, BRIEF and RESIZE modes. Tap the ‘RUN’ button to change this option. • [ ] –...
  • Page 29: Update Firmware

    Update Firmware 8.10 Update Firmware The UPDATE FIRMWARE function allows you to upgrade your Kanguru Hard Drive Duplicator to the latest firmware version. Warning! Do not attempt to update your duplicator’s firmware unless specifically instructed to do so by a Kanguru Technician.
  • Page 30: Error Code List

    Error Code List / FAQ 9. ERROR CODE LIST The Error Code List can give you some information to help you understand any problems that occur during duplication. Error Code Problem Source read error Target read error Target write error Timeout error Compare error Skip read error...
  • Page 31: Troubleshooting

    Try to identify the faulty hard drive unstable or operates very that is affecting the other hard and replace as needed. slowly. drives, causing slow operation. Only use the cables provided The cables do not meet the by Kanguru Solutions with the UDMA standards. KanguruClone.
  • Page 32: Warranty Information

    This product carries a 1 year* limited warranty on the power supply, controller, and all internal components. The warranty does not cover any IDE, SATA, or Power cables. Kanguru Solutions is not responsible for any damages incurred in the shipping process. Any claims for loss or damage must be made to carrier directly.
  • Page 33: Technical Support

    “tracking” feature to verify “proof of delivery.” The customer is responsible for shipping charges when returning a product. Shipping back to the customer is covered by Kanguru Solutions during the first year of purchase. After 1 year of purchase the customer is responsible for shipping both ways.
  • Page 34 Kanguru Solutions 1360 Main Street Millis, MA 02054 www.kanguru.com 11.11.11 v.1 © 2011 Kanguru Solutions Legal terms and conditions available at www.kanguru.com. Please review and agree before use. Thank you.
