Kanguru Autoloader 100
100 Target CD Duplicator
Kanguru Autoloader 100
USER'S GUIDE
Copyright 2003, All Rights Reserved.
This manual applies to v1.16 or later versions of the Kanguru Autoloader 100
1

Advertisement

loading

  Related Manuals for Kanguru Autoloader 100

  Summary of Contents for Kanguru Autoloader 100

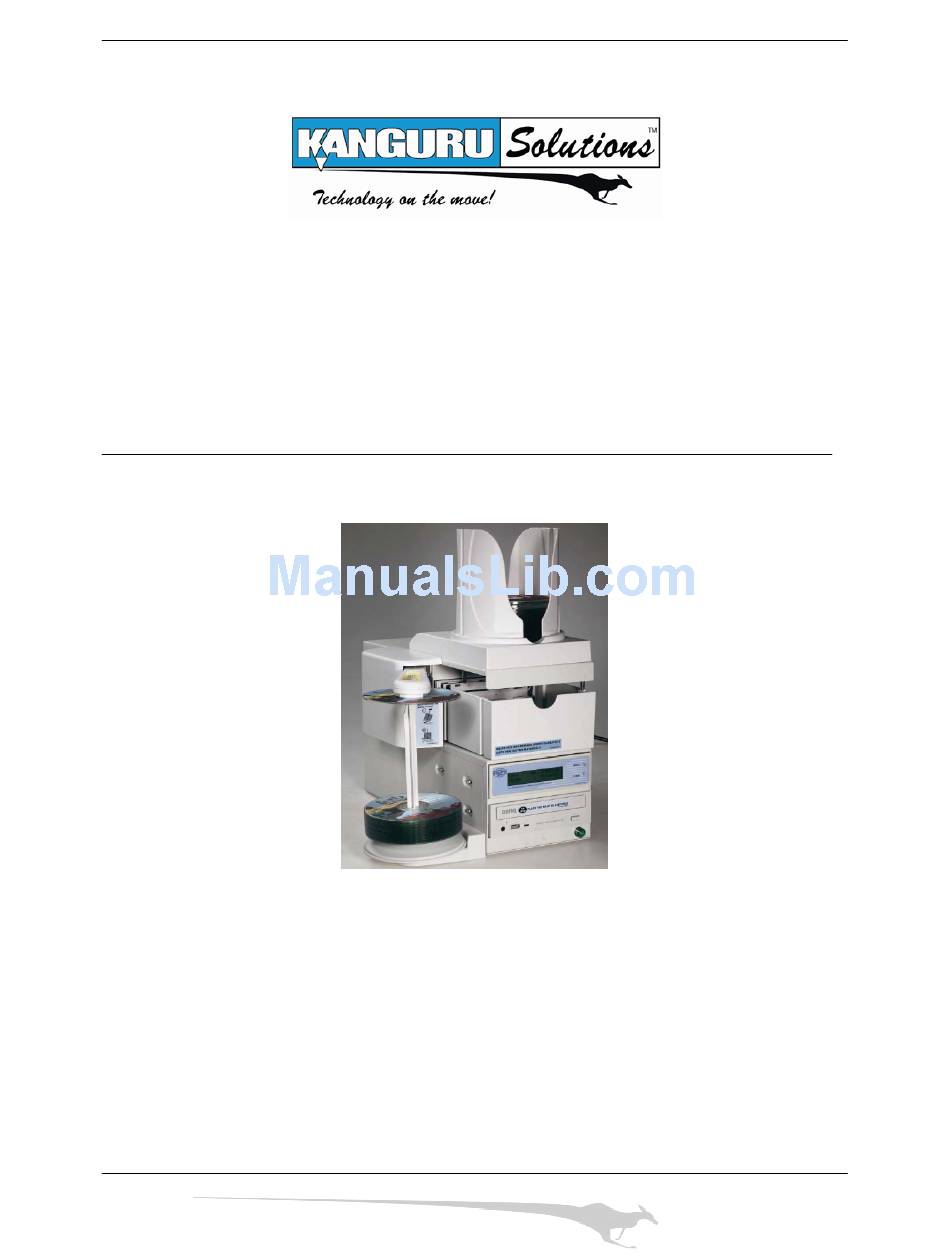

  • Page 1 Kanguru Autoloader 100 100 Target CD Duplicator Kanguru Autoloader 100 USER’S GUIDE Copyright 2003, All Rights Reserved. This manual applies to v1.16 or later versions of the Kanguru Autoloader 100...
  • Page 2 Kanguru Autoloader 100 Please be aware of the following points before using the Kanguru Autoloader 100 Copyright© 2003, Kanguru Solutions. All rights reserved. All other brand or product names are trademarks of their respective companies or organizations. Kanguru Solutions will not be held responsible for any illegal use of this product nor any losses incurred while using this product.
  • Page 3: Table Of Contents

    Kanguru Autoloader 100 Table of Contents: 1. Introduction 2. Reminders 3. Installation and Set Up 3.1 Inspecting the Shipment for Damage 3.2 Unpacking and Verifying Shipment Contents 3.3 Setting Up 3.4 Loading Discs 3.5 Unloading Accepted Discs 3.6 Unloading Rejected Discs 4.
  • Page 4: Introduction

    If there’s an error in any disc, the robotic arm will pick it up and drop it in the Reject bin. Low cost and high performance, the Kanguru Autoloader is the best choice to fulfill your duplication requirements.
  • Page 5: Setting Up

    Kanguru Autoloader 100 3.3 Setting Up Please use the following instructions to setup your Kanguru Autoloader: 1. Remove all parts from the carton. 3. Attach the sides of the disc hopper by snapping the two sides into place. 4. Attach the base plate to the left side.
  • Page 6: Loading Discs

    Kanguru Autoloader 100 3.4 Loading Discs To properly load the disc hopper, place the first disc level on the two white wheels. You can then drop any additional discs into the hopper once the first disc is stable. The hopper can initially hold up to 100 discs, but you can add more discs while the system is running.
  • Page 7: Main Functions

    Kanguru Autoloader 100 4. Main Functions 4.1 COPY This function will start the duplication process if a master CD and blank CDs are present. Follow the LCD screen shots below to begin. 1. COPY 1. COPY READ MASTER DISC [COPY]...
  • Page 8: Emulate

    Kanguru Autoloader 100 [EMULATE] PROCESSING [EMULATE] PROCESSING >> [EMULATE] EMULATE OK 4.3 Erase This function will erase CDRWs if they have previously been written to. All CDs must be blank in order to begin the duplication process. Follow the LCD screen shots below to begin.
  • Page 9: Test

    Kanguru Autoloader 100 [AUTOLOADER] 4.5 Test This function will replicate the autoloader’s mechanics. Follow the LCD screen shots below to begin. 5. TEST [TEST] PROCESSING 4.6 Park This function will move the robotic arm out of harms way. Use the Park function if you need to move the autoloader.
  • Page 10: Frequently Asked Questions

    6.2 Frequently Asked Questions Q1. How many discs can the autoloader copy per hour? A1. The Kanguru Autoloader can copy about 20 full discs per hour. Q2. Why should the unit’s shipping carton be saved? A2. In the event that your duplicator needs to be serviced, you will need to send the unit back in its original packaging, otherwise your warranty may become void.
  • Page 11: Specifications

    Claims for shipping errors should be reported to Kanguru Solutions within three (3) working days of receipt of merchandise. All repairs will be made by technicians at Kanguru Solutions. The unit must be shipped back in its original shipping carton to ensure warranty coverage. An RMA# must be assigned to your unit before it is shipped to us.
